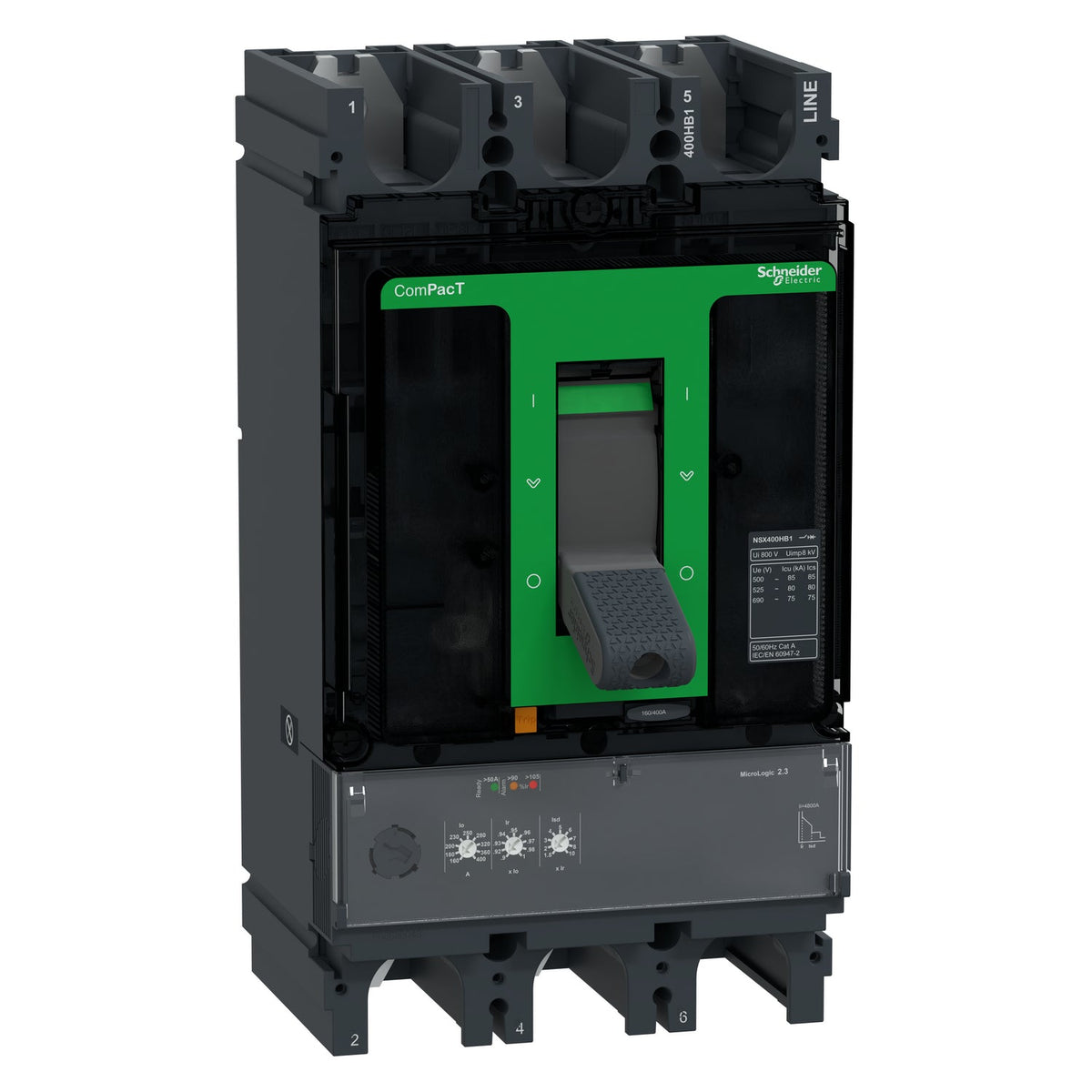

Schneider Electric C40V32D400 ComPacT NSX400HB1 3P 400 A 75 kA MicroLogic 2.3 Moulded Case Circuit Breaker

ComPacT NSX400HB1 3P 400 A, 75 kA Icu, MicroLogic 2.3 trip unit.

Rated current
400 A
Rated operational voltage
690 V AC
Description

About the NSX400HB1

The C40V32D400 is a Schneider Electric ComPacT NSX400HB1 3-pole moulded case circuit breaker rated 400 A at 40 °C, with a 75 kA breaking capacity (Icu) at 660/690 V AC. It uses the MicroLogic 2.3 trip unit, which provides an adjustable long-time overload stage (Ir 160…400 A), a fixed-delay short-time stage and a fixed instantaneous stage at 4800 A, and is rated for isolation up to 690 V AC.

Certifications & Standards

  • EN/IEC 60947-2

Selection Notes

The L-So-I MicroLogic 2.3 combines adjustable long-time overload protection (Ir 160…400 A) with a fixed-delay short-time stage and a fixed instantaneous stage at 4800 A. Pick this variant over the 5.3 E / 6.3 E versions when the board needs straightforward, non-communicating overcurrent protection without metering or zone-selective interlocking. At 75 kA Icu at 660/690 V AC, the HB1 frame targets 690 V applications needing 75 kA at 660/690 V.

Specification

Full specification

85 values · Last verified 30 Oct 2026

Main 20

Range ComPacT
Product name ComPacT NSX
Device short name NSX400HB1
Product or component type Circuit breaker
Device application Distribution
Poles description 3P
Protected poles description 3D
[In] rated current 400 A at 40 °C
[Ue] rated operational voltage 690 V AC 50/60 Hz
Network type AC
Network frequency 50/60 Hz
Suitability for isolation Yes conforming to EN/IEC 60947-2
Utilisation category Category A
Breaking capacity 85 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2, 80 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2, 75 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
Breaking capacity code HB1 75 kA 690 V AC
Trip unit name MicroLogic 2.3
Trip unit technology Electronic
Trip unit protection functions LSoI
Control type Toggle
Circuit breaker mounting mode Fixed

Complementary 31

[Ui] rated insulation voltage 800 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage 8 kV
[Ics] rated service breaking capacity 85 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2, 80 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2, 75 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
Mechanical durability 15000 cycles
Electrical durability 12000 cycles at 440 V In/2, 6000 cycles at 440 V In, 6000 cycles at 690 V In/2, 3000 cycles at 690 V In
Power dissipation per pole 19.2 W
Mounting support Backplate
Mounting position Horizontal and vertical, Flat on the back
Upside connection Front
Downside connection Front
Connection pitch 45 mm
Protection type L : for overload protection (long time), So : for short time short-circuit protection with fixed delay, I : for instantaneous short-circuit protection
Trip unit rating 400 A at 40 °C
Long-time pick-up adjustment type Ir (thermal protection) Adjustable 9 settings
[Ir] long-time protection pick-up adjustment range 160…400 A
Long-time protection delay adjustment type tr Fixed
[tr] long-time delay adjustment range 400 s at 1.5 x Ir, 16 s at 6 x Ir, 11 s at 7.2 x Ir
Thermal memory 20 minutes before and after tripping
Short-time protection pick-up adjustment type Isd Adjustable 9 settings
[Isd] Short-time protection pick-up adjustment range 1.5...10 x Ir
Short-time protection delay adjustment type tsd Fixed
Instantaneous protection pick-up adjustment type Ii Fixed
[Ii] instantaneous protection pick-up adjustment range 4800 A
Earth-leakage protection Without
Zone selective interlocking ZSI Without
Number of slots 6 slot(s)
Local signalling Flashing LED (green) for ready to operate, LED 105 % Ir (red) for overload, LED 90 % Ir (orange) for overload
Width (W) 140 mm
Height (H) 255 mm
Depth (D) 110 mm
Net weight 6.05 kg

Environment 10

Standards EN/IEC 60947-2
Overvoltage category III
Electrical shock protection class Class II on front face
Pollution degree 3 conforming to IEC 60664-1
IP degree of protection IP40 conforming to IEC 60529
IK degree of protection IK07 conforming to IEC 62262
Ambient air temperature for operation -25…70 °C
Ambient air temperature for storage -50…85 °C
Relative humidity 0…95 %
Operating altitude 0...2000 m without derating, 2000 m...5000 m with derating
Show all 85 specifications ↓ Show less ↑24 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number C40V32D400
Type designation NSX400HB1
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 16

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 15.000 cm
Package 1 Width 15.500 cm
Package 1 Length 29.000 cm
Package 1 Weight 5.681 kg
Unit Type of Package 2 S04
Number of Units in Package 2 2
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 12.061 kg
Shipping weight 6.05 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
