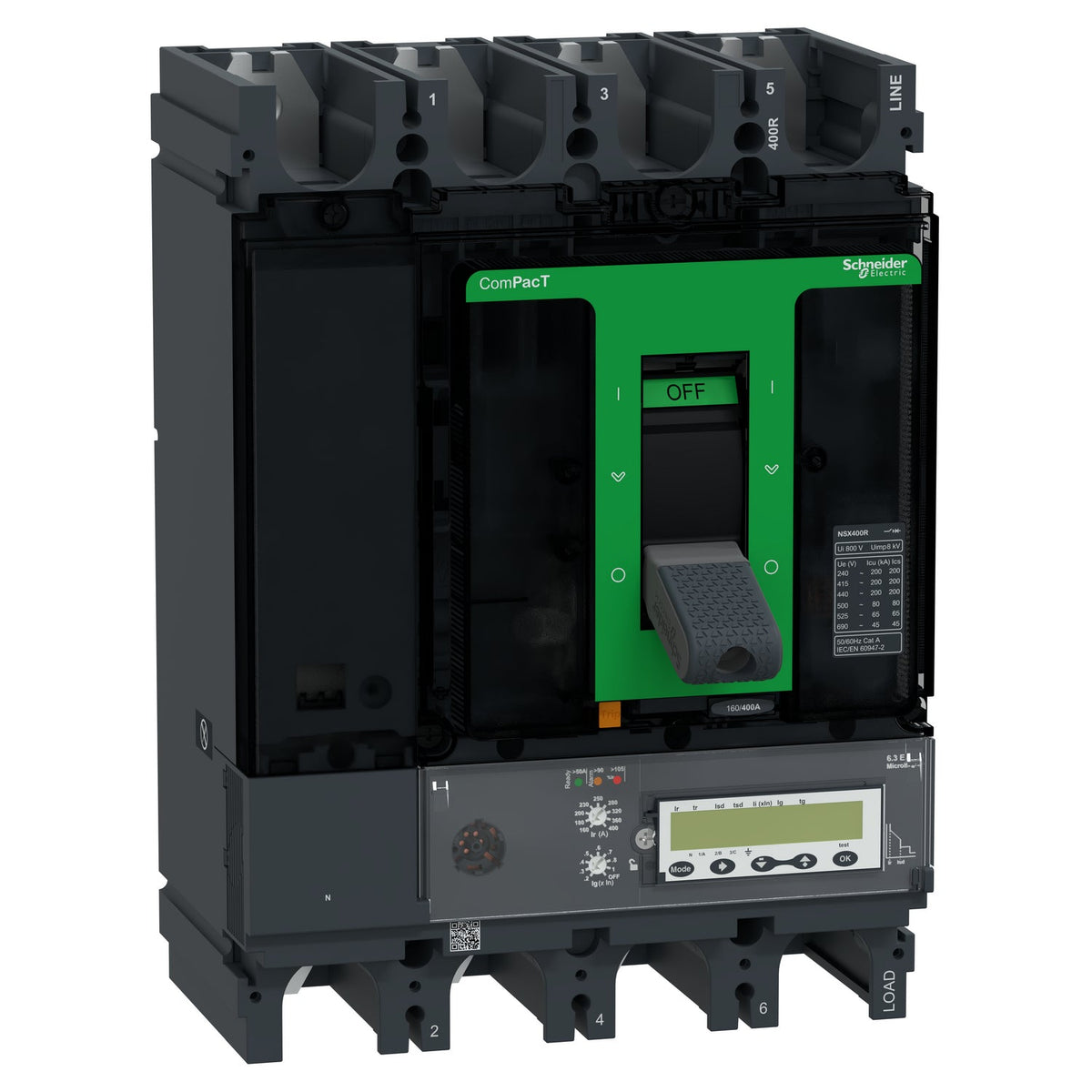

Schneider Electric C40R46E400 ComPacT NSX400R 4P 400 A 200 kA MicroLogic 6.3 E Moulded Case Circuit Breaker

ComPacT NSX400R 4P 400 A, 200 kA Icu, MicroLogic 6.3 E trip unit.

Rated current
400 A
Rated operational voltage
690 V AC
Display
LCD display
Description

About the NSX400R

The C40R46E400 is a Schneider Electric ComPacT NSX400R 4-pole moulded case circuit breaker rated 400 A at 40 °C, with a 200 kA breaking capacity (Icu) at 380/415 V AC. It uses the MicroLogic 6.3 E trip unit, which provides adjustable long-time, short-time, instantaneous and switchable ground-fault protection plus an integrated energy meter, and is rated for isolation up to 690 V AC.

Certifications & Standards

  • EN/IEC 60947-2

Selection Notes

The L-S-I-G MicroLogic 6.3 E adds adjustable, switch-off-capable ground-fault protection to the 5.3 E feature set. Specify this variant instead of the 5.3 E when the circuit needs 4th-pole or source ground-fault protection, for example on a TN-S or IT-derived board; otherwise the 5.3 E covers the same long-time/short-time/instantaneous stages. At 200 kA Icu at 380/415 V AC, the R frame is the 200 kA 400 A ComPacT NSX option for boards needing 200 kA at 380/415 V.

Specification

Full specification

89 values · Last verified 30 Oct 2026

Main 21

Range ComPacT
Product name ComPacT NSX
Device short name NSX400R
Product or component type Circuit breaker
Device application Distribution
Poles description 4P
Protected poles description 4D, 3D + OSN, 3D + N/2, 3D
Neutral position Left
[In] rated current 400 A at 40 °C
[Ue] rated operational voltage 690 V AC 50/60 Hz
Network type AC
Network frequency 50/60 Hz
Suitability for isolation Yes conforming to EN/IEC 60947-2
Utilisation category Category A
Breaking capacity 200 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, 200 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 200 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 80 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2, 65 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2, 45 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
Breaking capacity code R 200 kA 415 V AC
Trip unit name MicroLogic 6.3 E
Trip unit technology Electronic
Trip unit protection functions LSIG
Control type Toggle
Circuit breaker mounting mode Fixed

Complementary 40

[Ui] rated insulation voltage 800 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage 8 kV
[Ics] rated service breaking capacity 200 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, 200 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 200 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2, 80 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2, 65 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2, 45 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
Mechanical durability 15000 cycles
Electrical durability 12000 cycles at 440 V In/2, 6000 cycles at 440 V In, 6000 cycles at 690 V In/2, 3000 cycles at 690 V In
Power dissipation per pole 19.2 W
Mounting support Backplate
Mounting position Horizontal and vertical, Flat on the back
Upside connection Front
Downside connection Front
Connection pitch 45 mm
Protection type L : for overload protection (long time), S : for short time short-circuit protection, I : for instantaneous short-circuit protection, G : for ground fault protection
Trip unit rating 400 A at 40 °C
Long-time pick-up adjustment type Ir (thermal protection) Adjustable 9 settings
[Ir] long-time protection pick-up adjustment range 160...400 A
Long-time protection delay adjustment type tr Adjustable
[tr] long-time delay adjustment range 15…400 s at 1.5 x Ir, 0.5…16 s at 6 x Ir, 0.35…11 s at 7.2 x Ir
Neutral protection setting 0.5 x Ir (3D + N/2), 1 x Ir (4D), 1.6 x Ir (3D + OSN), No protection (3D)
Thermal memory 20 minutes before and after tripping
Short-time protection pick-up adjustment type Isd Adjustable
[Isd] Short-time protection pick-up adjustment range 1.5...10 x Ir
Short-time protection delay adjustment type tsd Adjustable 5 settings
[tsd] short-time delay adjustment range 0…0.4 s I²t=off, 0.1…0.4 s I²t=on
Instantaneous protection pick-up adjustment type Ii Adjustable
[Ii] instantaneous protection pick-up adjustment range 1.5...12 x In
Ground-fault protection pick-up adjustment type Ig Adjustable 9 settings
[Ig] ground-fault pick-up adjustment range 0.4...1 x In for In = 40 A, 0.2...1 x In for In > 40 A, Ig enable on/off
Ground-fault protection time delay adjustment type tg Adjustable 5 settings
[tg] Ground-fault time delay adjustment range 0…0.4 s I²t=off, 0.1…0.4 s I²t=on
Earth-leakage protection Without
Zone selective interlocking ZSI With
Number of slots 6 slot(s)
Local signalling Flashing LED (green) for ready to operate, LED 105 % Ir (red) for overload, LED 90 % Ir (orange) for overload
Display type LCD display
Type of measurement Energy meter
Communication of data Protection and alarm settings, Instantaneous and demand values, Energy metering, Demand current and power, Maximeters/minimeters, Power quality, Time-stamped histories and event tables, Maintenance indicators
Width (W) 185 mm
Height (H) 255 mm
Depth (D) 110 mm
Net weight 7.9 kg

Environment 10

Standards EN/IEC 60947-2
Overvoltage category III
Electrical shock protection class Class II on front face
Pollution degree 3 conforming to IEC 60664-1
IP degree of protection IP40 conforming to IEC 60529
IK degree of protection IK07 conforming to IEC 62262
Ambient air temperature for operation -25…70 °C
Ambient air temperature for storage -40…85 °C
Relative humidity 0…95 %
Operating altitude 0...2000 m without derating, 2000 m...5000 m with derating
Show all 89 specifications ↓ Show less ↑18 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number C40R46E400
Type designation NSX400R
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 10

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 15.2 cm
Package 1 Width 20.3 cm
Package 1 Length 29.2 cm
Package 1 Weight 8.06 kg
Shipping weight 7.9 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
