Schneider Electric C40R35E400 ComPacT NSX400R 3P 400 A 200 kA MicroLogic 5.3 E Moulded Case Circuit Breaker

% $-2,852.55

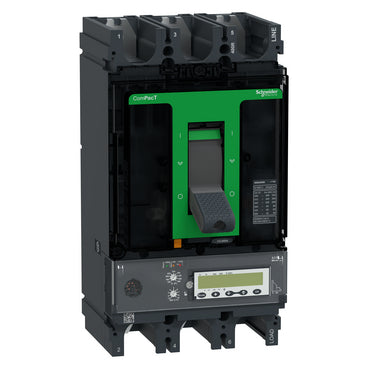

Schneider Electric C40R35E400 ComPacT NSX400R 400A 200kA moulded case circuit breaker
Schneider Electric C40R35E400 ComPacT NSX400R 400A 200kA moulded case circuit breaker

Schneider Electric C40R35E400 ComPacT NSX400R 3P 400 A 200 kA MicroLogic 5.3 E Moulded Case Circuit Breaker

Brand: Schneider Electric
Reference No: C40R35E400
Catalog No: C40R35E400
Tariff Code (HS): 85362090
Rated Current: 400 A
Breaking Type: MicroLogic 5.3 E
Rated Voltage: 690 V
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$2,852.55

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The C40R35E400 is a Schneider Electric ComPacT NSX400R 3-pole moulded case circuit breaker rated 400 A at 40 °C, with a 200 kA breaking capacity (Icu) at 380/415 V AC. It uses the MicroLogic 5.3 E trip unit, which provides adjustable long-time, short-time and instantaneous protection plus an integrated energy meter, and is rated for isolation up to 690 V AC.

Technical Specifications

Reference C40R35E400
Brand Schneider Electric
Range ComPacT
Series NSX400R
Poles 3P
Rated current In 400 A at 40 °C
Rated operational voltage Ue 690 V AC, 50/60 Hz
Rated insulation voltage Ui 800 V AC
Rated impulse withstand voltage Uimp 8 kV
Breaking capacity Icu 200 kA at 220/240 V AC, 200 kA at 380/415 V AC, 200 kA at 440 V AC, 80 kA at 500 V AC, 65 kA at 525 V AC, 45 kA at 660/690 V AC
Service breaking capacity Ics 200 kA at 220/240 V AC, 200 kA at 380/415 V AC, 200 kA at 440 V AC, 80 kA at 500 V AC, 65 kA at 525 V AC, 45 kA at 660/690 V AC
Utilisation category Category A
Suitability for isolation Yes, conforming to EN/IEC 60947-2
Trip unit MicroLogic 5.3 E (Electronic)
Protection functions LSI
Protection settings Ir (long-time, adjustable) 160…400 A; Isd (short-time, adjustable) 1.5–10×Ir with tsd 0–0.4 s (I²t on/off); Ii (instantaneous, adjustable) 1.5–12×In.
Earth-leakage protection Without
Zone selective interlocking (ZSI) With
Metering & display LCD display, integrated energy meter, protection/alarm settings and event history
Control / mounting Toggle handle, fixed mounting on backplate, front/front connection
Dimensions (W×H×D) 140 mm × 255 mm × 110 mm
Net weight 6.05 kg
IP / IK degree IP40 / IK07
Ambient temperature (operation / storage) -25…70 °C / -40…85 °C

Certifications & Standards

  • EN/IEC 60947-2

Selection Notes

The L-S-I MicroLogic 5.3 E adds an adjustable short-time delay and an adjustable instantaneous stage to the long-time overload function, plus an LCD display with an integrated energy meter. Choose it over the 2.3 variant when the switchboard needs metering data or zone-selective interlocking (ZSI) for coordinated tripping with downstream devices. At 200 kA Icu at 380/415 V AC, the R frame is the 200 kA 400 A ComPacT NSX option for boards needing 200 kA at 380/415 V.

Technical Details

Short Description
ComPacT NSX400R 3P 400 A, 200 kA Icu, MicroLogic 5.3 E trip unit.
Rated Current (Ampere)
400 A
Rated Voltage (VAC)
690 V
Mounting Type
Fixed, backplate
Protection Type
IP40
Catalog No
C40R35E400
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
NSX400R
Tariff Code
85362090
