Part number
C40H45E400
Model no
NSX400H
$1,620.47 On request Dispatch — · From TürkiyeGet a Quote

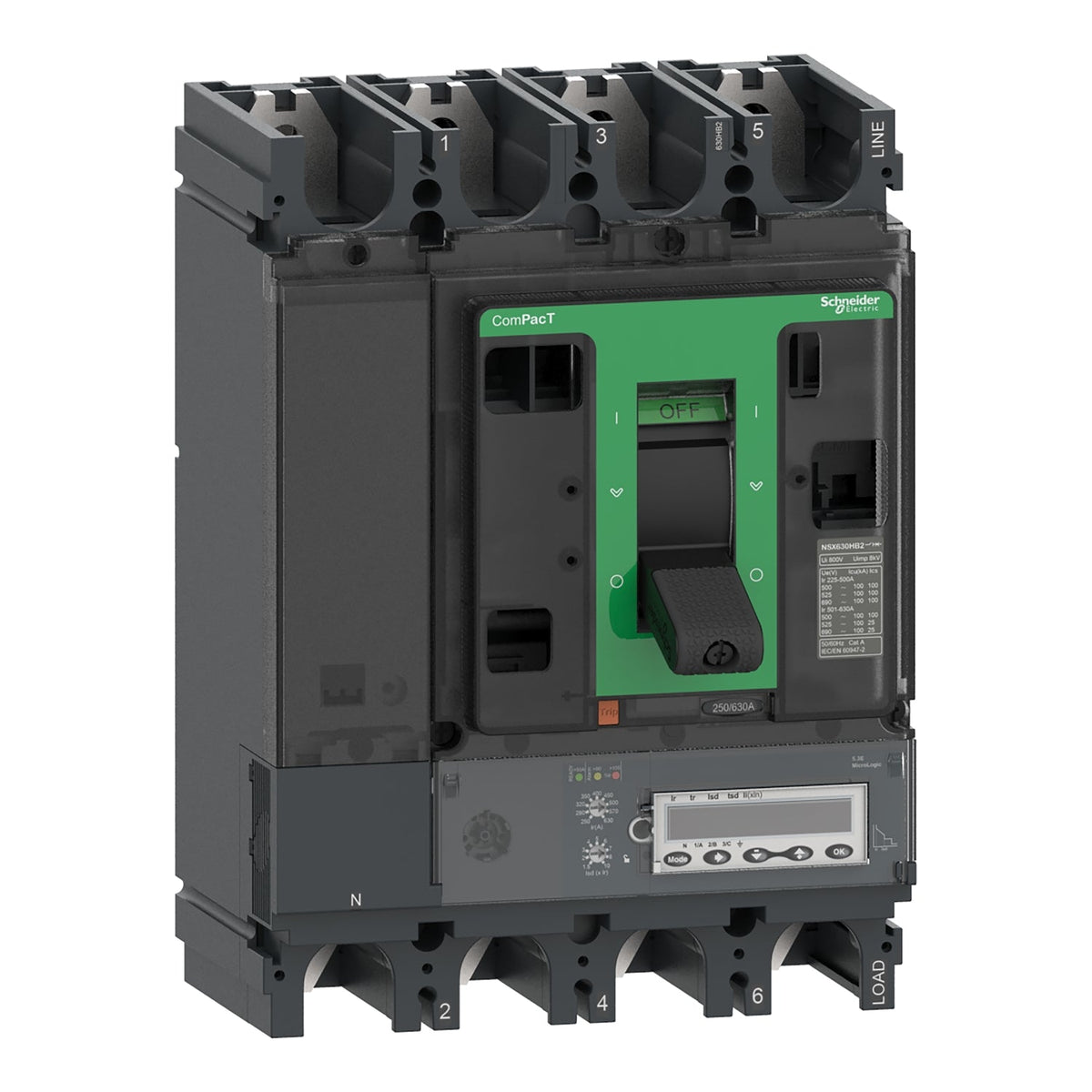

Schneider Electric C40H45E400 ComPacT NSX400H 4P 400 A 70 kA MicroLogic 5.3 E Moulded Case Circuit Breaker

ComPacT NSX400H 4P 400 A, 70 kA Icu, MicroLogic 5.3 E trip unit.

Rated current
400 A
Rated operational voltage
690 V AC
Communication
Modbus-ready metering (MicroLogic E trip unit)
Display
LCD display
Description

About the NSX400H

The C40H45E400 is a Schneider Electric ComPacT NSX400H 4-pole moulded case circuit breaker rated 400 A at 40 °C, with a 70 kA breaking capacity (Icu) at 380/415 V AC. It uses the MicroLogic 5.3 E trip unit, which provides adjustable long-time, short-time and instantaneous protection plus an integrated energy meter, and is rated for isolation up to 690 V AC.

Certifications & Standards

  • CCC
  • EAC
  • Marine
  • EN/IEC 60947

Selection Notes

The L-S-I MicroLogic 5.3 E adds an adjustable short-time delay and an adjustable instantaneous stage to the long-time overload function, plus an LCD display with an integrated energy meter. Choose it over the 2.3 variant when the switchboard needs metering data or zone-selective interlocking (ZSI) for coordinated tripping with downstream devices. At 70 kA Icu at 380/415 V AC, the H frame is the 70 kA/415 V workhorse of the 400 A ComPacT NSX range.

Specification

Full specification

79 values · Last verified 30 Oct 2026

Main 21

Range ComPacT
Product name ComPacT NSX
Device short name NSX400H
Breaking capacity code H
Product or component type Circuit breaker
Device application Distribution
Poles description 4P
Neutral position Left
Neutral protection setting No protection, 0.5 x Ir, 1 x Ir
Protected poles description 4D
Network type AC
Network frequency 50/60 Hz
Suitability for isolation Yes conforming to EN/IEC 60947-2
Utilisation category Category A
[In] rated current 400 A at 40 °C
[Ue] rated operational voltage 690 V AC 50/60 Hz
Trip unit name MicroLogic 5.3 E
Trip unit type Electronic
Trip unit rating 400 A at 40 °C
Control type Toggle, Rotary handle, Extended rotary handle
Mounting mode Fixed

Complementary 32

Long time delay adjustment type Adjustable
[Ui] rated insulation voltage 800 V AC 50/60 Hz conforming to EN/IEC 60947-2
[Uimp] rated impulse withstand voltage 8 kV
[Icu] rated ultimate short-circuit breaking capacity 100 kA Icu at 220/240 V AC 50/60 Hz conforming to EN/IEC 60947-2, 70 kA Icu at 380/415 V AC 50/60 Hz conforming to EN/IEC 60947-2, 65 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2, 50 kA Icu at 500 V AC 50/60 Hz conforming to EN/IEC 60947-2, 35 kA Icu at 525 V AC 50/60 Hz conforming to EN/IEC 60947-2, 20 kA Icu at 660/690 V AC 50/60 Hz conforming to EN/IEC 60947-2
[Ics] rated service short-circuit breaking capacity 100 kA at 220/240 V AC 50/60 Hz conforming to EN/IEC 60947-2, 70 kA at 380/415 V AC 50/60 Hz conforming to EN/IEC 60947-2, 65 kA at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2, 50 kA at 500 V AC 50/60 Hz conforming to EN/IEC 60947-2, 11 kA at 525 V AC 50/60 Hz conforming to EN/IEC 60947-2, 10 kA at 660/690 V AC 50/60 Hz conforming to EN/IEC 60947-2
Mechanical durability 15000 cycles
Electrical durability 12000 cycles 440 V AC 50/60 Hz In/2 conforming to IEC 60947-2, 6000 cycles 440 V AC 50/60 Hz In conforming to IEC 60947-2, 6000 cycles 690 V AC 50/60 Hz In/2 conforming to IEC 60947-2, 3000 cycles 690 V AC 50/60 Hz In conforming to IEC 60947-2
Mounting support Backplate
Upside connection Front
Downside connection Front
Connection pitch without spreaders 45 mm
Connections - terminals 4 screw type terminals wire size 240 mm² aluminium/copper
[tr] long-time delay adjustment range 15…400 s at 1.5 x Ir, 0.5…16 s at 6 x Ir, 0.35…11 s at 7.2 x Ir
Long time pick-up adjustment type Ir Adjustable
Long time pick-up adjustment range 160...400 A
Thermal memory 20 minutes before and after tripping
[Isd] short-time pick-up adjustment range 1.5...10 x Ir
Short-time pick-up adjustment type Isd Adjustable 9 settings
Short-time delay adjustment type Fixed
[tsd] short-time delay adjustment range 0…0.4 s
Instantaneous pick-up adjustment range 1.5...12 x In
Instantaneous pick-up adjustment type Ii Adjustable
Local signalling LED ready, LED 90 % Ir, LED 105 % Ir
Electrical data recording Maintenance indicators
Zone selective interlocking ZSI With
Width 185 mm
Height 255 mm
Depth 110 mm
Net weight 7.9 kg
Communication of data Total energy
Display type LCD display
Type of measurement Energy meter

Environment 8

Standards EN/IEC 60947
Product certifications CCC, EAC, Marine
Overvoltage category Class II
Pollution degree 3 conforming to IEC 60664-1
IP degree of protection IP40 conforming to IEC 60529
IK degree of protection IK07 conforming to IEC 62262
Ambient air temperature for operation -35…70 °C
Ambient air temperature for storage -40…85 °C
Show all 79 specifications ↓ Show less ↑18 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number C40H45E400
Type designation NSX400H
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 10

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 15 cm
Package 1 Width 20 cm
Package 1 Length 29 cm
Package 1 Weight 8.23 kg
Shipping weight 7.9 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for C40H45E400

No documents are on file for this part yet.
