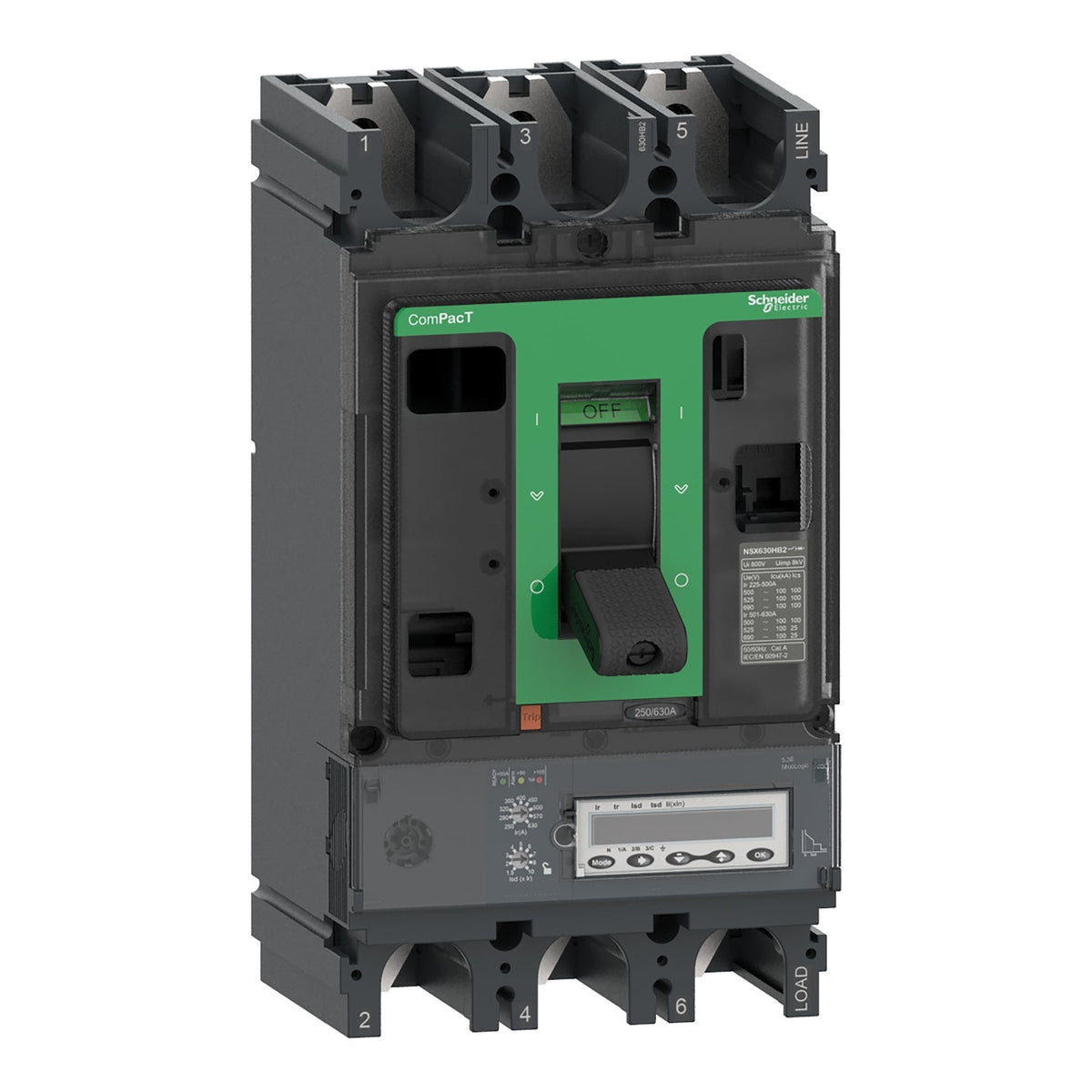

ComPacT NSX400F MCCB, 3P 400 A, 36 kA at 415 V AC, MicroLogic 5.3 E trip unit.
The Schneider Electric C40F35E400 is a 3-pole ComPacT NSX400F moulded case circuit breaker rated 400 A on a MicroLogic 5.3 E electronic trip unit with an integrated multifunction energy meter and LCD display. Breaking capacity (Icu) is 36 kA at 380/415 V AC, with a 690 V AC rated operational voltage, for distribution boards that need adjustable long-time, short-time and instantaneous protection.
The MicroLogic 5.3 E trip unit adds an integrated energy meter with LCD display and zone selective interlocking (ZSI) on top of adjustable long-time, short-time and instantaneous protection, so the C40F35E400 suits a main or sub-distribution position where local kWh metering and selective coordination with downstream breakers both matter. Choose the simpler MicroLogic 2.3 sibling in the same frame where metering is not needed.
| Range | ComPacT |
|---|---|
| Product name | ComPacT NSX |
| Device short name | NSX400F |
| Breaking capacity code | F |
| Product or component type | Circuit breaker |
| Device application | Distribution |
| Poles description | 3P |
| Protected poles description | 3D |
| Network type | AC |
| Network frequency | 50/60 Hz |
| Suitability for isolation | Yes conforming to EN/IEC 60947-2 |
| Utilisation category | Category A |
| [In] rated current | 400 A at 40 °C |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| Trip unit name | MicroLogic 5.3 E |
| Trip unit type | Electronic |
| Trip unit rating | 400 A at 40 °C |
| Control type | Toggle, Rotary handle, Extended rotary handle |
| Mounting mode | Fixed |
| Long time delay adjustment type | Adjustable |
|---|---|
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Icu] rated ultimate short-circuit breaking capacity | 40 kA Icu at 220/240 V AC 50/60 Hz conforming to EN/IEC 60947-2, 36 kA Icu at 380/415 V AC 50/60 Hz conforming to EN/IEC 60947-2, 30 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2, 25 kA Icu at 500 V AC 50/60 Hz conforming to EN/IEC 60947-2, 20 kA Icu at 525 V AC 50/60 Hz conforming to EN/IEC 60947-2, 10 kA Icu at 660/690 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
| [Ics] rated service short-circuit breaking capacity | 40 kA at 220/240 V AC 50/60 Hz conforming to EN/IEC 60947-2, 36 kA at 380/415 V AC 50/60 Hz conforming to EN/IEC 60947-2, 30 kA at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2, 25 kA at 500 V AC 50/60 Hz conforming to EN/IEC 60947-2, 10 kA at 525 V AC 50/60 Hz conforming to EN/IEC 60947-2, 10 kA at 660/690 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
| Mechanical durability | 15000 cycles |
| Electrical durability | 12000 cycles 440 V AC 50/60 Hz In/2 conforming to IEC 60947-2, 6000 cycles 440 V AC 50/60 Hz In conforming to IEC 60947-2, 6000 cycles 690 V AC 50/60 Hz In/2 conforming to IEC 60947-2, 3000 cycles 690 V AC 50/60 Hz In conforming to IEC 60947-2 |
| Mounting support | Backplate |
| Upside connection | Front |
| Downside connection | Front |
| Connection pitch without spreaders | 45 mm |
| Connections - terminals | 4 screw type terminals wire size 240 mm² aluminium/copper |
| [tr] long-time delay adjustment range | 15…400 s at 1.5 x Ir, 0.5…16 s at 6 x Ir, 0.35…11 s at 7.2 x Ir |
| Long time pick-up adjustment type Ir | Adjustable |
| Long time pick-up adjustment range | 160…400 A |
| Thermal memory | 20 minutes before and after tripping |
| [Isd] short-time pick-up adjustment range | 1.5...10 x Ir |
| Short-time pick-up adjustment type Isd | Adjustable 9 settings |
| Short-time delay adjustment type | Fixed |
| [tsd] short-time delay adjustment range | 0…0.4 s |
| Instantaneous pick-up adjustment range | 1.5...12 x In |
| Instantaneous pick-up adjustment type Ii | Adjustable |
| Local signalling | LED ready, LED 90 % Ir, LED 105 % Ir |
| Electrical data recording | Maintenance indicators |
| Zone selective interlocking ZSI | With |
| Width | 140 mm |
| Height | 255 mm |
| Depth | 110 mm |
| Net weight | 6.05 kg |
| Communication of data | Total energy |
| Display type | LCD display |
| Type of measurement | Energy meter |
| Standards | EN/IEC 60947 |
|---|---|
| Product certifications | CCC, EAC, Marine |
| Overvoltage category | Class II |
| Pollution degree | 3 conforming to IEC 60664-1 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to IEC 62262 |
| Ambient air temperature for operation | -35…70 °C |
| Ambient air temperature for storage | -40…85 °C |
| Part number | C40F35E400 |
|---|---|
| Type designation | NSX400F |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Warranty (in months) | 18 |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 14.6 cm |
| Package 1 Width | 15.45 cm |
| Package 1 Length | 29.1 cm |
| Package 1 Weight | 6.4 kg |
| Shipping weight | 6.05 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
