Part number
C25V4TM200
Model no
NSX250HB1
$1,115.10 On request Dispatch — · From TürkiyeGet a Quote

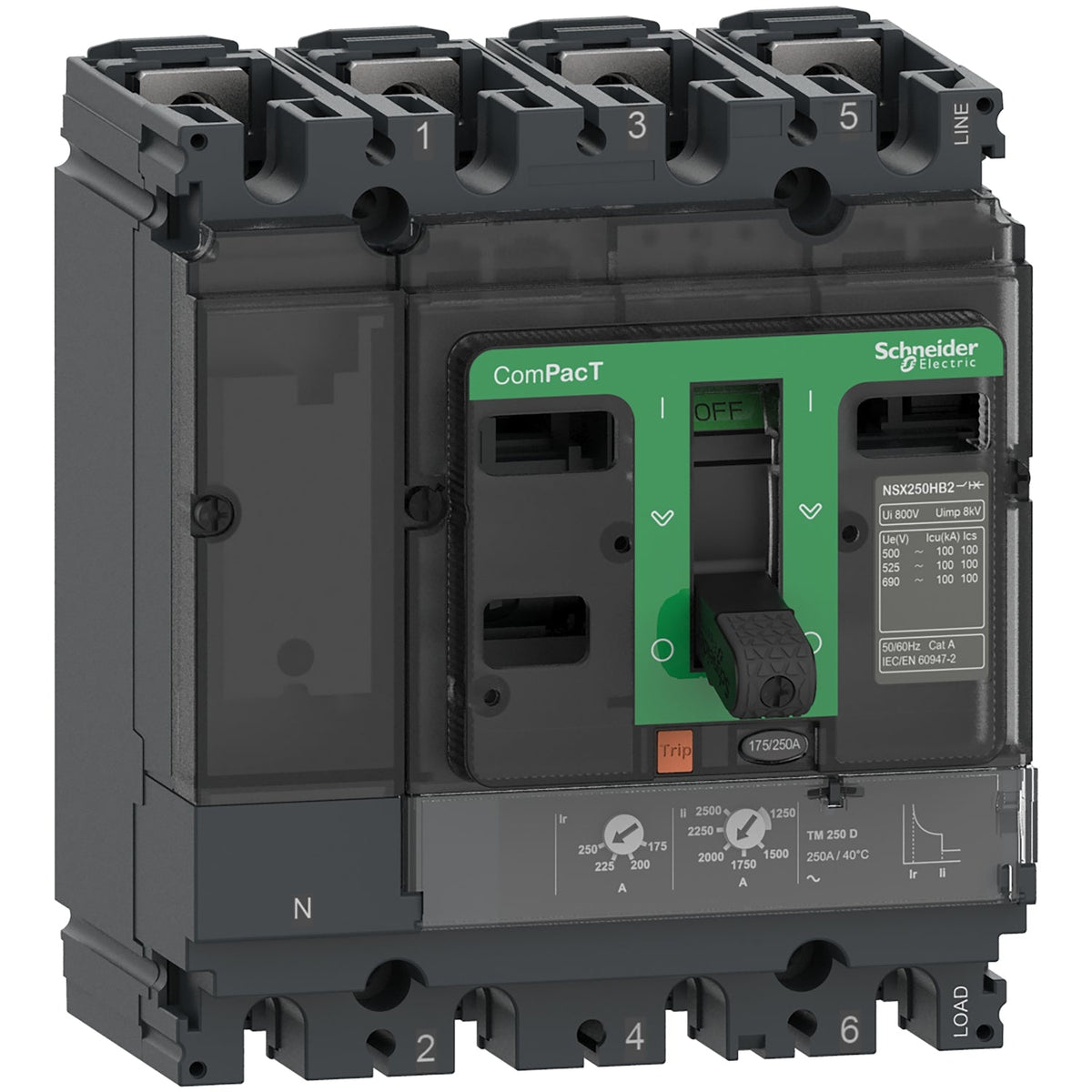

Schneider Electric C25V4TM200 ComPacT NSX250HB1 4P 200 A 75 kA TM-D Fixed Moulded Case Circuit Breaker

ComPacT NSX250HB1 MCCB, 4P 200 A, 75 kA at 690 V AC, TM-D trip unit.

Rated current
200 A
Rated operational voltage
690 V AC
Description

About the NSX250HB1

The Schneider Electric C25V4TM200 is a 4-pole ComPacT NSX250HB1 moulded case circuit breaker rated 200 A on a TM-D thermal-magnetic trip unit, built on the HB1 690 V AC frame. Breaking capacity (Icu) is 75 kA at 660/690 V AC and 85 kA at 500 V AC, against a 690 V AC rated operational voltage, for LV distribution at the top of the 690 V band.

Certifications & Standards

  • EN/IEC 60947-2

Selection Notes

The HB1 frame is rated specifically for the 500-690 V AC band (85 kA at 500 V, 75 kA at 690 V) rather than the lower 220-440 V band the standard NSX250R covers, so it is the frame to specify on 690 V AC distribution rather than a derated 415 V breaker. Its 4th pole trips at 1 x Ir for a protected neutral on 4-wire 690 V feeders; Pick a different trip-current sibling in the same HB1 series to match load current, or step up to the HB2 (NSX250HB2) frame where 690 V breaking capacity above 75 kA is required.

Specification

Full specification

87 values · Last verified 30 Oct 2026

Main 21

Range ComPacT
Product name ComPacT NSX
Device short name NSX250HB1
Product or component type Circuit breaker
Device application Distribution
Poles description 4P
Protected poles description 4D
Neutral position Left
[In] rated current 200 A at 40 °C
[Ue] rated operational voltage 690 V AC 50/60 Hz
Network type AC
Network frequency 50/60 Hz
Suitability for isolation Yes conforming to EN/IEC 60947-2
Utilisation category Category A
Breaking capacity 85 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2, 80 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2, 75 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
Breaking capacity code HB1 75 kA 690 V AC
Trip unit name TM-D
Trip unit technology Thermal-magnetic
Trip unit protection functions LI
Control type Toggle
Circuit breaker mounting mode Fixed

Complementary 26

[Ui] rated insulation voltage 800 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage 8 kV
[Ics] rated service breaking capacity 85 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2, 80 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2, 75 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
Mechanical durability 20000 cycles
Electrical durability 20000 cycles at 440 V In/2, 10000 cycles at 440 V In, 10000 cycles at 690 V In/2, 5000 cycles at 690 V In
Power dissipation per pole 15.4 W
Mounting support Backplate
Mounting position Horizontal and vertical, Flat on the back
Upside connection Front
Downside connection Front
Connection pitch 35 mm
Protection type L : for overload protection (thermal), I : for short-circuit protection (magnetic)
Trip unit rating 200 A at 40 °C
Long-time pick-up adjustment type Ir (thermal protection) Adjustable
[Ir] long-time protection pick-up adjustment range 0.7...1 x In
Long-time protection delay adjustment type tr Fixed
[tr] long-time delay adjustment range 120…400 s at 1.5 x In, 15 s at 6 x Ir
Neutral protection setting 1 x Ir (4D)
Instantaneous protection pick-up adjustment type Ii Adjustable
[Ii] instantaneous protection pick-up adjustment range 5...10 x In
Earth-leakage protection Without
Number of slots 5 slot(s)
Width (W) 140 mm
Height (H) 161 mm
Depth (D) 86 mm
Net weight 2.8 kg

Environment 10

Standards EN/IEC 60947-2
Overvoltage category III
Electrical shock protection class Class II on front face
Pollution degree 3 conforming to IEC 60664-1
IP degree of protection IP40 conforming to IEC 60529
IK degree of protection IK07 conforming to IEC 62262
Ambient air temperature for operation -25…70 °C
Ambient air temperature for storage -50…85 °C
Relative humidity 0…95 %
Operating altitude 0...2000 m without derating, 2000 m...5000 m with derating
Show all 87 specifications ↓ Show less ↑30 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number C25V4TM200
Type designation NSX250HB1
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 22

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 14.000 cm
Package 1 Width 15.000 cm
Package 1 Length 20.000 cm
Package 1 Weight 2.740 kg
Unit Type of Package 2 S03
Number of Units in Package 2 3
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 8.640 kg
Unit Type of Package 3 P12
Number of Units in Package 3 24
Package 3 Height 45.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 81.120 kg
Shipping weight 2.8 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for C25V4TM200

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • EN/IEC 60947-2
Quick answers

Questions about the NSX250HB1

What is the rated current of NSX250HB1?

The rated current of NSX250HB1 is 200 A.

Which supply voltage is NSX250HB1 rated for?

The rated operational voltage of NSX250HB1 is 690 V AC.

What is the HS code of NSX250HB1 for customs?

The tariff (HS) code on file for NSX250HB1 is 853620.

Where does NSX250HB1 ship from, and how fast?

NSX250HB1 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
