Part number
C16N1TM160
Model no
NSX160N
$173.94 On request Dispatch — · From TürkiyeGet a Quote

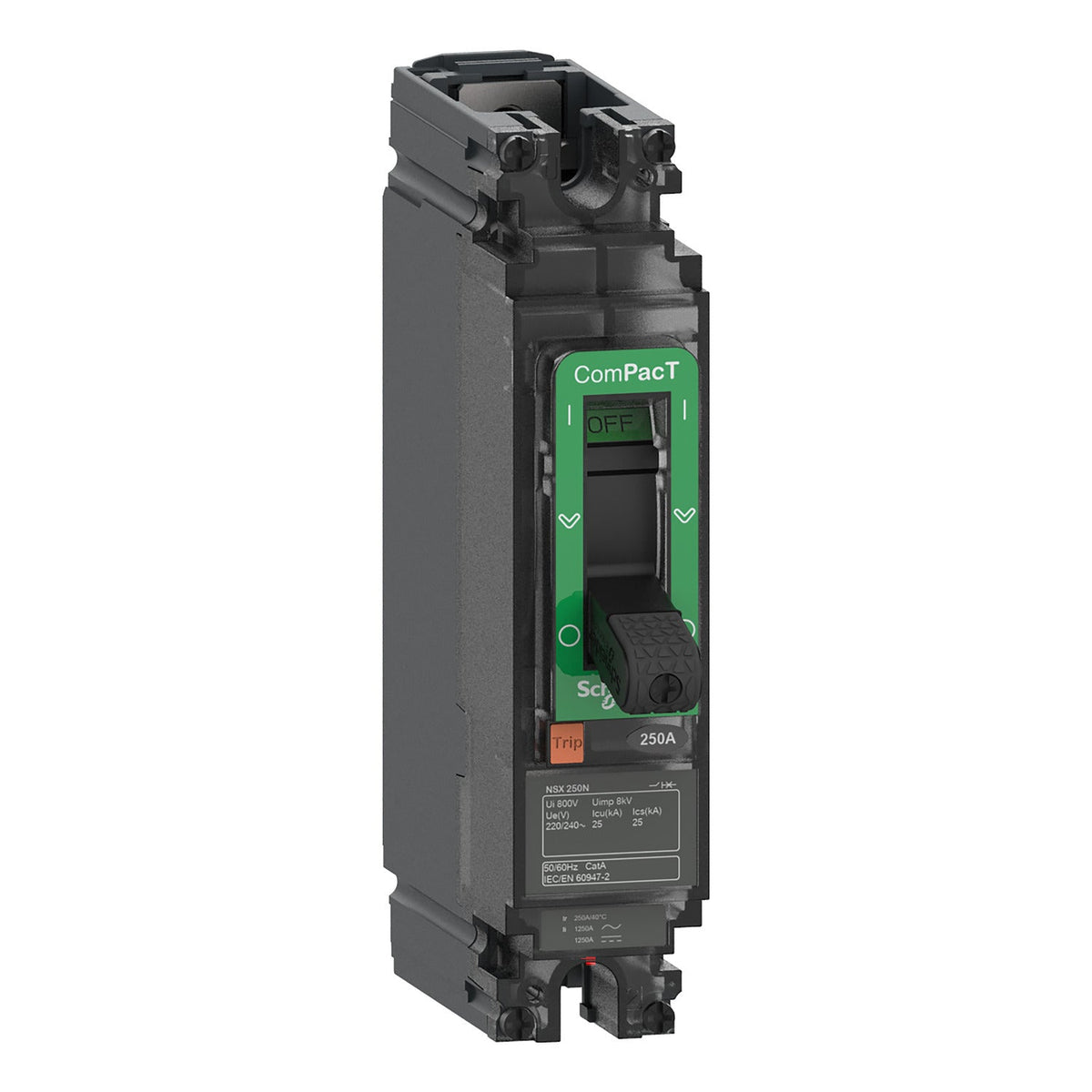

Schneider Electric C16N1TM160 ComPacT NSX160N 1P 160 A 25 kA at 240 V TM-D Fixed Moulded Case Circuit Breaker

Schneider Electric C16N1TM160 ComPacT NSX160N 1P 160A TM-D AC/DC, 25 kA at 240 V AC.

Rated current
160 A
Rated operational voltage
277 V AC
Description

About the NSX160N

The C16N1TM160 is a 1-pole Schneider Electric ComPacT NSX160N AC/DC moulded case circuit breaker rated 160 A, with a TM-D thermal-magnetic trip unit and 25 kA breaking capacity (Icu) at 240 V AC. Rated operational voltage (Ue) is 277 V AC or 250 V DC, on the same slim 35 mm single-pole frame as the NSX160M AC/DC series.

Certifications & Standards

  • EN/IEC 60947-2

Selection Notes

At 160 A the C16N1TM160 tops out the current range of this single-pole N-rated frame, sharing the 25 kA/240 V AC and 50 kA/250 V DC breaking capacities of the 125 A variant. Its fixed 1250 A instantaneous pickup, against 1000 A on the 125 A unit, scales with the higher rated current rather than offering independent adjustment — choose between the two on load current alone.

Specification

Full specification

77 values · Last verified 30 Oct 2026

Main 20

Range ComPacT
Product name ComPacT NSX
Device short name NSX160N
Product or component type Circuit breaker
Device application Distribution
Poles description 1P
Protected poles description 1D
[In] rated current 160 A at 40 °C
[Ue] rated operational voltage 277 V AC 50/60 Hz, 250 V DC
Network type AC, DC
Network frequency 50/60 Hz
Suitability for isolation Yes conforming to EN/IEC 60947-2
Utilisation category Category A
Breaking capacity 25 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA Icu at 250 V DC conforming to IEC 60947-2
Breaking capacity code N 25 kA 240 V AC
Trip unit name TM-D
Trip unit technology Thermal-magnetic
Trip unit protection functions LI
Control type Toggle
Circuit breaker mounting mode Fixed

Complementary 23

[Ui] rated insulation voltage 750 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947-2
[Ics] rated service breaking capacity 25 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA at 250 V DC conforming to IEC 60947-2
Mechanical durability 20000 cycles
Electrical durability 20000 cycles at 277 V In/2, 10000 cycles at 277 V In
Power dissipation per pole 13.95 W
Mounting support Backplate
Mounting position Horizontal and vertical, Flat on the back
Upside connection Front
Downside connection Front
Connection pitch 35 mm
Protection type L : for overload protection (thermal), I : for short-circuit protection (magnetic)
Trip unit rating 160 A at 40 °C
Long-time pick-up adjustment type Ir (thermal protection) Fixed
[Ir] long-time protection pick-up adjustment range 1 x In
Long-time protection delay adjustment type tr Fixed
Instantaneous protection pick-up adjustment type Ii Fixed
[Ii] instantaneous protection pick-up adjustment range 1250 A
Earth-leakage protection Without
Width (W) 35 mm
Height (H) 161 mm
Depth (D) 86 mm
Net weight 0.7 kg

Environment 10

Standards EN/IEC 60947-2
Overvoltage category IV
Electrical shock protection class Class II on front face
Pollution degree 3 conforming to IEC 60664-1
IP degree of protection IP40 conforming to IEC 60529
IK degree of protection IK07 conforming to IEC 62262
Ambient air temperature for operation -25…70 °C
Ambient air temperature for storage -50…85 °C
Relative humidity 0…95 %
Operating altitude 0...2000 m without derating, 2000 m...5000 m with derating
Show all 77 specifications ↓ Show less ↑24 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number C16N1TM160
Type designation NSX160N
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 16

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 4.2 cm
Package 1 Width 13.0 cm
Package 1 Length 17.5 cm
Package 1 Weight 737.0 g
Unit Type of Package 2 S03
Number of Units in Package 2 12
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 9.224 kg
Shipping weight 0.7 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
