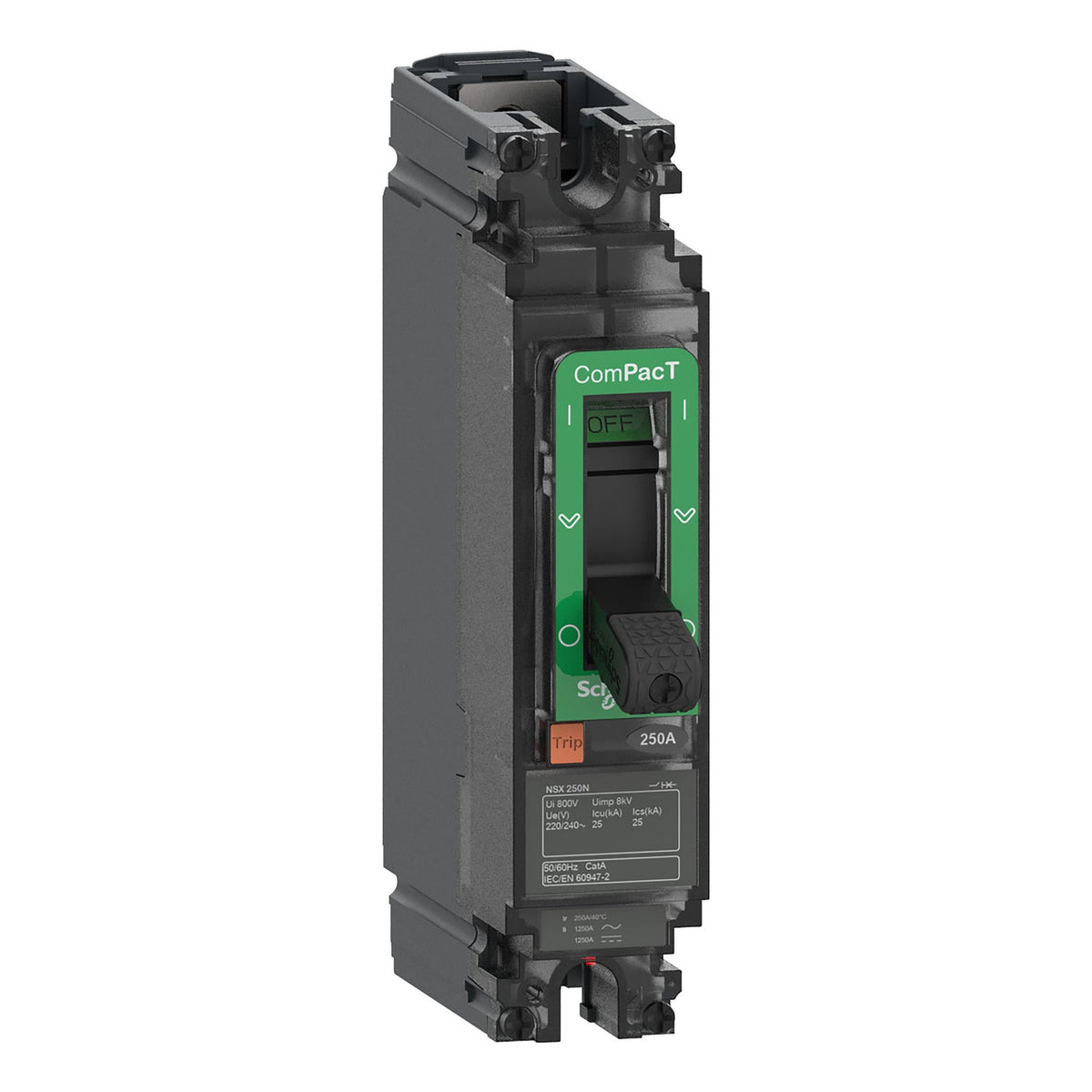

Schneider Electric C16N1TM125 ComPacT NSX160N 1P 125A TM-D AC/DC, 25 kA at 240 V AC.
The C16N1TM125 is a 1-pole Schneider Electric ComPacT NSX160N AC/DC moulded case circuit breaker rated 125 A, with a TM-D thermal-magnetic trip unit and 25 kA breaking capacity (Icu) at 240 V AC. Rated operational voltage (Ue) is 277 V AC or 250 V DC, on the same slim 35 mm single-pole frame as the NSX160M AC/DC series.
At 25 kA/240 V AC, the C16N1TM125 sits below the 40 kA of the equivalent NSX160M 1-pole AC/DC breaker in the same 35 mm frame — pick the N-rated unit for lighter single-phase or DC branch duty and the M-rated unit where the branch circuit's fault current is higher. On DC duty its Icu reaches 50 kA at 250 V with a single pole, again below the M-frame's 85 kA figure. For a higher current rating in the same N-rated body, the 160 A variant is the direct step up.
| Range | ComPacT |
|---|---|
| Product name | ComPacT NSX |
| Device short name | NSX160N |
| Product or component type | Circuit breaker |
| Device application | Distribution |
| Poles description | 1P |
| Protected poles description | 1D |
| [In] rated current | 125 A at 40 °C |
| [Ue] rated operational voltage | 277 V AC 50/60 Hz, 250 V DC |
| Network type | AC, DC |
| Network frequency | 50/60 Hz |
| Suitability for isolation | Yes conforming to EN/IEC 60947-2 |
| Utilisation category | Category A |
| Breaking capacity | 25 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA Icu at 250 V DC conforming to IEC 60947-2 |
| Breaking capacity code | N 25 kA 240 V AC |
| Trip unit name | TM-D |
| Trip unit technology | Thermal-magnetic |
| Trip unit protection functions | LI |
| Control type | Toggle |
| Circuit breaker mounting mode | Fixed |
| [Ui] rated insulation voltage | 750 V AC 50/60 Hz conforming to IEC 60947-2 |
|---|---|
| [Uimp] rated impulse withstand voltage | 8 kV conforming to IEC 60947-2 |
| [Ics] rated service breaking capacity | 25 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA at 250 V DC conforming to IEC 60947-2 |
| Mechanical durability | 20000 cycles |
| Electrical durability | 20000 cycles at 277 V In/2, 10000 cycles at 277 V In |
| Power dissipation per pole | 10.78 W |
| Mounting support | Backplate |
| Mounting position | Horizontal and vertical, Flat on the back |
| Upside connection | Front |
| Downside connection | Front |
| Connection pitch | 35 mm |
| Protection type | L : for overload protection (thermal), I : for short-circuit protection (magnetic) |
| Trip unit rating | 125 A at 40 °C |
| Long-time pick-up adjustment type Ir (thermal protection) | Fixed |
| [Ir] long-time protection pick-up adjustment range | 1 x In |
| Long-time protection delay adjustment type tr | Fixed |
| Instantaneous protection pick-up adjustment type Ii | Fixed |
| [Ii] instantaneous protection pick-up adjustment range | 1000 A |
| Earth-leakage protection | Without |
| Width (W) | 35 mm |
| Height (H) | 161 mm |
| Depth (D) | 86 mm |
| Net weight | 0.7 kg |
| Standards | EN/IEC 60947-2 |
|---|---|
| Overvoltage category | IV |
| Electrical shock protection class | Class II on front face |
| Pollution degree | 3 conforming to IEC 60664-1 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to IEC 62262 |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -50…85 °C |
| Relative humidity | 0…95 % |
| Operating altitude | 0...2000 m without derating, 2000 m...5000 m with derating |
| Part number | C16N1TM125 |
|---|---|
| Type designation | NSX160N |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Warranty (in months) | 18 |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.000 cm |
| Package 1 Width | 13.000 cm |
| Package 1 Length | 18.000 cm |
| Package 1 Weight | 1.281 kg |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 15.859 kg |
| Shipping weight | 0.7 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe rated current of NSX160N is 125 A.
The rated operational voltage of NSX160N is 277 V AC.
The tariff (HS) code on file for NSX160N is 853620.
NSX160N ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
