Part number
C16M1TM125
Model no
NSX160M
$151.17 On request Dispatch — · From TürkiyeGet a Quote

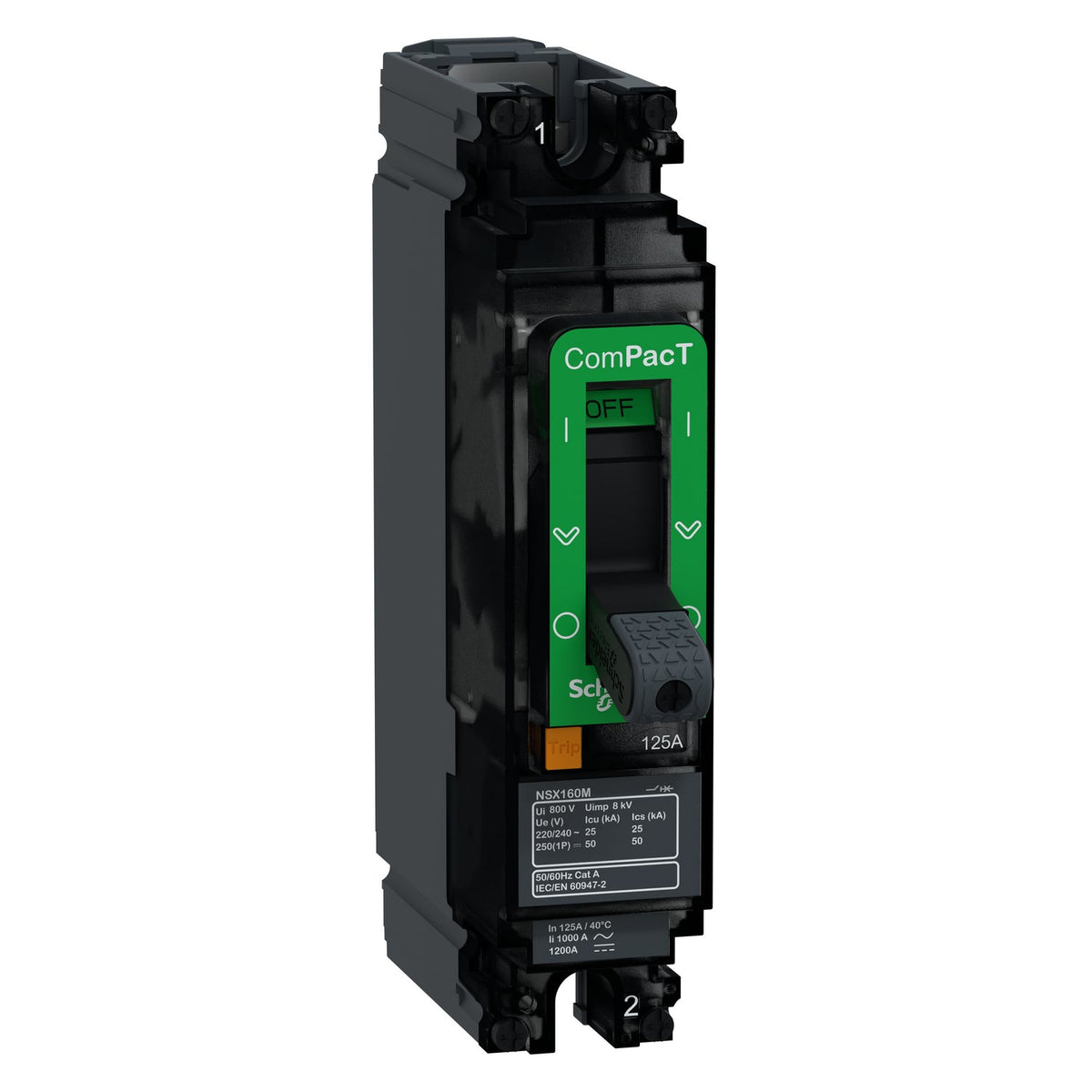

Schneider Electric C16M1TM125 ComPacT NSX160M 1P 125 A 40 kA at 240 V TM-D Fixed Moulded Case Circuit Breaker

Schneider Electric C16M1TM125 ComPacT NSX160M 1P 125A TM-D AC/DC, 40 kA at 240 V AC.

Rated current
125 A
Rated operational voltage
277 V AC
Description

About the NSX160M

The C16M1TM125 is a 1-pole Schneider Electric ComPacT NSX160M AC/DC moulded case circuit breaker rated 125 A, with a TM-D thermal-magnetic trip unit and 40 kA breaking capacity (Icu) at 240 V AC. Rated operational voltage (Ue) is 277 V AC or 250 V DC, with an overvoltage category IV rating for the slim 35 mm single-pole frame.

Certifications & Standards

  • EN/IEC 60947-2

Selection Notes

The C16M1TM125's 40 kA Icu figure is only quoted at 240 V AC — this M-rated single-pole frame targets single-phase 277 V branch circuits or DC applications, not 3-phase 380/415 V distribution, so it is not directly comparable to the 3-pole F/H/N frames' 415 V ratings. On DC duty a single pole clears 85 kA at 250 V DC, markedly higher than its AC figure. For a single-phase circuit needing more than 125 A, the 160 A variant shares the same 35 mm frame.

Specification

Full specification

83 values · Last verified 30 Oct 2026

Main 20

Range ComPacT
Product name ComPacT NSX
Device short name NSX160M
Product or component type Circuit breaker
Device application Distribution
Poles description 1P
Protected poles description 1D
[In] rated current 125 A at 40 °C
[Ue] rated operational voltage 277 V AC 50/60 Hz, 250 V DC
Network type AC, DC
Network frequency 50/60 Hz
Suitability for isolation Yes conforming to EN/IEC 60947-2
Utilisation category Category A
Breaking capacity 40 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, 85 kA Icu at 250 V DC conforming to IEC 60947-2
Breaking capacity code M 40 kA 240 V AC
Trip unit name TM-D
Trip unit technology Thermal-magnetic
Trip unit protection functions LI
Control type Toggle
Circuit breaker mounting mode Fixed

Complementary 23

[Ui] rated insulation voltage 750 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947-2
[Ics] rated service breaking capacity 40 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, 85 kA at 250 V DC conforming to IEC 60947-2
Mechanical durability 20000 cycles
Electrical durability 20000 cycles at 277 V In/2, 10000 cycles at 277 V In
Power dissipation per pole 10.78 W
Mounting support Backplate
Mounting position Horizontal and vertical, Flat on the back
Upside connection Front
Downside connection Front
Connection pitch 35 mm
Protection type L : for overload protection (thermal), I : for short-circuit protection (magnetic)
Trip unit rating 125 A at 40 °C
Long-time pick-up adjustment type Ir (thermal protection) Fixed
[Ir] long-time protection pick-up adjustment range 1 x In
Long-time protection delay adjustment type tr Fixed
Instantaneous protection pick-up adjustment type Ii Fixed
[Ii] instantaneous protection pick-up adjustment range 1000 A
Earth-leakage protection Without
Width (W) 35 mm
Height (H) 161 mm
Depth (D) 86 mm
Net weight 0.7 kg

Environment 10

Standards EN/IEC 60947-2
Overvoltage category IV
Electrical shock protection class Class II on front face
Pollution degree 3 conforming to IEC 60664-1
IP degree of protection IP40 conforming to IEC 60529
IK degree of protection IK07 conforming to IEC 62262
Ambient air temperature for operation -25…70 °C
Ambient air temperature for storage -50…85 °C
Relative humidity 0…95 %
Operating altitude 0...2000 m without derating, 2000 m...5000 m with derating
Show all 83 specifications ↓ Show less ↑30 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number C16M1TM125
Type designation NSX160M
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 22

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 8.000 cm
Package 1 Width 13.000 cm
Package 1 Length 18.000 cm
Package 1 Weight 1.281 kg
Unit Type of Package 2 S03
Number of Units in Package 2 12
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 15.792 kg
Unit Type of Package 3 P12
Number of Units in Package 3 96
Package 3 Height 45.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 138.336 kg
Shipping weight 0.7 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for C16M1TM125

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • EN/IEC 60947-2
Quick answers

Questions about the NSX160M

What is the rated current of NSX160M?

The rated current of NSX160M is 125 A.

Which supply voltage is NSX160M rated for?

The rated operational voltage of NSX160M is 277 V AC.

What is the HS code of NSX160M for customs?

The tariff (HS) code on file for NSX160M is 853620.

Where does NSX160M ship from, and how fast?

NSX160M ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
