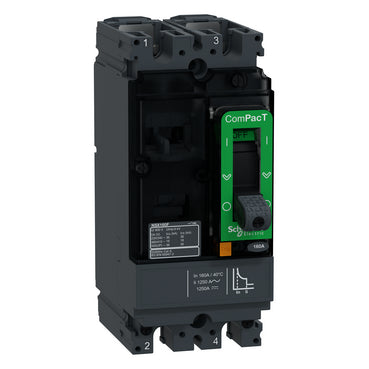

Schneider Electric C16F2TM160 ComPacT NSX160F 2P 160 A 18 kA TM-D Fixed Moulded Case Circuit Breaker

% $-190.16
Schneider Electric C16F2TM160 NSX160F AC/DC moulded case circuit breaker – 2P 160A 18kA
Schneider Electric C16F2TM160 NSX160F AC/DC moulded case circuit breaker – 2P 160A 18kA

Schneider Electric C16F2TM160 ComPacT NSX160F 2P 160 A 18 kA TM-D Fixed Moulded Case Circuit Breaker

Brand: Schneider Electric
Reference No: C16F2TM160
Catalog No: C16F2TM160
Tariff Code (HS): 85362090
Rated Current: 160 A
Breaking Type: TM-D
Rated Voltage: 690 V
Poles: 2P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$190.16

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The C16F2TM160 is a 2-pole Schneider Electric ComPacT NSX160F AC/DC moulded case circuit breaker rated 160 A, with a TM-D thermal-magnetic trip unit and 18 kA breaking capacity (Icu) at 380/415 V AC. It is dual-rated for 690 V AC or 500 V DC (2 poles in series), with Ue given as 690 V AC on the AC side.

Technical Specifications

SKU / Reference C16F2TM160
Brand Schneider Electric
Range ComPacT NSX
Series NSX160F AC/DC
Device application Distribution
Poles 2P (2D protected)
[In] Rated current 160 A at 40 °C
[Ue] Rated operational voltage 690 V AC 50/60 Hz | 500 V DC (AC | DC)
[Ui] Rated insulation voltage 750 V AC 50/60 Hz
[Uimp] Rated impulse withstand voltage 8 kV
[Icu] Breaking capacity (AC) 36 kA at 220/240 V AC, 18 kA at 380/415 V AC (1P), 15 kA at 440 V AC (1P), 10 kA at 500/525 V AC (2P), 5 kA at 660/690 V AC
[Icu] Breaking capacity (DC) 36 kA at 250 V DC (1 pole), 36 kA at 500 V DC (2 poles in series)
[Ics] Service breaking capacity (AC) 36 kA at 220/240 V AC, 18 kA at 380/415 V AC, 15 kA at 440 V AC, 10 kA at 500/525 V AC, 5 kA at 660/690 V AC
Trip unit TM-D (thermal-magnetic)
Protection functions LI
[Ir] Long-time pick-up 1 x In, fixed
[Ii] Instantaneous pick-up 1250 A, fixed
Control type Toggle
Mounting mode Fixed
Connection Front upside, front downside, 35 mm pitch
Dimensions (W x H x D) 70 x 161 x 86 mm
Net weight 1.2 kg
IP / IK degree IP40 / IK07
Pollution degree 3, conforming to IEC 60664-1
Ambient temperature (operation / storage) -25…70 °C / -50…85 °C

Certifications & Standards

  • EN/IEC 60947-2

Selection Notes

At 160 A the C16F2TM160 tops out the current rating of this 2-pole AC/DC frame, against the 125 A variant in the same 18 kA/690 V body. The fixed 1 x In thermal setting and 1250 A instantaneous pickup are both scaled up from the 125 A unit's 1000 A setting, so the two are not interchangeable trip settings on the same frame — pick the current rating that matches the downstream conductor.

Technical Details

Short Description
Schneider Electric C16F2TM160 ComPacT NSX160F 2P 160A TM-D AC/DC, 18 kA at 415 V AC.
Rated Current (Ampere)
160 A
Rated Voltage (VAC)
690 V
Mounting Type
Fixed
Protection Type
IP40
Catalog No
C16F2TM160
Number of Poles
2P
Delivery Date (Days)
30 days
Model Number
NSX160F
Tariff Code
85362090
