Part number
C125H45AFM
$3,105.58 On request Dispatch — · From TürkiyeGet a Quote

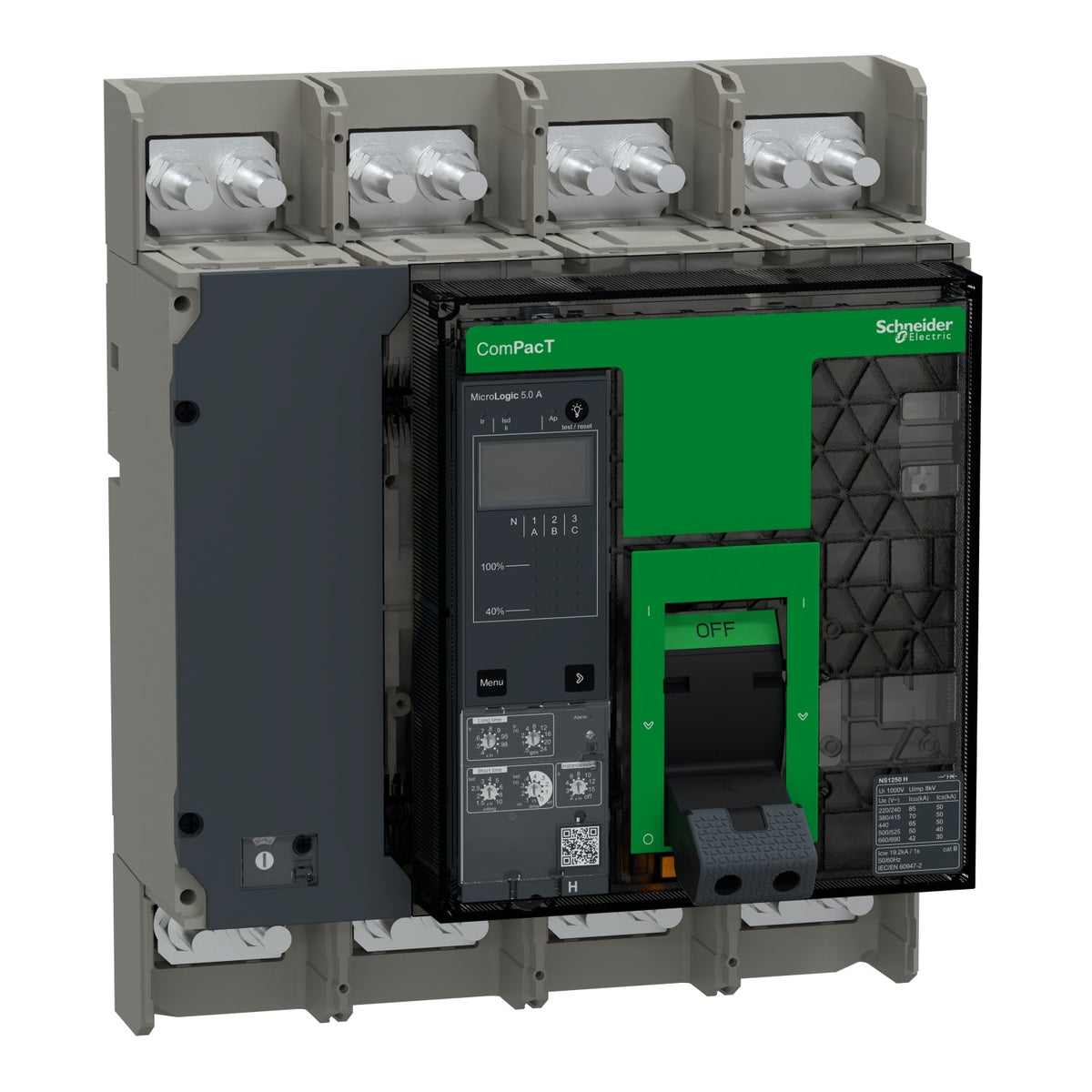

Schneider Electric C125H45AFM ComPacT NS1250H 4P 1250 A 70 kA MicroLogic 5.0 A Moulded Case Circuit Breaker

4P 1250A ComPacT NS1250H MCCB, 70kA Icu at 415V AC, MicroLogic 5.0 A trip unit, fixed, manually operated.

Rated current
1250 A
Rated operational voltage
690 V AC
Poles
4P
Display
LCD display (ammeter)
Description

About the C125H45AFM

The Schneider Electric C125H45AFM is a 4-pole, 1250 A ComPacT NS1250H moulded case circuit breaker rated for 70 kA breaking capacity (Icu) at 380/415 V AC. Fixed-mounted and manually operated, it carries a MicroLogic 5.0 A electronic trip unit delivering long-time overload, short-time delay and instantaneous short-circuit protection, and is rated up to 690 V AC for high-breaking-capacity distribution duty in the ComPacT NS630b...1600 new generation line.

Certifications & Standards

  • IECEE CB Scheme
  • EN/IEC 60947-2

Selection Notes

The H-frame classification gives the C125H45AFM 70 kA Icu at 380/415 V AC — choose it over the N-frame version of the same 1250 A frame when prospective short-circuit current at the installation point runs above standard distribution levels. Its MicroLogic 5.0 A trip unit adds a short-time delay stage over the 2.0 (LI) units in this frame, letting it hold through a downstream breaker's instantaneous trip for selective coordination on a main or sub-main application. The A suffix adds a digital LCD screen with an RMS ammeter, giving it a local current readout without a separate meter. With 4 poles and a neutral protection setting adjustable between 0.5× Ir (3D + N/2) and 1× Ir (4D), it suits TN-S or TT systems that need their own neutral overload protection; the 3-pole version of the same frame is for 3-phase-only loads.

Specification

Full specification

84 values · Last verified 30 Oct 2026

Main 21

Range ComPacT
Product name ComPacT NS new generation
Range of product ComPacT NS630b...1600 new generation
Product or component type Circuit breaker
Device application Distribution
Number of poles 4P
Protected poles description 4D
Neutral position Left
[In] rated current 1250 A at 50 °C
[Ue] rated operational voltage 690 V AC 50/60 Hz
Network type AC
Network frequency 50/60 Hz
Suitability for isolation Yes conforming to EN/IEC 60947-2
Utilisation category Category B
Breaking capacity 85 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, 70 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 65 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA Icu at 500/525 V AC 50/60 Hz conforming to IEC 60947-2, 42 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
Breaking capacity code H 70 kA 415 V AC
Trip unit name MicroLogic 5.0 A
Trip unit technology Electronic
Trip unit protection functions LSI
Control type Manually operated
Mounting mode Fixed

Complementary 35

[Ui] rated insulation voltage 800 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947-2
[Ics] rated service breaking capacity 52 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, 52 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 48 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2, 37 kA at 500/525 V AC 50/60 Hz conforming to IEC 60947-2, 31 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
[Icw] rated short-time withstand current 19.2 kA 1 s conforming to IEC 60947-2
Mechanical durability 10000 cycles
Electrical durability 2000 cycles at 690 V In, 3000 cycles at 690 V In/2, 4000 cycles at 440 V In, 5000 cycles at 440 V In/2
Power losses 44 W
Mounting support Backplate
Upside connection Front
Downside connection Front
Connection pitch 70 mm
Protection type L : for overload protection (long time), S : for short time short-circuit protection, I : for instantaneous short-circuit protection
Trip unit rating 1250 A at 50 °C
Long-time pick-up adjustment type Ir (thermal protection) Adjustable 9 settings
[Ir] long-time protection pick-up adjustment range 0.4...1 x In
Long-time protection delay adjustment type tr Adjustable 9 settings
[tr] long-time delay adjustment range 12.5…600 s at 1.5 x Ir, 0.5…24 s at 6 x Ir, 0.7…16.6 s at 7.2 x Ir
Thermal memory 20 mn
Short-time protection pick-up adjustment type Isd Adjustable 9 settings
[Isd] Short-time protection pick-up adjustment range 1.5...10 x Ir
Short-time protection delay adjustment type tsd Adjustable
[tsd] short-time delay adjustment range 0.1…0.4 s I²t=on, 0…0.4 s I²t=off
Instantaneous protection pick-up adjustment type Ii Adjustable
[Ii] instantaneous protection pick-up adjustment range Off, 2...15 x In
Earth-leakage protection Without
Neutral protection setting No protection (3D), 0.5 x Ir (3D + N/2), 1 x Ir (4D)
Zone selective interlocking ZSI With
Auxiliary contact composition 1 NO/NC
Local signalling 4 LEDs (red) for fault indication, 1 LED (yellow) for overload
Display type LCD display
Type of measurement Ammeter
Width (W) 280 mm
Height (H) 327 mm
Depth (D) 147 mm
Net weight 18 kg

Environment 11

Standards EN/IEC 60947-2
Product certifications IECEE CB Scheme
Overvoltage category III
Electrical shock protection class Class II on front face
Pollution degree 3 conforming to IEC 60947
IP degree of protection IP40 conforming to IEC 60529
IK degree of protection IK07 conforming to EN 50102
Ambient air temperature for operation -25…70 °C
Ambient air temperature for storage -40…85 °C
Relative humidity 0…95 %
Operating altitude 0...2000 m without derating, 2000 m...5000 m with derating
Show all 84 specifications ↓ Show less ↑17 more values in Identification, Contractual warranty, Logistics.

Identification 6

Part number C125H45AFM
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 10

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 30.000 cm
Package 1 Width 40.000 cm
Package 1 Length 60.000 cm
Package 1 Weight 17.600 kg
Shipping weight 18.0 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for C125H45AFM

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CB Scheme
  • EN/IEC 60947-2
Quick answers

Questions about the C125H45AFM

What is the rated current of C125H45AFM?

The rated current of C125H45AFM is 1250 A.

Which supply voltage is C125H45AFM rated for?

The rated operational voltage of C125H45AFM is 690 V AC.

What is the HS code of C125H45AFM for customs?

The tariff (HS) code on file for C125H45AFM is 853620.

Where does C125H45AFM ship from, and how fast?

C125H45AFM ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
