Part number
C11N6TM032B
Model no
NSXm 63N
$272.61 On request Dispatch — · From TürkiyeGet a Quote

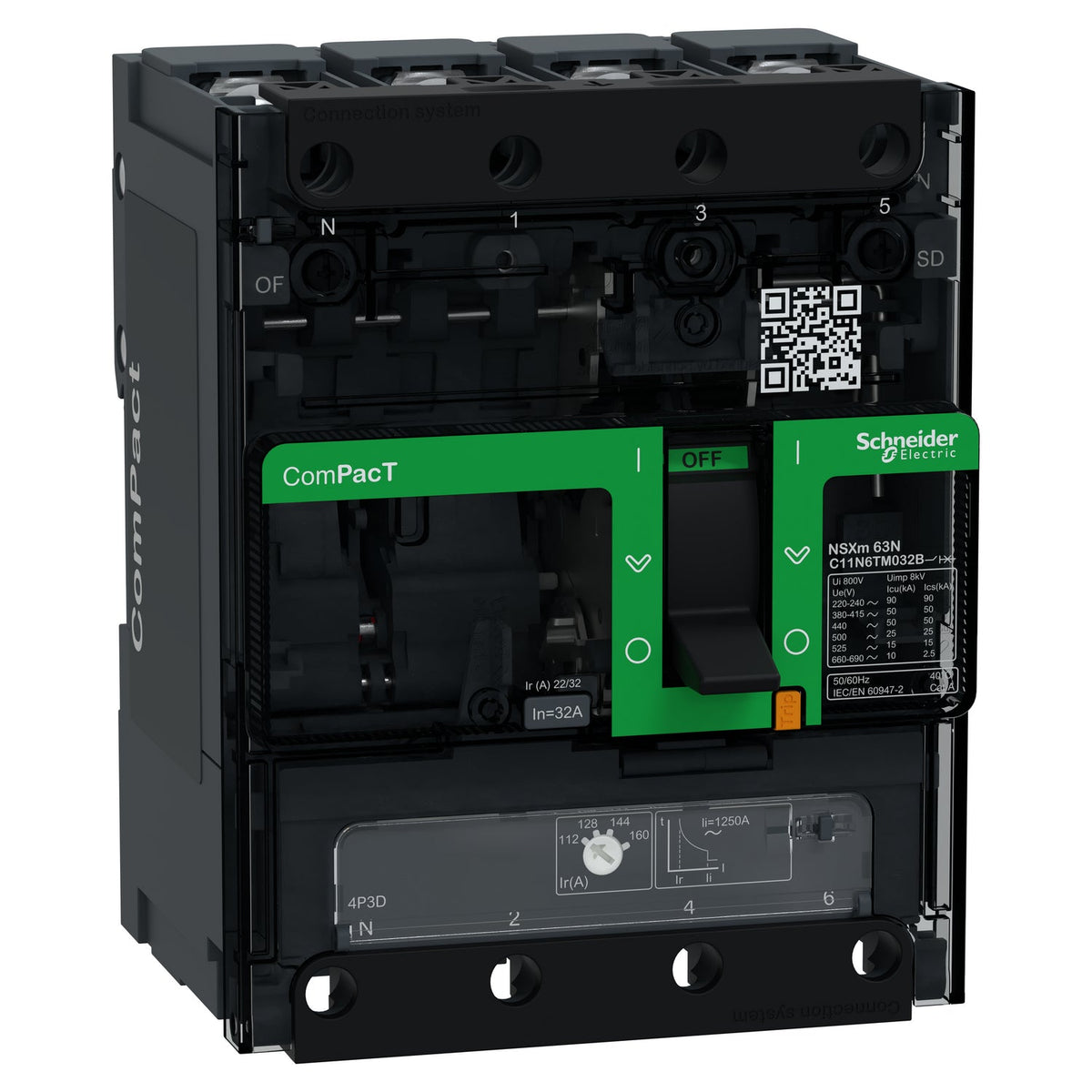

Schneider Electric C11N6TM032B ComPacT NSXm 63N 4P 32 A 50 kA TM-D Fixed Moulded Case Circuit Breaker

Schneider Electric C11N6TM032B - ComPacT NSXm 63N, 4P, 32 A, 50 kA Icu, TM-D trip unit.

Rated current
32 A
Rated operational voltage
690 V AC
Description

About the NSXm 63N

The Schneider Electric C11N6TM032B is a 4P ComPacT NSXm 63N moulded case circuit breaker rated 32 A at 40°C, built on a TM-D thermal-magnetic trip unit with 50 kA breaking capacity (Icu) at 380/415 V AC. This 4P version has protected poles 3D (neutral not protected). It is a fixed-mounting device with front compression lug or busbar connection for low-voltage distribution circuits up to 690 V AC.

Certifications & Standards

  • EN/IEC 60947-2

Selection Notes

Choose the N performance level (50 kA Icu at 380/415 V AC) when the prospective short-circuit current at the installation point stays at or below that rating; move to the lower-breaking-capacity F or B version in the same NSXm frame if the fault-level study gives a different result. The neutral pole is not protected (3D), which fits TN-S boards where neutral overcurrent protection is handled elsewhere. The TM-D trip unit has a fixed long-time delay with pickup adjustable over 0.7...1 x In range and a fixed instantaneous pickup at 600 A, so downstream coordination relies on current discrimination rather than time grading.

Specification

Full specification

89 values · Last verified 30 Oct 2026

Main 21

Range ComPacT
Product name ComPacT NSXm
Device short name NSXm 63N
Product or component type Circuit breaker
Device application Distribution
Poles description 4P
Protected poles description 3D
Neutral position Left
[In] rated current 32 A at 40 °C
[Ue] rated operational voltage 690 V AC 50/60 Hz
Network type AC
Network frequency 50/60 Hz
Suitability for isolation Yes conforming to IEC 60947-2
Utilisation category Category A
[Icu] rated ultimate short-circuit breaking capacity 90 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA Icu at 380...415 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 25 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2, 15 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2, 10 kA Icu at 660...690 V AC 50/60 Hz conforming to IEC 60947-2
Performance level N 50 kA 415 V AC
Trip unit name TM-D
Trip unit technology Thermal-magnetic
Trip unit protection functions LI
Control type Toggle
Circuit breaker mounting mode Fixed

Complementary 28

[Ui] rated insulation voltage 800 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage 8 kV
[Ics] rated service short-circuit breaking capacity 90 kA at 220...240 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA at 380...415 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2, 25 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2, 15 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2, 2.5 kA at 660...690 V AC 50/60 Hz conforming to IEC 60947-2
Mechanical durability 20000 cycles
Electrical durability 20000 cycles at 440 V In/2, 10000 cycles at 440 V In, 10000 cycles at 690 V In/2, 5000 cycles at 690 V In
Power dissipation per pole 3.3 W
Mounting support Backplate
Mounting position Horizontal and vertical, Flat on the back
Upside connection Front
Downside connection Front
Connection terminals compression lug/busbar
Connection pitch 35 mm with spreaders, 27 mm without spreaders
9 mm pitches 12 module
Trip unit rating 32 A at 40 °C
Long-time pick-up adjustment type Ir (thermal protection) Adjustable
[Ir] long-time protection pick-up adjustment range 0.7...1 x In
Long-time protection delay adjustment type tr Fixed
Neutral protection settings No protection (3D)
Instantaneous protection pick-up adjustment type Ii Fixed
[Ii] instantaneous protection pick-up adjustment range 600 A
Earth-leakage protection Without
Number of slots for electrical auxiliaries 1 slot(s) for auxiliary switch OF, 1 slot(s) for alarm switch SD, 1 slot(s) for voltage release MN or MX
Local signalling Flag (green) for presence of auxiliary contacts
Width (W) 108 mm
Height (H) 137 mm
Depth (D) 80 mm
Net weight 1.42 kg
Colour Grey (RAL 7016)

Environment 10

Standards EN/IEC 60947-2
Overvoltage category III
Electrical shock protection class Class I on front face
Pollution degree 3 conforming to IEC 60664-1
IP degree of protection IP40 conforming to IEC 60529
IK degree of protection IK07 conforming to IEC 62262
Ambient air temperature for operation -25…70 °C
Ambient air temperature for storage -50…85 °C
Relative humidity 0…95 %
Operating altitude 2000 m without derating, 5000 m with derating
Show all 89 specifications ↓ Show less ↑30 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number C11N6TM032B
Type designation NSXm 63N
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 22

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 13.000 cm
Package 1 Width 13.000 cm
Package 1 Length 21.000 cm
Package 1 Weight 1.480 kg
Unit Type of Package 2 S03
Number of Units in Package 2 6
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 10.190 kg
Unit Type of Package 3 P12
Number of Units in Package 3 144
Package 3 Height 150.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 254.490 kg
Shipping weight 1.42 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for C11N6TM032B

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • EN/IEC 60947-2
Quick answers

Questions about the NSXm 63N

What is the rated current of NSXm 63N?

The rated current of NSXm 63N is 32 A.

Which supply voltage is NSXm 63N rated for?

The rated operational voltage of NSXm 63N is 690 V AC.

What is the HS code of NSXm 63N for customs?

The tariff (HS) code on file for NSXm 63N is 853620.

Where does NSXm 63N ship from, and how fast?

NSXm 63N ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
