Part number
C11F3TM063B
Model no
NSXm 63F
$188.49 On request Dispatch — · From TürkiyeGet a Quote

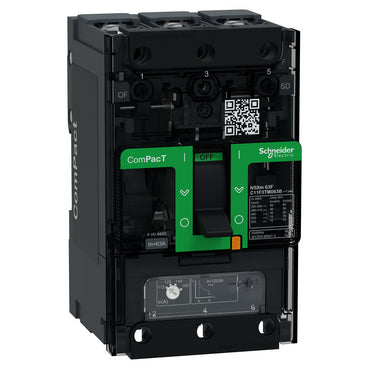

Schneider Electric C11F3TM063B ComPacT NSXm 63F 3P 63 A 36 kA TM-D Fixed Moulded Case Circuit Breaker

Schneider Electric C11F3TM063B - ComPacT NSXm 63F, 3P, 63 A, 36 kA Icu, TM-D trip unit.

Rated current
63 A
Rated operational voltage
690 V AC
Poles
3P
Description

About the NSXm 63F

The Schneider Electric C11F3TM063B is a 3P ComPacT NSXm 63F moulded case circuit breaker rated 63 A at 40°C, built on a TM-D thermal-magnetic trip unit with 36 kA breaking capacity (Icu) at 380/415 V AC. It is a fixed-mounting device with front compression lug or busbar connection for low-voltage distribution circuits up to 690 V AC.

Certifications & Standards

  • EN/IEC 60947-2

Selection Notes

Choose the F performance level (36 kA Icu at 380/415 V AC) when the prospective short-circuit current at the installation point stays at or below that rating; move to the lower-breaking-capacity B version or the higher-breaking-capacity N version in the same NSXm frame if the fault-level study gives a different result. The TM-D trip unit has a fixed long-time delay with pickup adjustable over 0.7...1 x In range and a fixed instantaneous pickup at 800 A, so downstream coordination relies on current discrimination rather than time grading.

Specification

Full specification

87 values · Last verified 30 Oct 2026

Main 20

Range ComPacT
Product name ComPacT NSXm
Device short name NSXm 63F
Product or component type Circuit breaker
Device application Distribution
Poles description 3P
Protected poles description 3D
[In] rated current 63 A at 40 °C
[Ue] rated operational voltage 690 V AC 50/60 Hz
Network type AC
Network frequency 50/60 Hz
Suitability for isolation Yes conforming to IEC 60947-2
Utilisation category Category A
[Icu] rated ultimate short-circuit breaking capacity 85 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2, 36 kA Icu at 380...415 V AC 50/60 Hz conforming to IEC 60947-2, 35 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 15 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2, 10 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2
Performance level F 36 kA 415 V AC
Trip unit name TM-D
Trip unit technology Thermal-magnetic
Trip unit protection functions LI
Control type Toggle
Circuit breaker mounting mode Fixed

Complementary 27

[Ui] rated insulation voltage 800 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage 8 kV
[Ics] rated service short-circuit breaking capacity 85 kA at 220...240 V AC 50/60 Hz conforming to IEC 60947-2, 36 kA at 380...415 V AC 50/60 Hz conforming to IEC 60947-2, 30 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2, 10 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2, 10 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2
Mechanical durability 20000 cycles
Electrical durability 20000 cycles at 440 V In/2, 10000 cycles at 440 V In, 10000 cycles at 690 V In/2, 5000 cycles at 690 V In
Power dissipation per pole 5.7 W
Mounting support Backplate
Mounting position Horizontal and vertical, Flat on the back
Upside connection Front
Downside connection Front
Connection terminals compression lug/busbar
Connection pitch 35 mm with spreaders, 27 mm without spreaders
9 mm pitches 9 module
Trip unit rating 63 A at 40 °C
Long-time pick-up adjustment type Ir (thermal protection) Adjustable
[Ir] long-time protection pick-up adjustment range 0.7...1 x In
Long-time protection delay adjustment type tr Fixed
Instantaneous protection pick-up adjustment type Ii Fixed
[Ii] instantaneous protection pick-up adjustment range 800 A
Earth-leakage protection Without
Number of slots for electrical auxiliaries 1 slot(s) for auxiliary switch OF, 1 slot(s) for alarm switch SD, 1 slot(s) for voltage release MN or MX
Local signalling Flag (green) for presence of auxiliary contacts
Width (W) 81 mm
Height (H) 137 mm
Depth (D) 80 mm
Net weight 1.06 kg
Colour Grey (RAL 7016)

Environment 10

Standards EN/IEC 60947-2
Overvoltage category III
Electrical shock protection class Class I on front face
Pollution degree 3 conforming to IEC 60664-1
IP degree of protection IP40 conforming to IEC 60529
IK degree of protection IK07 conforming to IEC 62262
Ambient air temperature for operation -25…70 °C
Ambient air temperature for storage -50…85 °C
Relative humidity 0…95 %
Operating altitude 2000 m without derating, 5000 m with derating
Show all 87 specifications ↓ Show less ↑30 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number C11F3TM063B
Type designation NSXm 63F
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 22

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 8.1 cm
Package 1 Width 13.7 cm
Package 1 Length 8 cm
Package 1 Weight 1.153 kg
Unit Type of Package 2 S03
Number of Units in Package 2 9
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 12.29 kg
Unit Type of Package 3 P12
Number of Units in Package 3 216
Package 3 Height 150 cm
Package 3 Width 80 cm
Package 3 Length 120 cm
Package 3 Weight 304.89 kg
Shipping weight 1.06 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for C11F3TM063B

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • EN/IEC 60947-2
Quick answers

Questions about the NSXm 63F

What is the rated current of NSXm 63F?

The rated current of NSXm 63F is 63 A.

Which supply voltage is NSXm 63F rated for?

The rated operational voltage of NSXm 63F is 690 V AC.

What is the HS code of NSXm 63F for customs?

The tariff (HS) code on file for NSXm 63F is 85362090.
