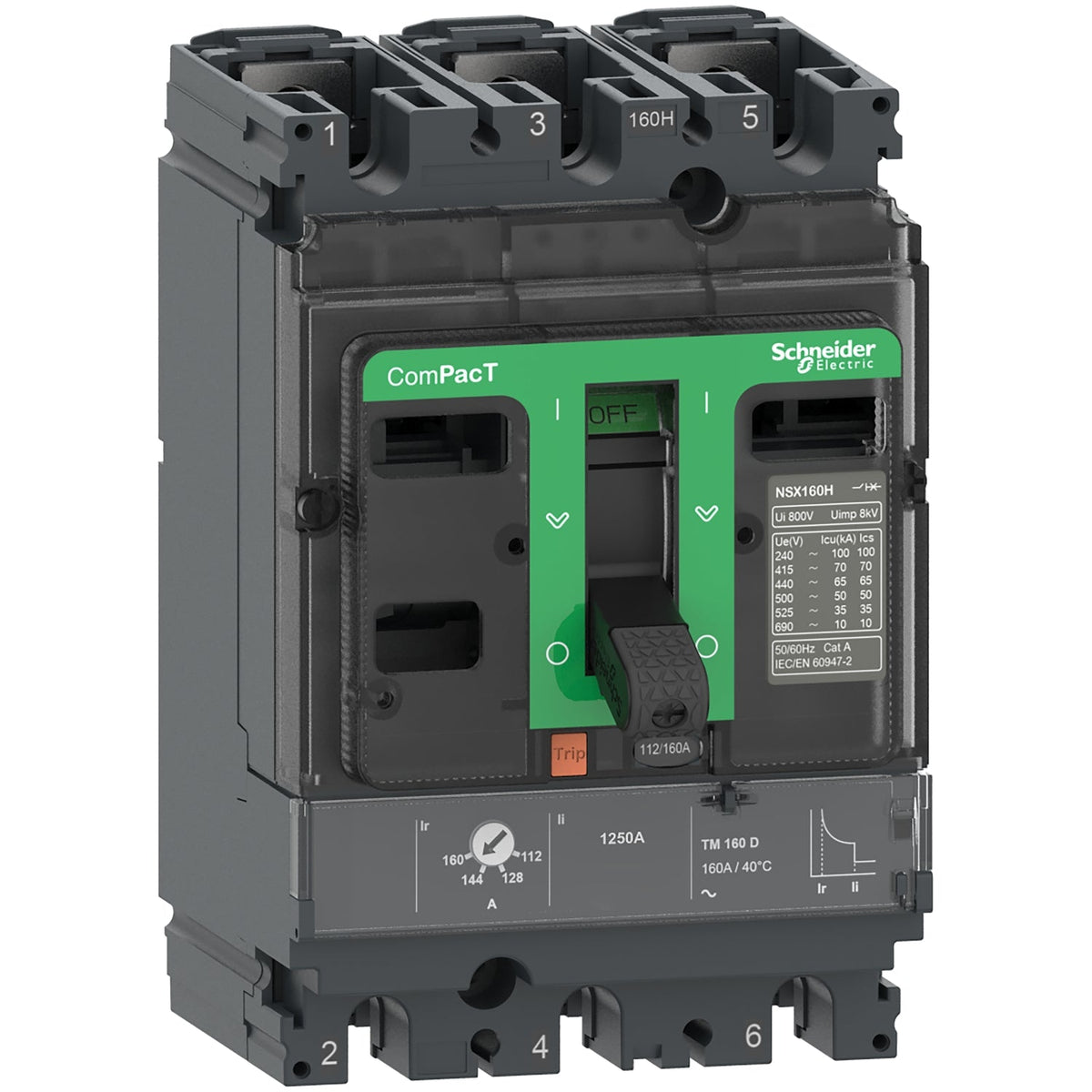

Schneider Electric C10R3TM040 ComPacT NSX100R 3P 40 A 200 kA TM-D Fixed Moulded Case Circuit Breaker

Schneider Electric NSX100R 3P 40 A, 200 kA Icu at 415 V AC, TM-D trip unit.

Rated current
40 A
Rated operational voltage
690 V AC
Description

About the NSX100R

The Schneider Electric C10R3TM040 is a ComPacT NSX100R molded case circuit breaker built for distribution circuits. Configured as 3P, it is rated for 40 A continuous current with a 200 kA breaking capacity (Icu) at 415 V AC, and carries a TM-D thermal-magnetic trip unit for overload and short-circuit protection (LI).

Certifications & Standards

  • EN/IEC 60947-2

Selection Notes

The C10R3TM040 sits on the NSX100R frame (the highest breaking-capacity frame in the ComPacT NSX100 line, built for applications close to the supply transformer) with an adjustable TM-D trip unit: the long-time pick-up Ir can be set from 0.7 to 1 x In, so the same physical breaker covers a current range below its 40 A nameplate rating without changing the device. The 200 kA Icu at 415 V AC sets how far downstream from the source this breaker can sit before a lower-breaking-capacity frame becomes unsafe to use. It also carries a Yes rating for isolation duty under EN/IEC 60947-2, so a correctly installed unit can serve as the circuit's local disconnecting means.

Specification

Full specification

79 values · Last verified 30 Oct 2026

Main 20

Range ComPacT
Product name ComPacT NSX
Device short name NSX100R
Product or component type Circuit breaker
Device application Distribution
Poles description 3P
Protected poles description 3D
[In] rated current 40 A at 40 °C
[Ue] rated operational voltage 690 V AC 50/60 Hz
Network type AC
Network frequency 50/60 Hz
Suitability for isolation Yes conforming to EN/IEC 60947-2
Utilisation category Category A
Breaking capacity 200 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, 200 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 200 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 80 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2, 65 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2, 45 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
Breaking capacity code R 200 kA 415 V AC
Trip unit name TM-D
Trip unit technology Thermal-magnetic
Trip unit protection functions LI
Control type Toggle
Circuit breaker mounting mode Fixed

Complementary 25

[Ui] rated insulation voltage 800 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage 8 kV
[Ics] rated service breaking capacity 200 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, 200 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 200 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2, 80 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2, 65 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2, 45 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
Mechanical durability 20000 cycles
Electrical durability 20000 cycles at 440 V In/2, 10000 cycles at 440 V In, 10000 cycles at 690 V In/2, 5000 cycles at 690 V In
Power dissipation per pole 5.47 W
Mounting support Backplate
Mounting position Horizontal and vertical, Flat on the back
Upside connection Front
Downside connection Front
Connection pitch 35 mm
Protection type L : for overload protection (thermal), I : for short-circuit protection (magnetic)
Trip unit rating 40 A at 40 °C
Long-time pick-up adjustment type Ir (thermal protection) Adjustable
[Ir] long-time protection pick-up adjustment range 0.7...1 x In
Long-time protection delay adjustment type tr Fixed
[tr] long-time delay adjustment range 120…400 s at 1.5 x In, 15 s at 6 x Ir
Instantaneous protection pick-up adjustment type Ii Fixed
[Ii] instantaneous protection pick-up adjustment range 500 A
Earth-leakage protection Without
Number of slots 5 slot(s)
Width (W) 105 mm
Height (H) 161 mm
Depth (D) 86 mm
Net weight 2.05 kg

Environment 10

Standards EN/IEC 60947-2
Overvoltage category III
Electrical shock protection class Class II on front face
Pollution degree 3 conforming to IEC 60664-1
IP degree of protection IP40 conforming to IEC 60529
IK degree of protection IK07 conforming to IEC 62262
Ambient air temperature for operation -25…70 °C
Ambient air temperature for storage -50…85 °C
Relative humidity 0…95 %
Operating altitude 0...2000 m without derating, 2000 m...5000 m with derating
Show all 79 specifications ↓ Show less ↑24 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number C10R3TM040
Type designation NSX100R
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 16

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 14.000 cm
Package 1 Width 11.200 cm
Package 1 Length 19.500 cm
Package 1 Weight 1.820 kg
Unit Type of Package 2 S03
Number of Units in Package 2 7
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 13.134 kg
Shipping weight 2.05 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
