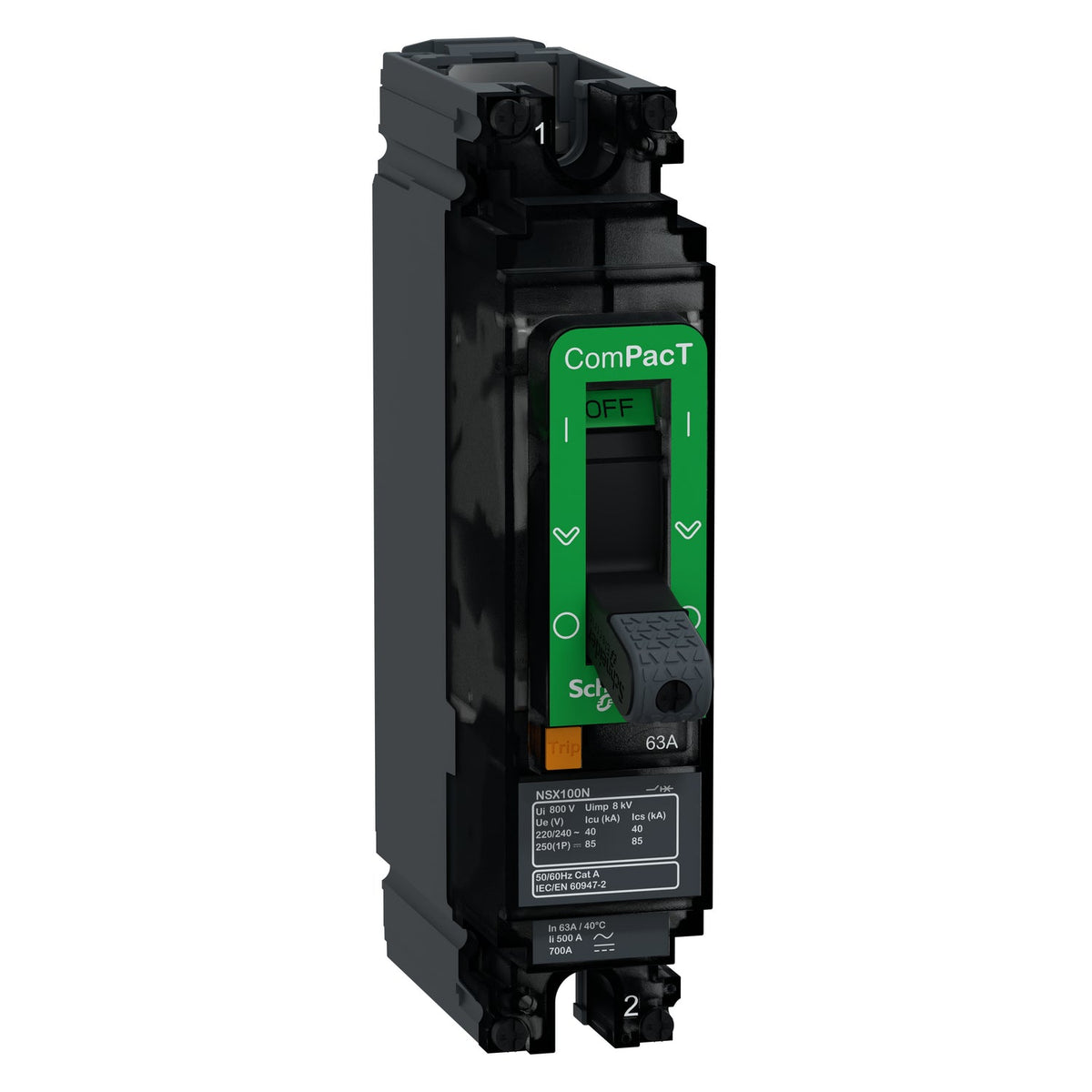

Schneider Electric NSX100N 1P 63 A, 25 kA Icu at 240 V AC, TM-D trip unit.
The Schneider Electric C10N1TM063 is a ComPacT NSX100N molded case circuit breaker built for distribution circuits. Configured as 1P, it is rated for 63 A continuous current with a 25 kA breaking capacity (Icu) at 240 V AC, and carries a TM-D thermal-magnetic trip unit for overload and short-circuit protection (LI). The breaker also carries a DC rating for 250 V circuits.
The C10N1TM063 uses a fixed TM-D trip unit on the NSX100N frame (the standard breaking-capacity frame in the ComPacT NSX100 line): both the thermal pick-up (1 x In) and the magnetic instantaneous threshold are set at the factory, so there are no adjustments to make or verify on site. That fixed setting suits a final circuit sized directly to the 63 A load it protects. The 25 kA Icu at 240 V AC is the figure to check against the prospective fault current at the installation point before specifying this frame over a higher-breaking-capacity one. It is also rated Yes for isolation duty under EN/IEC 60947-2, so it can serve as the local disconnecting means for the circuit it protects.
| Range | ComPacT |
|---|---|
| Product name | ComPacT NSX |
| Device short name | NSX100N |
| Product or component type | Circuit breaker |
| Device application | Distribution |
| Poles description | 1P |
| Protected poles description | 1D |
| [In] rated current | 63 A at 40 °C |
| [Ue] rated operational voltage | 277 V AC 50/60 Hz, 250 V DC |
| Network type | AC, DC |
| Network frequency | 50/60 Hz |
| Suitability for isolation | Yes conforming to EN/IEC 60947-2 |
| Utilisation category | Category A |
| Breaking capacity | 25 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA Icu at 250 V DC conforming to IEC 60947-2 |
| Breaking capacity code | N 25 kA 240 V AC |
| Trip unit name | TM-D |
| Trip unit technology | Thermal-magnetic |
| Trip unit protection functions | LI |
| Control type | Toggle |
| Circuit breaker mounting mode | Fixed |
| [Ui] rated insulation voltage | 750 V AC 50/60 Hz conforming to IEC 60947-2 |
|---|---|
| [Uimp] rated impulse withstand voltage | 8 kV conforming to IEC 60947-2 |
| [Ics] rated service breaking capacity | 25 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA at 250 V DC conforming to IEC 60947-2 |
| Mechanical durability | 20000 cycles |
| Electrical durability | 20000 cycles at 277 V In/2, 10000 cycles at 277 V In |
| Power dissipation per pole | 8.61 W |
| Mounting support | Backplate |
| Mounting position | Horizontal and vertical, Flat on the back |
| Upside connection | Front |
| Downside connection | Front |
| Connection pitch | 35 mm |
| Protection type | L : for overload protection (thermal), I : for short-circuit protection (magnetic) |
| Trip unit rating | 63 A at 40 °C |
| Long-time pick-up adjustment type Ir (thermal protection) | Fixed |
| [Ir] long-time protection pick-up adjustment range | 1 x In |
| Long-time protection delay adjustment type tr | Fixed |
| Instantaneous protection pick-up adjustment type Ii | Fixed |
| [Ii] instantaneous protection pick-up adjustment range | 500 A |
| Earth-leakage protection | Without |
| Width (W) | 35 mm |
| Height (H) | 161 mm |
| Depth (D) | 86 mm |
| Net weight | 0.7 kg |
| Standards | EN/IEC 60947-2 |
|---|---|
| Overvoltage category | IV |
| Electrical shock protection class | Class II on front face |
| Pollution degree | 3 conforming to IEC 60664-1 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to IEC 62262 |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -50…85 °C |
| Relative humidity | 0…95 % |
| Operating altitude | 0...2000 m without derating, 2000 m...5000 m with derating |
| Part number | C10N1TM063 |
|---|---|
| Type designation | NSX100N |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Warranty (in months) | 18 |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.000 cm |
| Package 1 Width | 13.000 cm |
| Package 1 Length | 17.500 cm |
| Package 1 Weight | 717.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 9.004 kg |
| Shipping weight | 0.7 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe rated current of NSX100N is 63 A.
The rated operational voltage of NSX100N is 277 V AC.
The tariff (HS) code on file for NSX100N is 853620.
NSX100N ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
