Schneider Electric C10N1TM050 ComPacT NSX100N 1P 50 A 25 kA at 240 V TM-D Fixed Moulded Case Circuit Breaker

% $-124.71

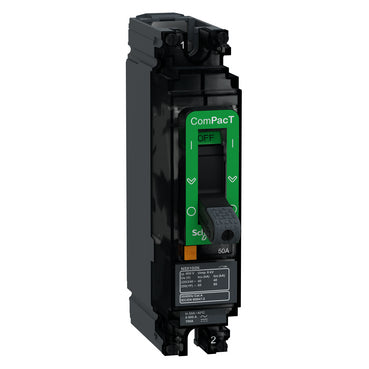

Schneider Electric C10N1TM050 NSX100N moulded case circuit breaker - 50 A 25 kA
Schneider Electric C10N1TM050 NSX100N moulded case circuit breaker - 50 A 25 kA

Schneider Electric C10N1TM050 ComPacT NSX100N 1P 50 A 25 kA at 240 V TM-D Fixed Moulded Case Circuit Breaker

Brand: Schneider Electric
Reference No: C10N1TM050
Catalog No: C10N1TM050
Tariff Code (HS): 85362090
Rated Current: 50 A
Breaking Type: TM-D
Rated Voltage: 277 V
Poles: 1P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$124.71

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric C10N1TM050 is a 1P, 50 A ComPacT NSX100N moulded case circuit breaker fitted with a TM-D thermal-magnetic trip unit rated for 25 kA breaking capacity at 240 V AC. It carries a 277 V rated operational voltage and mounts on a fixed backplate, suited to distribution circuits sized to its 50 A nameplate rating.

Technical Specifications

Reference C10N1TM050
Brand Schneider Electric
Range ComPacT
Device short name NSX100N
Poles 1P
[In] Rated current 50 A at 40 °C
[Ue] Rated operational voltage 277 V
[Ui] Rated insulation voltage 750 V
[Uimp] Rated impulse withstand voltage 8 kV
Breaking capacity (Icu) 25 kA at 220/240 V AC, 50 kA at 250 V DC
Service breaking capacity (Ics) 25 kA at 220/240 V AC, 50 kA at 250 V DC
Trip unit TM-D (thermal-magnetic)
Protection function LI
Adjustment range [Ir] fixed at 1x In; [Ii] fixed 500 A
Suitability for isolation Yes, conforming to EN/IEC 60947-2
Mounting mode Fixed, backplate mount
Connection (upside/downside) Front / Front
Dimensions (W x H x D) 35 x 161 x 86 mm
Net weight 0.7 kg
IP degree of protection IP40
Ambient air temperature (operation) -25...70 °C
Standards EN/IEC 60947-2

Certifications & Standards

  • EN/IEC 60947-2

Selection Notes

The N frame sits at the mid tier of the ComPacT NSX100 breaking-capacity ladder (25 kA at 240 V AC), between the F (36 kA) and H (70 kA) frames of the same ComPacT NSX100 footprint. The TM-D trip unit on this C10N1TM050 variant has its thermal pickup fixed at 1x In, so the 50 A rating is the circuit's protected current with no field adjustment; choose the adjacent current rating in the same N frame if the protected load differs from 50 A.

Technical Details

Short Description
Schneider Electric C10N1TM050 - ComPacT NSX100N 1P 50 A 25 kA TM-D moulded case circuit breaker.
Rated Current (Ampere)
50 A
Rated Voltage (VAC)
277 V
Mounting Type
Fixed, backplate mount
Protection Type
IP40
Catalog No
C10N1TM050
Number of Poles
1P
Delivery Date (Days)
30 days
Model Number
NSX100N
Tariff Code
85362090
