Schneider Electric C10M2TM063 ComPacT NSX100M 2P 63 A 25 kA TM-D Fixed Moulded Case Circuit Breaker

% $-165.37
Schneider Electric C10M2TM063 NSX100M moulded case circuit breaker - 63 A 25 kA
Schneider Electric C10M2TM063 NSX100M moulded case circuit breaker - 63 A 25 kA

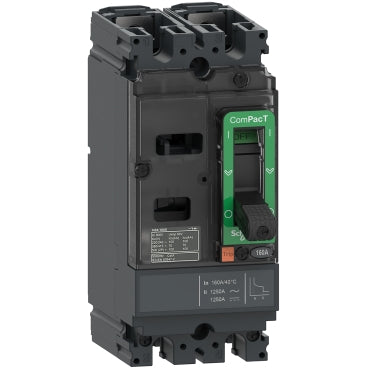

Schneider Electric C10M2TM063 ComPacT NSX100M 2P 63 A 25 kA TM-D Fixed Moulded Case Circuit Breaker

Brand: Schneider Electric
Reference No: C10M2TM063
Catalog No: C10M2TM063
Tariff Code (HS): 85362090
Rated Current: 63 A
Breaking Type: TM-D
Rated Voltage: 690 V
Poles: 2P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$165.37

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric C10M2TM063 is a 2P, 63 A ComPacT NSX100M moulded case circuit breaker fitted with a TM-D thermal-magnetic trip unit rated for 25 kA breaking capacity at 380/415 V AC (1P). It carries a 690 V rated operational voltage and mounts on a fixed backplate, suited to distribution circuits sized to its 63 A nameplate rating.

Technical Specifications

Reference C10M2TM063
Brand Schneider Electric
Range ComPacT
Device short name NSX100M
Poles 2P
[In] Rated current 63 A at 40 °C
[Ue] Rated operational voltage 690 V
[Ui] Rated insulation voltage 750 V
[Uimp] Rated impulse withstand voltage 8 kV
Breaking capacity (Icu) 85 kA at 220/240 V AC, 25 kA at 380/415 V AC (1P), 8 kA at 660/690 V AC; 85 kA at 500 V DC (2 poles in series)
Service breaking capacity (Ics) 85 kA at 220/240 V AC, 25 kA at 380/415 V AC (1P), 8 kA at 660/690 V AC; 85 kA at 500 V DC (2 poles in series)
Trip unit TM-D (thermal-magnetic)
Protection function LI
Adjustment range [Ir] fixed at 1x In; [Ii] fixed 500 A
Mounting mode Fixed, backplate mount
Connection (upside/downside) Front / Front
Dimensions (W x H x D) 70 x 161 x 86 mm
Net weight 1.2 kg
IP degree of protection IP40
Ambient air temperature (operation) -25...70 °C
Standards EN/IEC 60947-2

Certifications & Standards

  • EN/IEC 60947-2

Selection Notes

The M frame is the compact 1/2-pole ComPacT NSX100 variant optimised for single-phase AC up to 25 kA at 380/415 V AC (1P) and for DC circuits (85 kA at 250 V DC per pole), rather than the 3/4-pole 3P distribution frames. The TM-D trip unit on this C10M2TM063 variant has its thermal pickup fixed at 1x In, so the 63 A rating is the circuit's protected current with no field adjustment; choose the adjacent current rating in the same M frame if the protected load differs from 63 A.

Technical Details

Short Description
Schneider Electric C10M2TM063 - ComPacT NSX100M 2P 63 A 25 kA TM-D moulded case circuit breaker.
Rated Current (Ampere)
63 A
Rated Voltage (VAC)
690 V
Mounting Type
Fixed, backplate mount
Protection Type
IP40
Catalog No
C10M2TM063
Number of Poles
2P
Delivery Date (Days)
30 days
Model Number
NSX100M
Tariff Code
85362090
