Schneider Electric C10M1TM080 ComPacT NSX100M 1P 80 A 40 kA at 240 V TM-D Fixed Moulded Case Circuit Breaker

% $-152.50

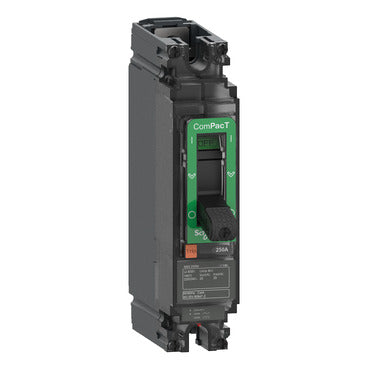

Schneider Electric C10M1TM080 NSX100M moulded case circuit breaker - 80 A 40 kA
Schneider Electric C10M1TM080 NSX100M moulded case circuit breaker - 80 A 40 kA

Schneider Electric C10M1TM080 ComPacT NSX100M 1P 80 A 40 kA at 240 V TM-D Fixed Moulded Case Circuit Breaker

Brand: Schneider Electric
Reference No: C10M1TM080
Catalog No: C10M1TM080
Tariff Code (HS): 85362090
Rated Current: 80 A
Breaking Type: TM-D
Rated Voltage: 277 V
Poles: 1P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$152.50

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric C10M1TM080 is a 1P, 80 A ComPacT NSX100M moulded case circuit breaker fitted with a TM-D thermal-magnetic trip unit rated for 40 kA breaking capacity at 240 V AC. It carries a 277 V rated operational voltage and mounts on a fixed backplate, suited to distribution circuits sized to its 80 A nameplate rating.

Technical Specifications

Reference C10M1TM080
Brand Schneider Electric
Range ComPacT
Device short name NSX100M
Poles 1P
[In] Rated current 80 A at 40 °C
[Ue] Rated operational voltage 277 V
[Ui] Rated insulation voltage 750 V
[Uimp] Rated impulse withstand voltage 8 kV
Breaking capacity (Icu) 40 kA at 220/240 V AC, 85 kA at 250 V DC
Service breaking capacity (Ics) 40 kA at 220/240 V AC, 85 kA at 250 V DC
Trip unit TM-D (thermal-magnetic)
Protection function LI
Adjustment range [Ir] fixed at 1x In; [Ii] fixed 640 A
Mounting mode Fixed, backplate mount
Connection (upside/downside) Front / Front
Dimensions (W x H x D) 35 x 161 x 86 mm
Net weight 0.7 kg
IP degree of protection IP40
Ambient air temperature (operation) -25...70 °C
Standards EN/IEC 60947-2

Certifications & Standards

  • EN/IEC 60947-2

Selection Notes

The M frame is the compact 1/2-pole ComPacT NSX100 variant optimised for single-phase AC up to 40 kA at 240 V AC and for DC circuits (85 kA at 250 V DC per pole), rather than the 3/4-pole 3P distribution frames. The TM-D trip unit on this C10M1TM080 variant has its thermal pickup fixed at 1x In, so the 80 A rating is the circuit's protected current with no field adjustment; choose the adjacent current rating in the same M frame if the protected load differs from 80 A.

Technical Details

Short Description
Schneider Electric C10M1TM080 - ComPacT NSX100M 1P 80 A 40 kA TM-D moulded case circuit breaker.
Rated Current (Ampere)
80 A
Rated Voltage (VAC)
277 V
Mounting Type
Fixed, backplate mount
Protection Type
IP40
Catalog No
C10M1TM080
Number of Poles
1P
Delivery Date (Days)
30 days
Model Number
NSX100M
Tariff Code
85362090
