Schneider Electric C10H3TM080 ComPacT NSX100H 3P 80 A 70 kA TM-D Fixed Moulded Case Circuit Breaker

% $-212.88

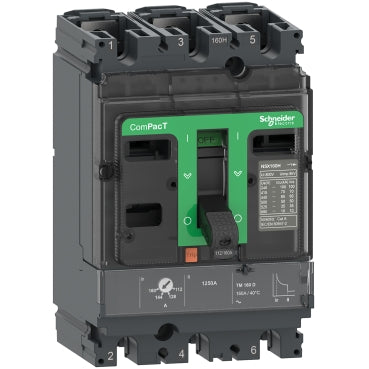

Schneider Electric C10H3TM080 NSX100H moulded case circuit breaker - 80 A 70 kA
Schneider Electric C10H3TM080 NSX100H moulded case circuit breaker - 80 A 70 kA

Schneider Electric C10H3TM080 ComPacT NSX100H 3P 80 A 70 kA TM-D Fixed Moulded Case Circuit Breaker

Brand: Schneider Electric
Reference No: C10H3TM080
Catalog No: C10H3TM080
Tariff Code (HS): 85362090
Rated Current: 80 A
Breaking Type: TM-D
Rated Voltage: 690 V
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$212.88

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric C10H3TM080 is a 3P, 80 A ComPacT NSX100H moulded case circuit breaker fitted with a TM-D thermal-magnetic trip unit rated for 70 kA breaking capacity at 380/415 V AC. It carries a 690 V rated operational voltage and mounts on a fixed backplate, suited to distribution circuits sized to its 80 A nameplate rating.

Technical Specifications

Reference C10H3TM080
Brand Schneider Electric
Range ComPacT
Device short name NSX100H
Poles 3P
[In] Rated current 80 A at 40 °C
[Ue] Rated operational voltage 690 V
[Ui] Rated insulation voltage 800 V
[Uimp] Rated impulse withstand voltage 8 kV
Breaking capacity (Icu) 100 kA at 220/240 V AC, 70 kA at 380/415 V AC, 10 kA at 660/690 V AC
Service breaking capacity (Ics) 100 kA at 220/240 V AC, 70 kA at 380/415 V AC, 10 kA at 660/690 V AC
Trip unit TM-D (thermal-magnetic)
Protection function LI
Adjustment range [Ir] adjustable 0.7...1x In; [Ii] fixed 640 A
Suitability for isolation Yes, conforming to EN/IEC 60947-2
Mounting mode Fixed, backplate mount
Connection (upside/downside) Front / Front
Dimensions (W x H x D) 105 x 161 x 86 mm
Net weight 2.05 kg
IP degree of protection IP40
Ambient air temperature (operation) -25...70 °C
Standards EN/IEC 60947-2

Certifications & Standards

  • EN/IEC 60947-2

Selection Notes

The H frame sits at the top tier of the ComPacT NSX100 breaking-capacity ladder (70 kA at 380/415 V AC), above the N (50 kA) and F (36 kA) frames of the same ComPacT NSX100 footprint. The TM-D trip unit on this C10H3TM080 variant allows thermal pickup to be trimmed 0.7...1x In of the 80 A nameplate rating, giving some margin to match the protected cable or feeder without stepping to a different current size in the H frame.

Technical Details

Short Description
Schneider Electric C10H3TM080 - ComPacT NSX100H 3P 80 A 70 kA TM-D moulded case circuit breaker.
Rated Current (Ampere)
80 A
Rated Voltage (VAC)
690 V
Mounting Type
Fixed, backplate mount
Protection Type
IP40
Catalog No
C10H3TM080
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
NSX100H
Tariff Code
85362090
