Schneider Electric C10F4TM080D1 ComPacT NSX80 DC PV 4P 80 A 10 kA DC TM-DC Fixed Moulded Case Circuit Breaker

% $-499.47

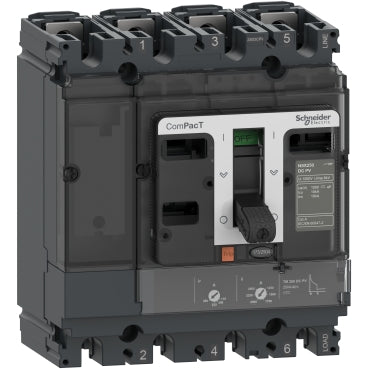

Schneider Electric C10F4TM080D1 NSX80 DC PV moulded case circuit breaker - 80 A 10 kA
Schneider Electric C10F4TM080D1 NSX80 DC PV moulded case circuit breaker - 80 A 10 kA

Schneider Electric C10F4TM080D1 ComPacT NSX80 DC PV 4P 80 A 10 kA DC TM-DC Fixed Moulded Case Circuit Breaker

Brand: Schneider Electric
Reference No: C10F4TM080D1
Catalog No: C10F4TM080D1
Tariff Code (HS): 85362090
Rated Current: 80 A
Breaking Type: TM-DC
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$499.47

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric C10F4TM080D1 is a 4P, 80 A ComPacT NSX80 DC PV moulded case circuit breaker purpose-built for photovoltaic DC distribution. Its TM-DC thermal-magnetic trip unit delivers 10 kA breaking capacity at 1000 V DC (4 poles in series), and it mounts on a fixed backplate rated to the same 1000 V DC insulation level as its operating voltage.

Technical Specifications

Reference C10F4TM080D1
Brand Schneider Electric
Range ComPacT
Device short name NSX80 DC PV
Poles 4P
[In] Rated current 80 A at 40 °C
[Ue] Rated operational voltage 1000 V DC
[Ui] Rated insulation voltage 1000 V DC
[Uimp] Rated impulse withstand voltage 8 kV
Breaking capacity (Icu) 10 kA at 1000 V DC (4 poles in series)
Service breaking capacity (Ics) 10 kA at 1000 V DC
Trip unit TM-DC (thermal-magnetic)
Protection function LI
Adjustment range [Ir] adjustable 0.7...1x In; [Ii] fixed 800 A
Mounting mode Fixed, backplate mount
Connection (upside/downside) Front / Front
Dimensions (W x H x D) 140 x 161 x 86 mm
Net weight 2.8 kg
IP degree of protection IP40
Ambient air temperature (operation) -25...70 °C
Standards EN/IEC 60947-2

Certifications & Standards

  • EN/IEC 60947-2

Selection Notes

The C10F4TM080D1 is the DC PV variant of the ComPacT NSX80 range, built for photovoltaic string and combiner-box circuits rather than the AC distribution F/N/H frame ladder used elsewhere in ComPacT NSX100. With all four poles connected in series for the DC circuit, this C10F4TM080D1 variant's 10 kA breaking capacity applies to the full pole group, not per pole — a detail that matters when sizing the upstream combiner-box protection on a photovoltaic string.

Technical Details

Short Description
Schneider Electric C10F4TM080D1 - ComPacT NSX80 DC PV 4P 80 A 10 kA TM-DC moulded case circuit breaker.
Rated Current (Ampere)
80 A
Mounting Type
Fixed, backplate mount
Protection Type
IP40
Catalog No
C10F4TM080D1
Number of Poles
4P
Delivery Date (Days)
30 days
Model Number
NSX80 DC PV
Tariff Code
85362090
