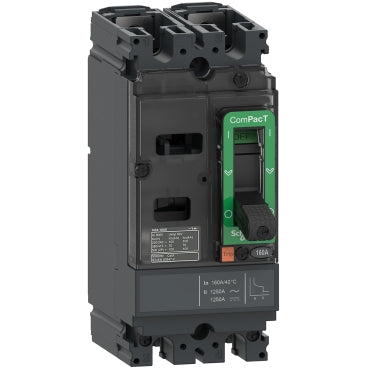

Schneider Electric C10F2TM100 ComPacT NSX100F 2P 100 A 18 kA TM-D Fixed Moulded Case Circuit Breaker

% $-176.57
Schneider Electric C10F2TM100 NSX100F moulded case circuit breaker - 100 A 18 kA
Schneider Electric C10F2TM100 NSX100F moulded case circuit breaker - 100 A 18 kA

Schneider Electric C10F2TM100 ComPacT NSX100F 2P 100 A 18 kA TM-D Fixed Moulded Case Circuit Breaker

Brand: Schneider Electric
Reference No: C10F2TM100
Catalog No: C10F2TM100
Tariff Code (HS): 85362090
Rated Current: 100 A
Breaking Type: TM-D
Rated Voltage: 690 V
Poles: 2P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$176.57

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric C10F2TM100 is a 2P, 100 A ComPacT NSX100F moulded case circuit breaker fitted with a TM-D thermal-magnetic trip unit rated for 18 kA breaking capacity at 380/415 V AC (1P). It carries a 690 V rated operational voltage and mounts on a fixed backplate, suited to distribution circuits sized to its 100 A nameplate rating.

Technical Specifications

Reference C10F2TM100
Brand Schneider Electric
Range ComPacT
Device short name NSX100F
Poles 2P
[In] Rated current 100 A at 40 °C
[Ue] Rated operational voltage 690 V
[Ui] Rated insulation voltage 750 V
[Uimp] Rated impulse withstand voltage 8 kV
Breaking capacity (Icu) 36 kA at 220/240 V AC, 18 kA at 380/415 V AC (1P), 5 kA at 660/690 V AC; 36 kA at 500 V DC (2 poles in series)
Service breaking capacity (Ics) 36 kA at 220/240 V AC, 18 kA at 380/415 V AC (1P), 5 kA at 660/690 V AC; 36 kA at 500 V DC (2 poles in series)
Trip unit TM-D (thermal-magnetic)
Protection function LI
Adjustment range [Ir] fixed at 1x In; [Ii] fixed 800 A
Suitability for isolation Yes, conforming to EN/IEC 60947-2
Mounting mode Fixed, backplate mount
Connection (upside/downside) Front / Front
Dimensions (W x H x D) 70 x 161 x 86 mm
Net weight 1.2 kg
IP degree of protection IP40
Ambient air temperature (operation) -25...70 °C
Standards EN/IEC 60947-2

Certifications & Standards

  • EN/IEC 60947-2

Selection Notes

The F frame sits at the entry tier of the ComPacT NSX100 breaking-capacity ladder (18 kA at 380/415 V AC (1P)), below the N (50 kA) and H (70 kA) frames of the same ComPacT NSX100 footprint. The TM-D trip unit on this C10F2TM100 variant has its thermal pickup fixed at 1x In, so the 100 A rating is the circuit's protected current with no field adjustment; choose the adjacent current rating in the same F frame if the protected load differs from 100 A.

Technical Details

Short Description
Schneider Electric C10F2TM100 - ComPacT NSX100F 2P 100 A 18 kA TM-D moulded case circuit breaker.
Rated Current (Ampere)
100 A
Rated Voltage (VAC)
690 V
Mounting Type
Fixed, backplate mount
Protection Type
IP40
Catalog No
C10F2TM100
Number of Poles
2P
Delivery Date (Days)
30 days
Model Number
NSX100F
Tariff Code
85362090
