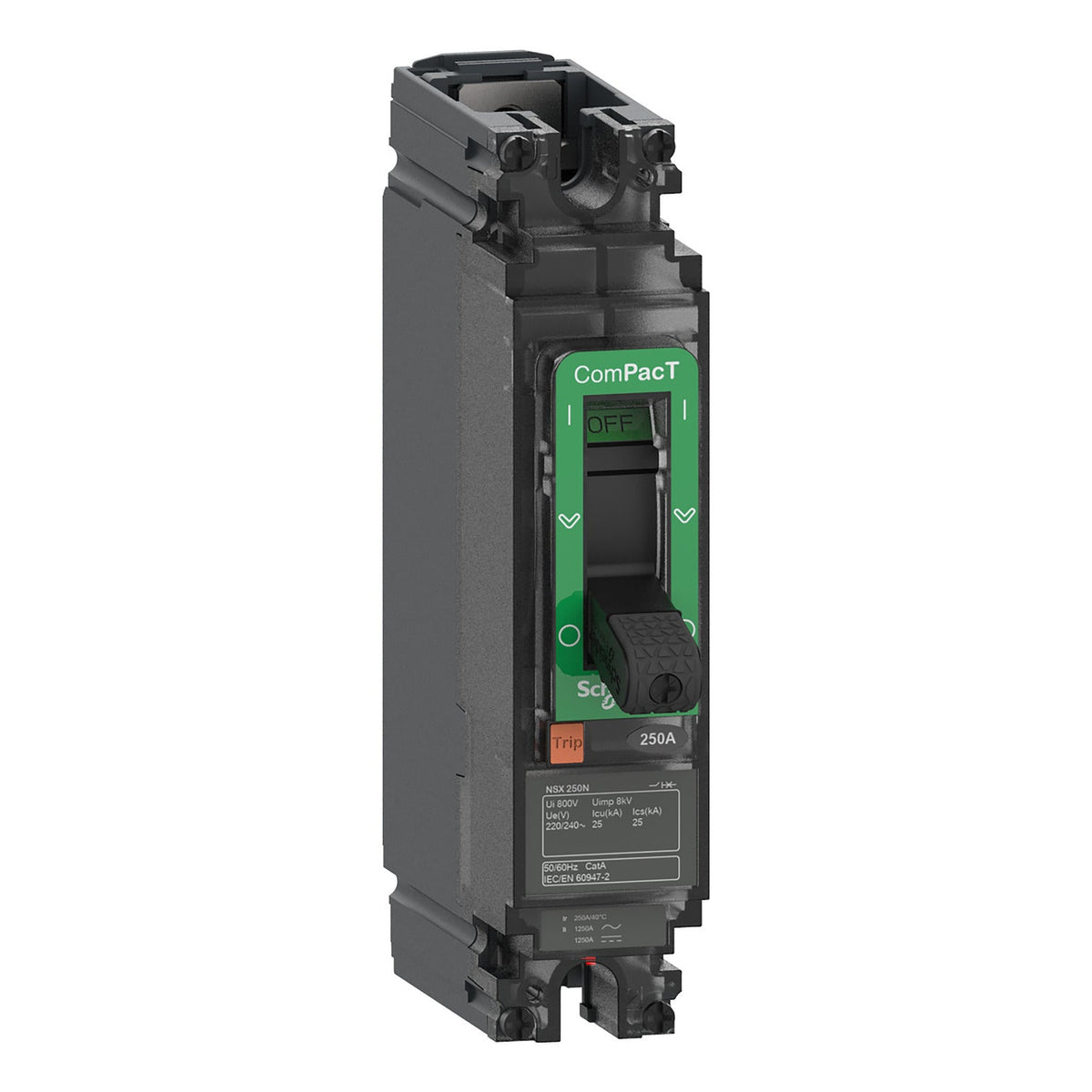

Schneider Electric C10F1TM025 ComPacT NSX100F AC/DC 1P 25 A TM-D, 18 kA Icu at 240 V AC.
The Schneider Electric C10F1TM025 is a 1-pole ComPacT NSX100F AC/DC moulded case circuit breaker with a 25 A thermal-magnetic TM-D trip unit, an 18 kA breaking capacity (Icu) at 220/240 V AC and 36 kA at 250 V DC. It is fixed-mounted with front connections on a 35 mm pitch, rated 277 V AC / 250 V DC operational voltage.
The TM-D trip unit on the C10F1TM025 is thermal-magnetic with fixed thresholds (Ir = 1 x In, Ii = 300 A), unlike the adjustable electronic MicroLogic trip units on the larger NS800/NS1000 frames. Choose the 30 A version of the same NSX100F 1P case for a different continuous rating; both share the same 18 kA Icu at 240 V AC / 36 kA at 250 V DC breaking capacity, so it is the load current, not the fault level, that decides between the two. As a 1-pole AC/DC device it suits single-phase AC or DC circuits rather than 3-phase distribution, where the NS800/NS1000 breakers apply.
| Range | ComPacT |
|---|---|
| Product name | ComPacT NSX |
| Device short name | NSX100F |
| Product or component type | Circuit breaker |
| Device application | Distribution |
| Poles description | 1P |
| Protected poles description | 1D |
| [In] rated current | 25 A at 40 °C |
| [Ue] rated operational voltage | 277 V AC 50/60 Hz, 250 V DC |
| Network type | AC, DC |
| Network frequency | 50/60 Hz |
| Suitability for isolation | Yes conforming to EN/IEC 60947-2 |
| Utilisation category | Category A |
| Breaking capacity | 18 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, 36 kA Icu at 250 V DC conforming to IEC 60947-2 |
| Breaking capacity code | F 18 kA 240 V AC |
| Trip unit name | TM-D |
| Trip unit technology | Thermal-magnetic |
| Trip unit protection functions | LI |
| Control type | Toggle |
| Circuit breaker mounting mode | Fixed |
| [Ui] rated insulation voltage | 750 V AC 50/60 Hz conforming to IEC 60947-2 |
|---|---|
| [Uimp] rated impulse withstand voltage | 8 kV conforming to IEC 60947-2 |
| [Ics] rated service breaking capacity | 18 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, 36 kA at 250 V DC conforming to IEC 60947-2 |
| Mechanical durability | 20000 cycles |
| Electrical durability | 20000 cycles at 277 V In/2, 10000 cycles at 277 V In |
| Power dissipation per pole | 4.01 W |
| Mounting support | Backplate |
| Mounting position | Horizontal and vertical, Flat on the back |
| Upside connection | Front |
| Downside connection | Front |
| Connection pitch | 35 mm |
| Protection type | L : for overload protection (thermal), I : for short-circuit protection (magnetic) |
| Trip unit rating | 25 A at 40 °C |
| Long-time pick-up adjustment type Ir (thermal protection) | Fixed |
| [Ir] long-time protection pick-up adjustment range | 1 x In |
| Long-time protection delay adjustment type tr | Fixed |
| Instantaneous protection pick-up adjustment type Ii | Fixed |
| [Ii] instantaneous protection pick-up adjustment range | 300 A |
| Earth-leakage protection | Without |
| Width (W) | 35 mm |
| Height (H) | 161 mm |
| Depth (D) | 86 mm |
| Net weight | 0.7 kg |
| Standards | EN/IEC 60947-2 |
|---|---|
| Overvoltage category | IV |
| Electrical shock protection class | Class II on front face |
| Pollution degree | 3 conforming to IEC 60664-1 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to IEC 62262 |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -50…85 °C |
| Relative humidity | 0…95 % |
| Operating altitude | 0...2000 m without derating, 2000 m...5000 m with derating |
| Part number | C10F1TM025 |
|---|---|
| Type designation | NSX100F |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Warranty (in months) | 18 |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.3 cm |
| Package 1 Width | 13.0 cm |
| Package 1 Length | 17.5 cm |
| Package 1 Weight | 738.0 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 9.24 kg |
| Shipping weight | 0.7 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
