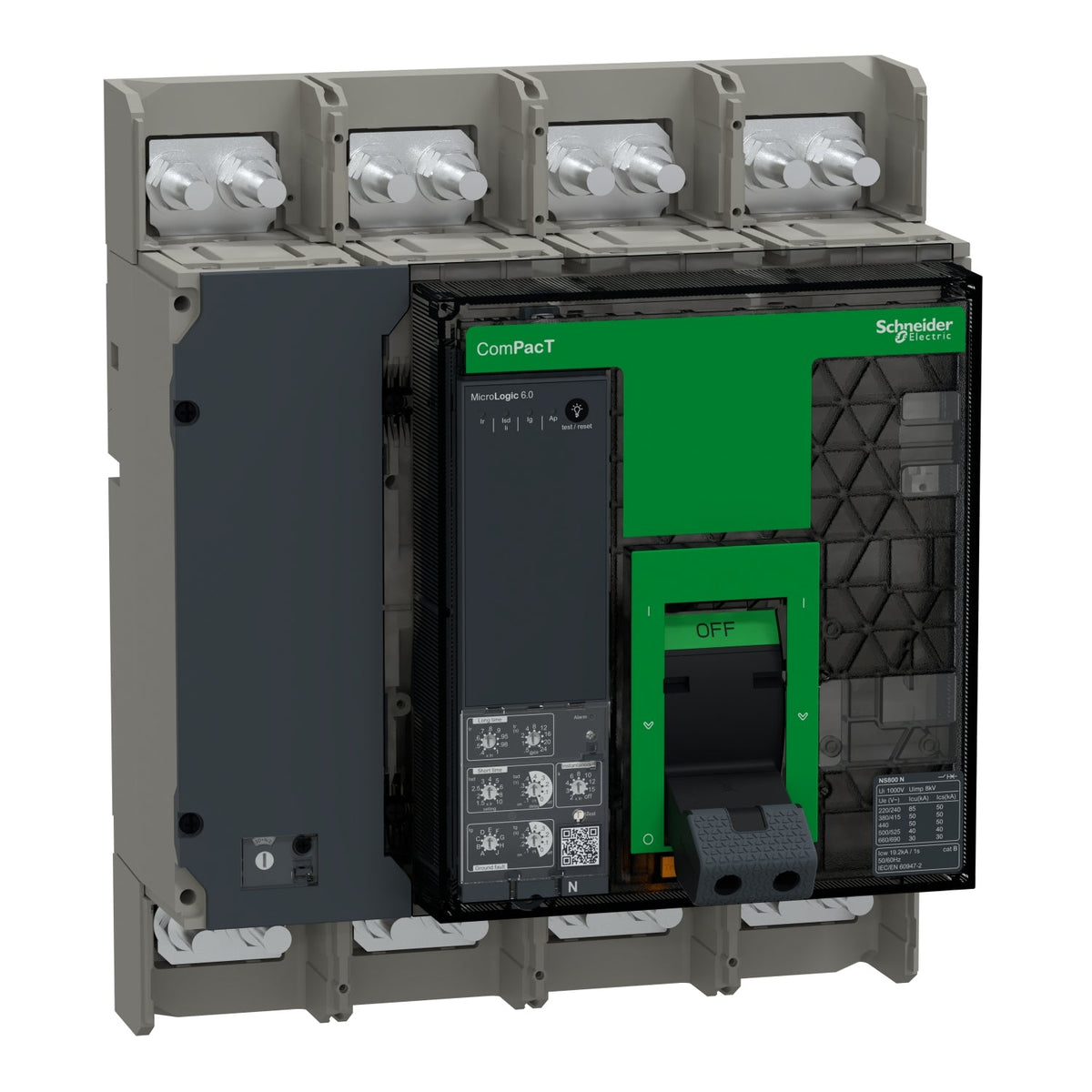

Schneider Electric C080N460FM ComPacT NS800N 4P 800 A 50 kA MicroLogic 6.0 Moulded Case Circuit Breaker

Schneider Electric C080N460FM ComPacT NS800N 4P 800 A, 50 kA Icu, MicroLogic 6.0 trip unit.

Rated current
800 A
Rated operational voltage
690 V AC
Poles
4P
Description

About the C080N460FM

C080N460FM is Schneider Electric's 4-pole ComPacT NS800N moulded case circuit breaker, rated 800 A with 50 kA Icu at 380/415 V AC. Its MicroLogic 6.0 trip unit provides overload (L), short-time delayed short-circuit (S), instantaneous (I) and ground-fault (G) protection; the breaker is fixed-mounted, front-connected at both ends, and rated for 690 V AC operation.

Certifications & Standards

  • IECEE CB Scheme
  • EN/IEC 60947-2

Selection Notes

The MicroLogic 6.0 trip unit on the C080N460FM is configured for overload (L), short-time delayed short-circuit (S), instantaneous (I) and ground-fault (G) protection. Stacking G (ground-fault) on top of L-S-I gives this trip unit adjustable earth-fault tripping as well as time-graded short-circuit discrimination, useful on solidly grounded systems that would otherwise need a separate earth-fault relay. In the NS800 case size, this N-frame breaker is the standard breaking capacity option (50 kA Icu at 380/415 V AC); the H-frame (70 kA Icu) and the L-frame (150 kA Icu) versions share the same case and accessories but trade breaking capacity for cost or vice versa. The A- and E-suffix trip units in the same frame add an ammeter or energy meter respectively, for installations that want local metering without extra hardware. As a 4-pole unit it supports neutral protection options (no protection, half-rated N/2, or full-rated 4D) rather than the fixed 3-pole configuration.

Specification

Full specification

92 values · Last verified 30 Oct 2026

Main 21

Range ComPacT
Product name ComPacT NS new generation
Range of product ComPacT NS630b...1600 new generation
Product or component type Circuit breaker
Device application Distribution
Number of poles 4P
Protected poles description 4D
Neutral position Left
[In] rated current 800 A at 50 °C
[Ue] rated operational voltage 690 V AC 50/60 Hz
Network type AC
Network frequency 50/60 Hz
Suitability for isolation Yes conforming to EN/IEC 60947-2
Utilisation category Category B
Breaking capacity 85 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 40 kA Icu at 500/525 V AC 50/60 Hz conforming to IEC 60947-2, 30 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
Breaking capacity code N 50 kA 415 V AC
Trip unit name MicroLogic 6.0
Trip unit technology Electronic
Trip unit protection functions LSIG
Control type Manually operated
Mounting mode Fixed

Complementary 37

[Ui] rated insulation voltage 800 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947-2
[Ics] rated service breaking capacity 50 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2, 40 kA at 500/525 V AC 50/60 Hz conforming to IEC 60947-2, 30 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
[Icw] rated short-time withstand current 19.2 kA 1 s conforming to IEC 60947-2
Mechanical durability 10000 cycles
Electrical durability 2000 cycles at 690 V In, 4000 cycles at 690 V In/2, 5000 cycles at 440 V In, 6000 cycles at 440 V In/2
Power losses 15 W
Mounting support Backplate
Upside connection Front
Downside connection Front
Connection pitch 70 mm
Protection type L : for overload protection (long time), S : for short time short-circuit protection, I : for instantaneous short-circuit protection, G : for ground fault protection
Trip unit rating 800 A at 50 °C
Long-time pick-up adjustment type Ir (thermal protection) Adjustable 9 settings
[Ir] long-time protection pick-up adjustment range 0.4...1 x In
Long-time protection delay adjustment type tr Adjustable 9 settings
[tr] long-time delay adjustment range 12.5…600 s at 1.5 x Ir, 0.5…24 s at 6 x Ir, 0.7…16.6 s at 7.2 x Ir
Thermal memory 20 mn
Short-time protection pick-up adjustment type Isd Adjustable 9 settings
[Isd] Short-time protection pick-up adjustment range 1.5...10 x Ir
Short-time protection delay adjustment type tsd Adjustable
[tsd] short-time delay adjustment range 0.1…0.4 s I²t=on, 0…0.4 s I²t=off
Instantaneous protection pick-up adjustment type Ii Adjustable
[Ii] instantaneous protection pick-up adjustment range Off, 2...15 x In
Ground-fault protection pick-up adjustment type Ig Adjustable 9 settings
[Ig] ground-fault pick-up adjustment range 0.3...1 x In for In <= 400 A, 0.2...1 x In for 400 A < In < 1250 A, 500...1200 A for In >= 1250 A
Ground-fault protection time delay adjustment type tg Adjustable
[tg] Ground-fault time delay adjustment range 0.1…0.4 s I²t=on, 0…0.4 s I²t=off
Earth-leakage protection Without
Neutral protection setting No protection (3D), 0.5 x Ir (3D + N/2), 1 x Ir (4D)
Zone selective interlocking ZSI Without
Auxiliary contact composition 1 NO/NC
Local signalling 4 LEDs (red) for fault indication, 1 LED (yellow) for overload
Width (W) 280 mm
Height (H) 327 mm
Depth (D) 147 mm
Net weight 18 kg

Environment 11

Standards EN/IEC 60947-2
Product certifications IECEE CB Scheme
Overvoltage category III
Electrical shock protection class Class II on front face
Pollution degree 3 conforming to IEC 60947
IP degree of protection IP40 conforming to IEC 60529
IK degree of protection IK07 conforming to EN 50102
Ambient air temperature for operation -25…70 °C
Ambient air temperature for storage -50…85 °C
Relative humidity 0…95 %
Operating altitude 0...2000 m without derating, 2000 m...5000 m with derating
Show all 92 specifications ↓ Show less ↑23 more values in Identification, Contractual warranty, Logistics.

Identification 6

Part number C080N460FM
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 16

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 30.000 cm
Package 1 Width 37.000 cm
Package 1 Length 38.000 cm
Package 1 Weight 15.894 kg
Unit Type of Package 2 P12
Number of Units in Package 2 4
Package 2 Height 45.000 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 77.580 kg
Shipping weight 18.0 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
