Part number
C063H45EFM
$2,392.75 On request Dispatch — · From TürkiyeGet a Quote

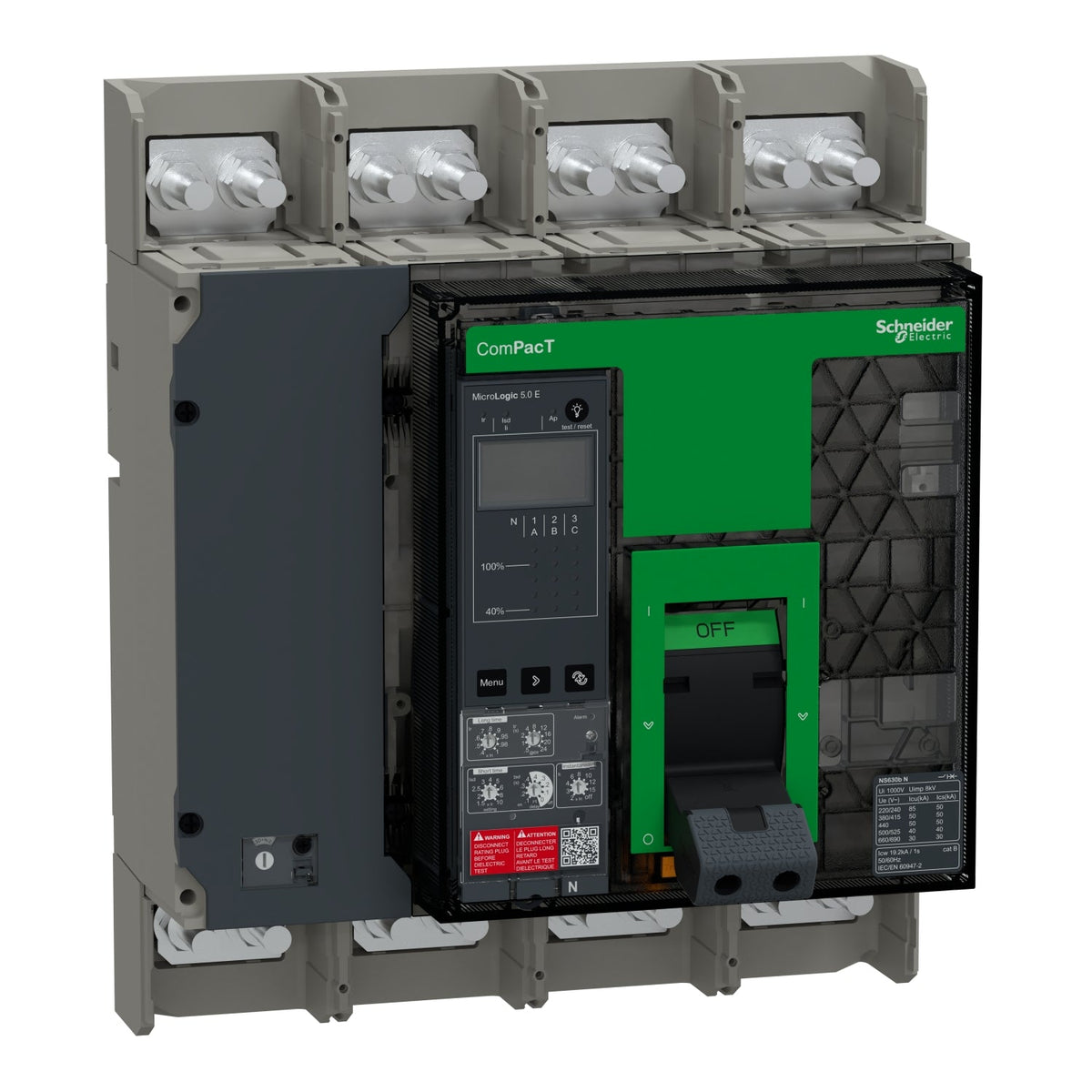

Schneider Electric C063H45EFM ComPacT NS630bH 4P 630 A 70 kA MicroLogic 5.0E Moulded Case Circuit Breaker

C063H45EFM – ComPacT NS630bH 4P 630 A, 70 kA Icu at 380/415 V MCCB.

Rated current
630 A
Rated operational voltage
690 V AC
Poles
4P
Display
LCD display (Energy meter)
Description

About the C063H45EFM

The Schneider Electric C063H45EFM is a 4-pole ComPacT NS630bH moulded case circuit breaker rated 630 A, with a 70 kA breaking capacity (Icu) at 380/415 V AC. It is fitted with a MicroLogic 5.0 E trip unit delivering long-time overload, short-time delay and instantaneous short-circuit protection (LSI), is fixed-mounted and manually operated, and carries a 690 V rated operational voltage for industrial distribution switchboards.

Certifications & Standards

  • IECEE CB Scheme
  • EN/IEC 60947-2

Selection Notes

Its LSI trip unit adds an adjustable short-time delay (Isd/tsd) on top of long-time overload and instantaneous protection, which lets this breaker hold position in a selectivity study against downstream devices instead of tripping instantaneously on every fault. Pick the base 2.0-series LI variant instead when the circuit is a final sub-distribution feeder with no coordination requirement. The H-frame rating gives it 70 kA Icu at 380/415 V AC; within the NS630bH line this is the breaking-capacity class to pick when the calculated prospective short-circuit current at the installation point is at or below that figure without derating to a higher class.

Specification

Full specification

84 values · Last verified 30 Oct 2026

Main 21

Range ComPacT
Product name ComPacT NS new generation
Range of product ComPacT NS630b...1600 new generation
Product or component type Circuit breaker
Device application Distribution
Number of poles 4P
Protected poles description 4D
Neutral position Left
[In] rated current 630 A at 50 °C
[Ue] rated operational voltage 690 V AC 50/60 Hz
Network type AC
Network frequency 50/60 Hz
Suitability for isolation Yes conforming to EN/IEC 60947-2
Utilisation category Category B
Breaking capacity 85 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, 70 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 65 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA Icu at 500/525 V AC 50/60 Hz conforming to IEC 60947-2, 42 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
Breaking capacity code H 70 kA 415 V AC
Trip unit name MicroLogic 5.0 E
Trip unit technology Electronic
Trip unit protection functions LSI
Control type Manually operated
Mounting mode Fixed

Complementary 35

[Ui] rated insulation voltage 800 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947-2
[Ics] rated service breaking capacity 50 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2, 40 kA at 500/525 V AC 50/60 Hz conforming to IEC 60947-2, 30 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
[Icw] rated short-time withstand current 19.2 kA 1 s conforming to IEC 60947-2
Mechanical durability 10000 cycles
Electrical durability 2000 cycles at 690 V In, 4000 cycles at 690 V In/2, 5000 cycles at 440 V In, 6000 cycles at 440 V In/2
Power losses 10 W
Mounting support Backplate
Upside connection Front
Downside connection Front
Connection pitch 70 mm
Protection type L : for overload protection (long time), S : for short time short-circuit protection, I : for instantaneous short-circuit protection
Trip unit rating 630 A at 50 °C
Long-time pick-up adjustment type Ir (thermal protection) Adjustable 9 settings
[Ir] long-time protection pick-up adjustment range 0.4...1 x In
Long-time protection delay adjustment type tr Adjustable 9 settings
[tr] long-time delay adjustment range 12.5…600 s at 1.5 x Ir, 0.5…24 s at 6 x Ir, 0.7…16.6 s at 7.2 x Ir
Thermal memory 20 mn
Short-time protection pick-up adjustment type Isd Adjustable 9 settings
[Isd] Short-time protection pick-up adjustment range 1.5...10 x Ir
Short-time protection delay adjustment type tsd Adjustable
[tsd] short-time delay adjustment range 0.1…0.4 s I²t=on, 0…0.4 s I²t=off
Instantaneous protection pick-up adjustment type Ii Adjustable
[Ii] instantaneous protection pick-up adjustment range Off, 2...15 x In
Earth-leakage protection Without
Neutral protection setting No protection (3D), 0.5 x Ir (3D + N/2), 1 x Ir (4D)
Zone selective interlocking ZSI With
Auxiliary contact composition 1 NO/NC
Local signalling 4 LEDs (red) for fault indication, 1 LED (yellow) for overload
Display type LCD display
Type of measurement Energy meter
Width (W) 280 mm
Height (H) 327 mm
Depth (D) 147 mm
Net weight 18 kg

Environment 11

Standards EN/IEC 60947-2
Product certifications IECEE CB Scheme
Overvoltage category III
Electrical shock protection class Class II on front face
Pollution degree 3 conforming to IEC 60947
IP degree of protection IP40 conforming to IEC 60529
IK degree of protection IK07 conforming to EN 50102
Ambient air temperature for operation -25…70 °C
Ambient air temperature for storage -40…85 °C
Relative humidity 0…95 %
Operating altitude 0...2000 m without derating, 2000 m...5000 m with derating
Show all 84 specifications ↓ Show less ↑17 more values in Identification, Contractual warranty, Logistics.

Identification 6

Part number C063H45EFM
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 10

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 37.0 cm
Package 1 Width 38.0 cm
Package 1 Length 30.0 cm
Package 1 Weight 15.97 kg
Shipping weight 18.0 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for C063H45EFM

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CB Scheme
  • EN/IEC 60947-2
Quick answers

Questions about the C063H45EFM

What is the rated current of C063H45EFM?

The rated current of C063H45EFM is 630 A.

Which supply voltage is C063H45EFM rated for?

The rated operational voltage of C063H45EFM is 690 V AC.

What is the HS code of C063H45EFM for customs?

The tariff (HS) code on file for C063H45EFM is 853620.

Where does C063H45EFM ship from, and how fast?

C063H45EFM ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
