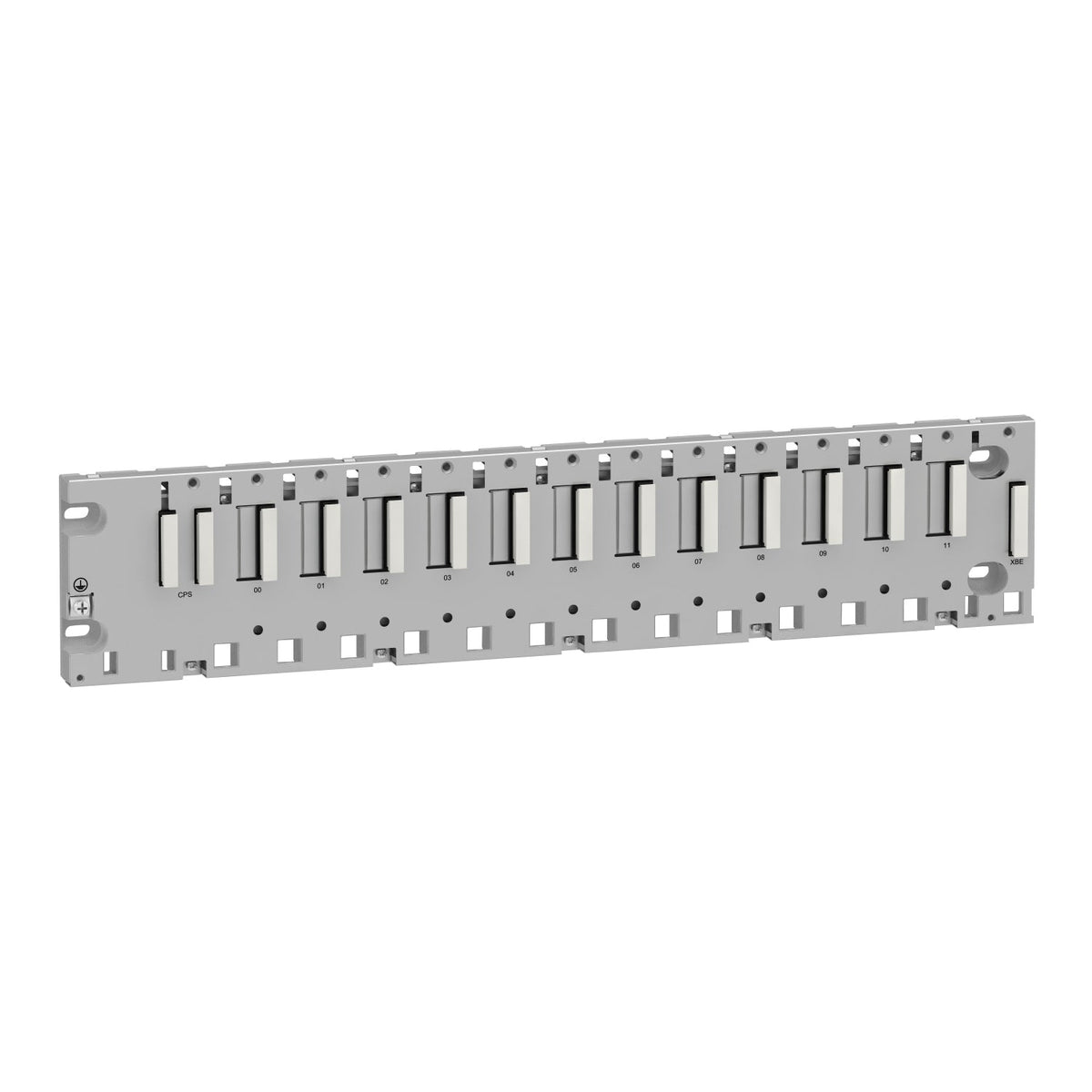

The Schneider Electric BMXXBP1200 is a 12-slot Modicon X80 backplane rack that holds a BMXP34 processor, BMXCPS power supply and I/O or specific application modules, connecting to expansion via the XBE connector. It is IP20 rated, measures 103.7 x 503.2 x 19 mm, weighs 1.27 kg and mounts to a panel or mounting plate with 4 M4/M5/M6 screws.
The 12-slot BMXXBP1200 is the largest backplane in the X80 range, sized for stations with a processor, power supply and up to ten I/O or application modules on one rack. Unlike the smaller 4, 6 and 8-slot backplanes, it is fixed by panel or mounting-plate screws only, with no DIN rail clip option, which should be checked against the cabinet mounting method before ordering.
| Range of Product | Modicon X80 |
|---|---|
| Product or Component Type | Backplane |
| Number of slots | 12 bus X |
|---|---|
| Product Compatibility | BMXP34 processor, BMXCPS power supply, I/O module, Specific application module |
| Power Consumption in W | 0.17 W |
| Electrical connection | 1 connector (XBE) expansion module |
| Fixing mode | By 4 M4/M5/M6 screws panel, By 4 M4/M5/M6 screws mounting plate |
| Height | 4.08 in (103.7 mm) |
| Width | 19.8 in (503.2 mm) |
| Depth | 0.7 in (19 mm) |
| Net Weight | 2.80 lb(US) (1.27 kg) |
| IP Degree of Protection | IP20 |
|---|---|
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Relative Humidity | 10…95 % without condensation |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
| Product certifications | CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy |
| Standards | EN/IEC 61131-2, EN/IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, EN/IEC 61000-6-5, interface type 1 and type 2, EN/IEC 61850-3, location G |
| Part number | BMXXBP1200 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3595863909029 |
| Warranty (in months) | 18 |
|---|
| Country of origin | US |
|---|---|
| Shipping weight | 1.27 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
