Part number
BMXXBP0600
$196.08 On request Dispatch — · From TürkiyeGet a Quote
Modicon X80

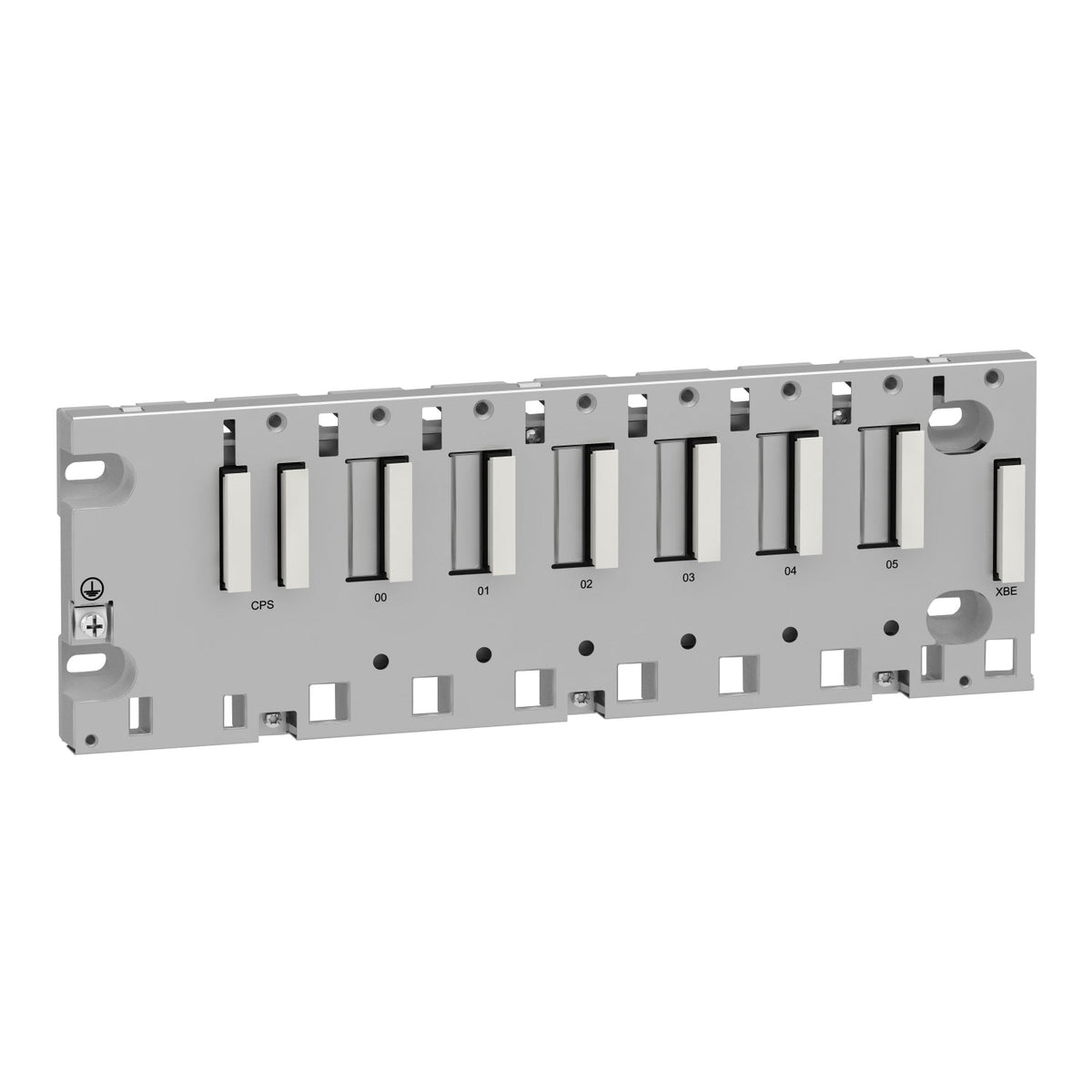

Schneider Electric BMXXBP0600 Modicon X80 6-Slot Backplane PLC Accessory

6-slot Modicon X80 backplane rack, IP20, panel/mounting plate/DIN rail mounting.

Range of Product
Modicon X80
Product or Component Type
Backplane
EAN
3595863908909
Description

About the BMXXBP0600

The Schneider Electric BMXXBP0600 is a 6-slot Modicon X80 backplane rack that holds a BMXP34 processor, BMXCPS power supply and I/O or specific application modules, connecting to expansion via the XBE connector. It is IP20 rated, measures 103.7 x 307.6 x 19 mm, weighs 0.79 kg and mounts to a panel, mounting plate or 35 mm DIN rail.

Certifications & Standards

  • CE
  • UL
  • CSA
  • RCM
  • EAC
  • UKCA
  • IEC 61131-2
  • IEC 61010-2-201

Selection Notes

The 6-slot BMXXBP0600 sits between the compact 4-slot and larger 8 and 12-slot backplanes in the X80 range, sized for stations needing a processor, power supply and roughly four I/O or application modules on one rack. It shares the same fixing pattern and mounting options as the rest of the range, so the enclosure layout does not change if module count later requires stepping up to a larger backplane.

Specification

Full specification

30 values · Last verified 30 Oct 2026

Main 2

Range of Product Modicon X80
Product or Component Type Backplane

Complementary 9

Number of slots 6 bus X
Product Compatibility BMXP34 processor, BMXCPS power supply, I/O module, Specific application module
Power Consumption in W 1.68 W
Electrical connection 1 connector (XBE) expansion module
Fixing mode By 4 M4/M5/M6 screws panel, By 4 M4/M5/M6 screws mounting plate, By clips 35 mm symmetrical DIN rail
Height 4.08 in (103.7 mm)
Width 12.1 in (307.6 mm)
Depth 0.7 in (19 mm)
Net Weight 1.74 lb(US) (0.79 kg)

Environment 6

IP Degree of Protection IP20
Ambient Air Temperature for Operation 32…140 °F (0…60 °C)
Relative Humidity 10…95 % without condensation
Directives 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Product certifications CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy
Standards EN/IEC 61131-2, EN/IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, EN/IEC 61000-6-5, interface type 1 and type 2, EN/IEC 61850-3, location G
Show all 30 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number BMXXBP0600
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3595863908909

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin US
Shipping weight 0.79 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for BMXXBP0600

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • UL
  • CSA
  • CE
  • UKCA
  • EAC
  • EN/IEC 61131-2
  • EN/IEC 61010-2-201
  • UL 61010-2-201
  • CSA C22.2 No 61010-2-201
  • IACS E10
  • EN/IEC 61850-3
  • location G
Quick answers

Questions about the BMXXBP0600

What is the HS code of BMXXBP0600 for customs?

The tariff (HS) code on file for BMXXBP0600 is 853890.

What is the EAN of BMXXBP0600?

The EAN (GTIN) of BMXXBP0600 is 3595863908909.

Where does BMXXBP0600 ship from, and how fast?

BMXXBP0600 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
