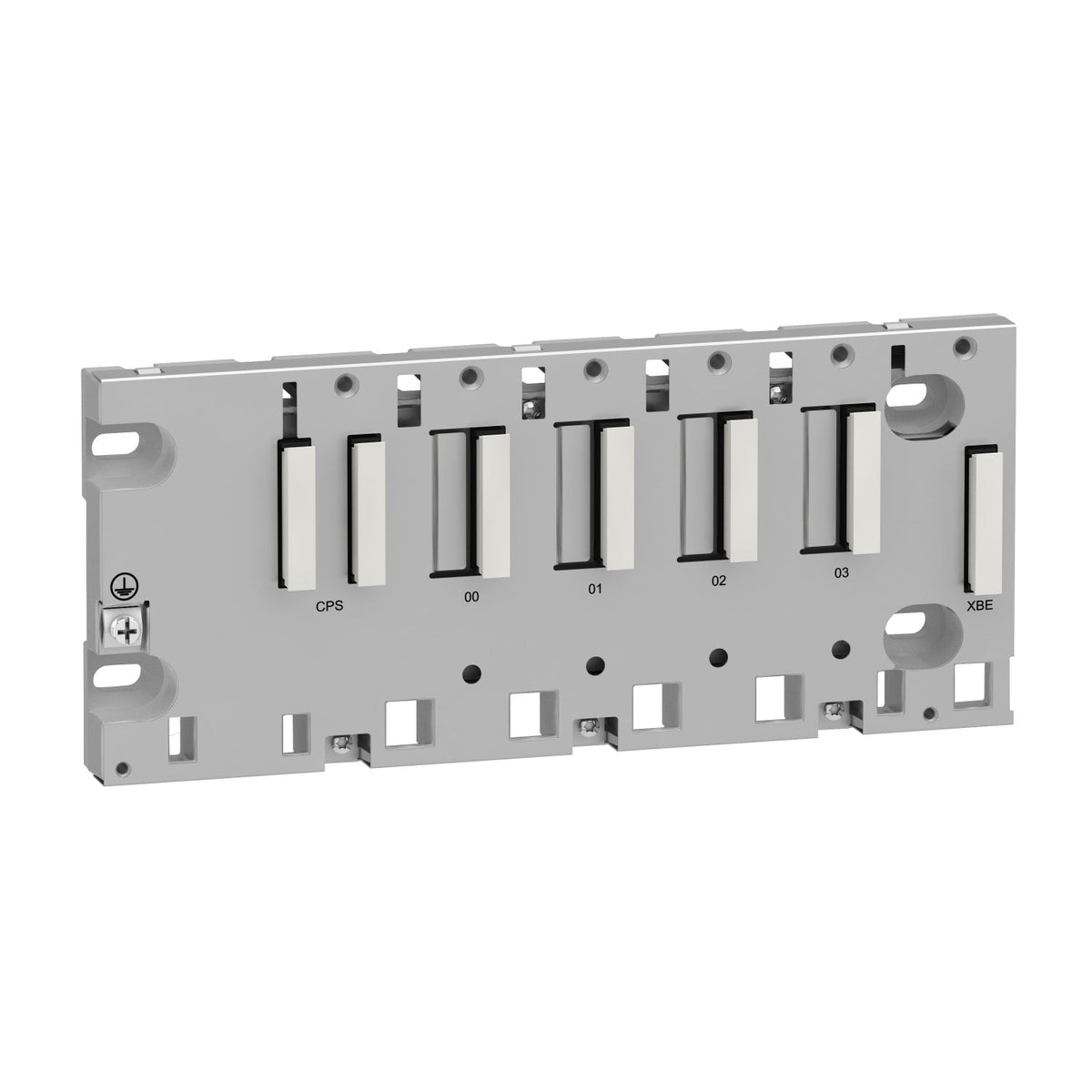

The Schneider Electric BMXXBP0400 is a 4-slot Modicon X80 backplane rack that holds a BMXP34 processor, BMXCPS power supply and I/O or specific application modules, connecting to expansion via the XBE connector. It is IP20 rated, measures 103.7 x 242.4 x 19 mm, weighs 0.63 kg and mounts to a panel, mounting plate or 35 mm DIN rail.
Pick the backplane by slot count needed for the processor, power supply and I/O modules in the rack: the 4-slot BMXXBP0400 suits compact single-rack stations, while the larger backplanes in the same X80 range cover higher module counts without changing the mounting method (panel, mounting plate or 35 mm DIN rail). All four fixing points use the same M4/M5/M6 screw pattern, so backplane size can be changed without re-drilling the enclosure.
| Range of Product | Modicon X80 |
|---|---|
| Product or Component Type | Backplane |
| Number of slots | 4 bus X |
|---|---|
| Product Compatibility | BMXP34 processor, BMXCPS power supply, I/O module, Specific application module |
| Power Consumption in W | 1.12 W |
| Electrical connection | 1 connector (XBE) expansion module |
| Fixing mode | By 4 M4/M5/M6 screws panel, By 4 M4/M5/M6 screws mounting plate, By clips 35 mm symmetrical DIN rail |
| Height | 4.08 in (103.7 mm) |
| Width | 9.5 in (242.4 mm) |
| Depth | 0.7 in (19 mm) |
| Net Weight | 1.39 lb(US) (0.63 kg) |
| IP Degree of Protection | IP20 |
|---|---|
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Relative Humidity | 10…95 % without condensation |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
| Product certifications | CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy |
| Standards | EN/IEC 61131-2, EN/IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, EN/IEC 61000-6-5, interface type 1 and type 2, EN/IEC 61850-3, location G |
| Part number | BMXXBP0400 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3595863908862 |
| Warranty (in months) | 18 |
|---|
| Country of origin | US |
|---|---|
| Shipping weight | 0.63 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
