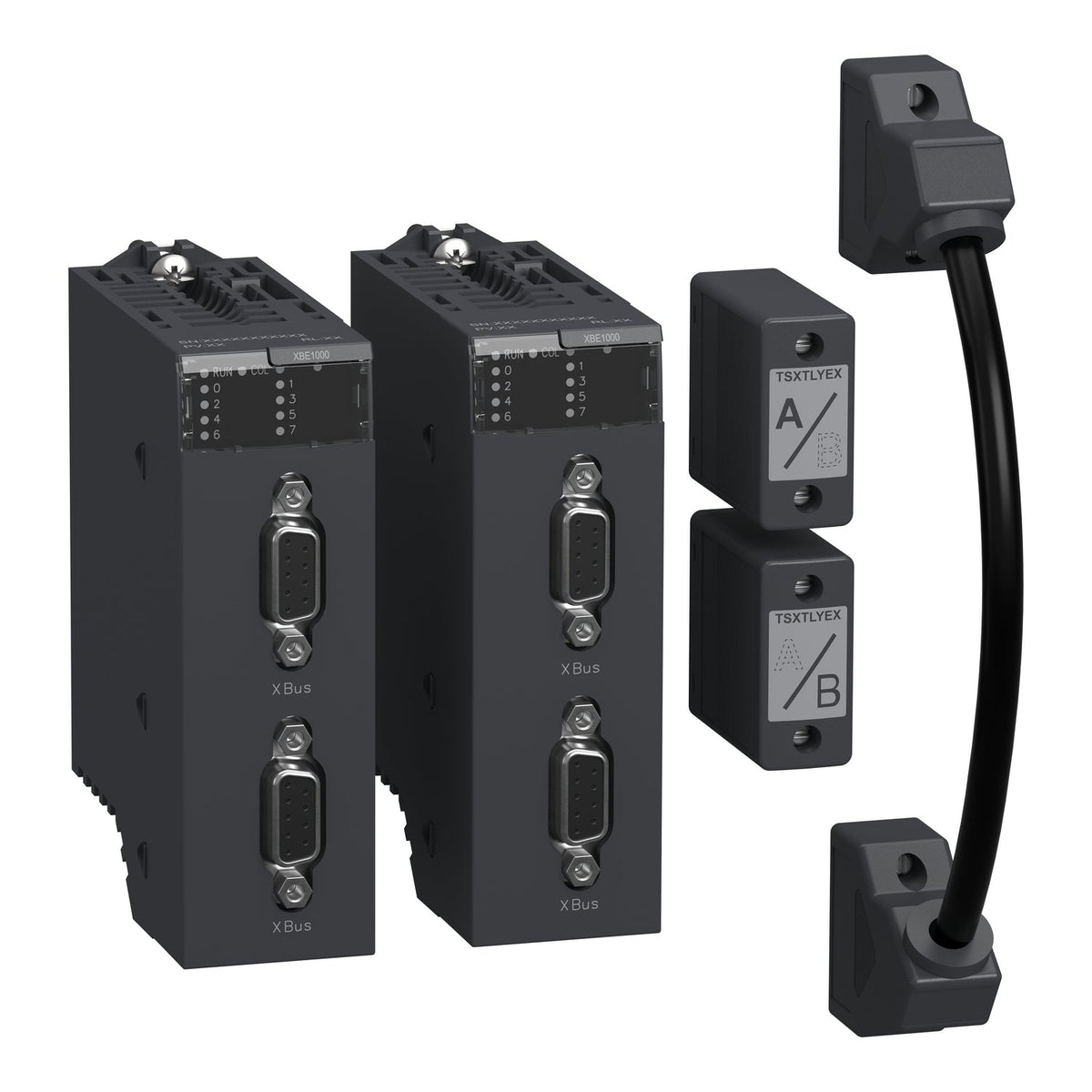

The Schneider Electric BMXXBE2005 is a Modicon M340 backplane extender kit comprising a cable and line terminator used with the BMXXBE1000 backplane expander for multirack configurations. It is classified as a connection accessory within the M340 automation platform and carries ATEX Zone 2/22 and IECEx Zone 2/22 hazardous-location certification.
Use the BMXXBE2005 kit instead of a standalone backplane extension cable when the installation requires ATEX Zone 2/22 or IECEx Zone 2/22 hazardous-location compliance on the BMXXBE1000 expander link; the kit's line terminator is required at the end of the chained bus run.
| Range of Product | Modicon M340 automation platform |
|---|---|
| Accessory / separate part category | Connection accessories |
| Accessory / Separate Part Type | Backplane |
| Accessory / separate part designation | M340 backplane extender kit |
| Product Compatibility | BMXXBE1000 |
| Accessory / separate part destination | M340 backplane |
| Kit composition | Cable and line terminator |
|---|
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive |
|---|---|
| Product certifications | CE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22, IECEx zone 2/22 |
| Standards | IEC 61131-2, IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, IEC 61000-6-5, interface type 1 and type 2, IEC 61850-3, location G, IEC 60079-0 |
| Environmental characteristic | Hazardous location class I division 2 |
| Part number | BMXXBE2005 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3595863999693 |
| Warranty (in months) | 18 |
|---|
| Country of origin | FR |
|---|---|
| Shipping weight | 0.634 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for BMXXBE2005 is 853890.
The EAN (GTIN) of BMXXBE2005 is 3595863999693.
BMXXBE2005 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
