Part number
BMXXBE1000
$293.48 On request Dispatch — · From TürkiyeGet a Quote
Modicon M340 automation platform

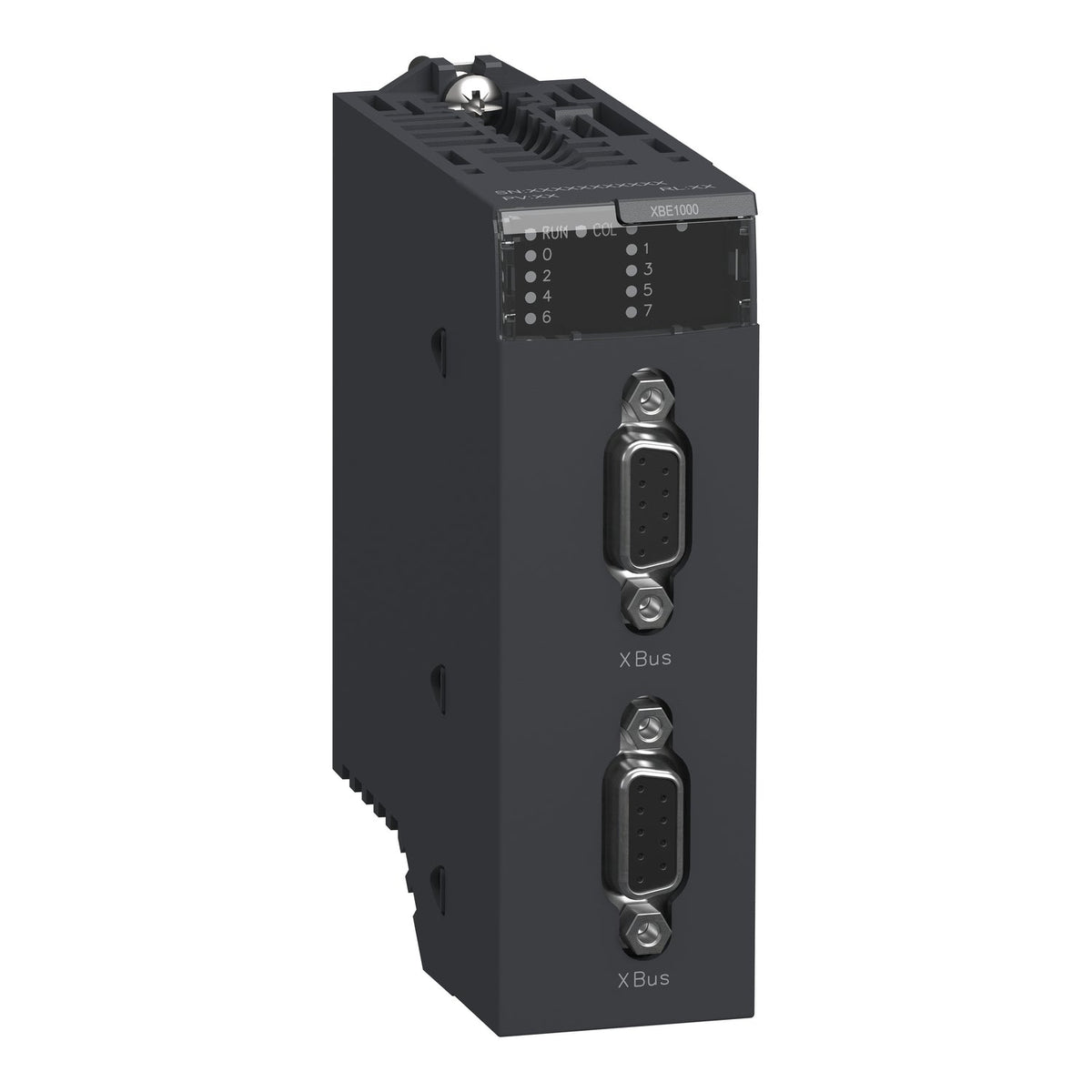

Schneider Electric BMXXBE1000 Modicon M340 Backplane Expander Multirack Module PLC Accessory

Modicon M340 backplane expander for multirack configurations, IP20, SUB-D 9 connectors.

Range of Product
Modicon M340 automation platform
Accessory / separate part category
Extension accessory
Accessory / Separate Part Type
Backplane
Accessory / separate part designation
Backplane expander
Product Compatibility
BMXXBP0600, BMXXBP0400, BMXXBP0800, BMXXBP1200
Accessory / separate part destination
For multiracks configuration
EAN
3595863992175
Description

About the BMXXBE1000

The Schneider Electric BMXXBE1000 is a Modicon M340 backplane expander module that links multiple racks together for multirack configurations, connecting via two female SUB-D 9 connectors and backplane extension cables. It draws 160 mA at 24 V DC and 22 mA at 3.3 V DC and carries an IP20 rating for panel, mounting-plate or DIN rail mounting.

Certifications & Standards

  • CE
  • UL
  • CSA
  • RCM
  • EAC
  • Merchant Navy
  • IEC 61131-2
  • IEC 61010-2-201
  • IACS E10
  • EN/IEC 61000-6-5
  • EN/IEC 61850-3

Selection Notes

The BMXXBE1000 is required whenever a Modicon M340 application needs more I/O slots than a single backplane provides; it links two backplane racks (BMXXBP0400, BMXXBP0600, BMXXBP0800 or BMXXBP1200) into one multirack system. Choose the backplane extension cable length and optional extender kit based on the physical distance and cabling needs between the linked racks, since the expander itself only provides the connector interface and LED diagnostics.

Specification

Full specification

31 values · Last verified 30 Oct 2026

Main 6

Range of Product Modicon M340 automation platform
Accessory / separate part category Extension accessory
Accessory / Separate Part Type Backplane
Accessory / separate part designation Backplane expander
Product Compatibility BMXXBP0600, BMXXBP0400, BMXXBP0800, BMXXBP1200
Accessory / separate part destination For multiracks configuration

Complementary 4

Electrical connection 2 female connectors SUB-D 9
Local signalling 1 LED green operating status (RUN) bus, 1 LED red collision error (COL) rack, 4 LEDs green rack adresses status
Current consumption 160 mA 24 V DC, 22 mA 3.3 V DC
Module format Standard

Environment 8

IP Degree of Protection IP20
Ambient Air Temperature for Operation 32…140 °F (0…60 °C)
Relative Humidity 10…95 % without condensation
Directives 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Product certifications CE, UL, CSA, RCM, EAC, Merchant Navy
Standards IEC 61131-2, IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, EN/IEC 61000-6-5, interface type 1 and type 2, EN/IEC 61850-3, location G
Environmental characteristic Hazardous location class I division 2
Protective treatment TC
Show all 31 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number BMXXBE1000
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3595863992175

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin FR
Shipping weight 0.173 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for BMXXBE1000

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • UL
  • CSA
  • CE
  • EAC
  • IEC 61131-2
  • IEC 61010-2-201
  • UL 61010-2-201
  • CSA C22.2 No 61010-2-201
  • IACS E10
  • EN/IEC 61850-3
  • location G
Quick answers

Questions about the BMXXBE1000

What is the HS code of BMXXBE1000 for customs?

The tariff (HS) code on file for BMXXBE1000 is 853890.

What is the EAN of BMXXBE1000?

The EAN (GTIN) of BMXXBE1000 is 3595863992175.

Where does BMXXBE1000 ship from, and how fast?

BMXXBE1000 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
