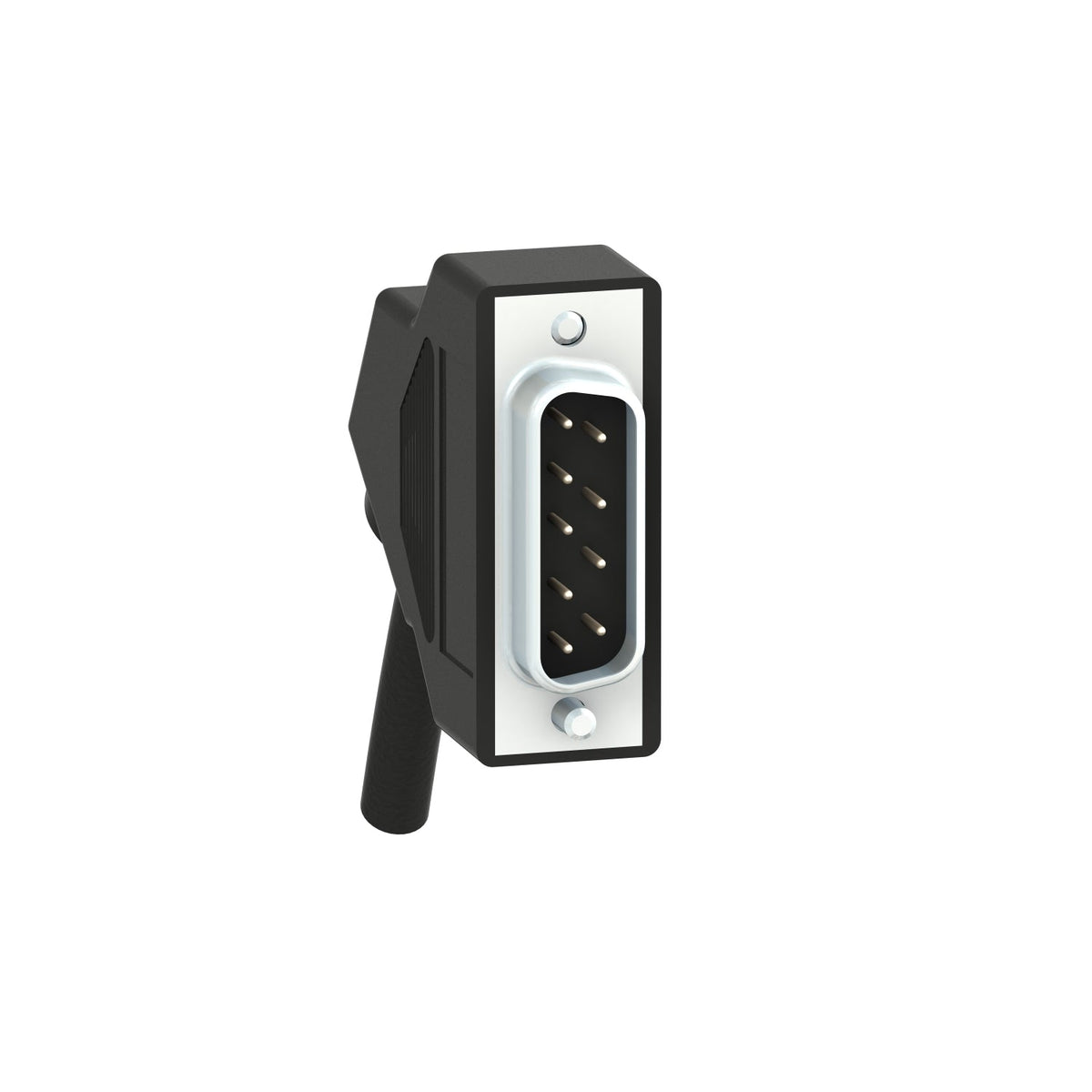

The Schneider Electric BMXXBC120K is a 12 m backplane extension cable for the Modicon M340 platform, connecting to the BMXXBE1004 backplane expander to chain racks together across longer distances and transport the local bus signal between them. It terminates in two male SUB-D 9 connectors and is classified as a connection accessory within the M340 range.
Match the cable length to the physical distance between the base rack and the remote expansion rack; the 12 m length is the longest in the backplane extension cable range and suits racks split between separate enclosures or panels, where the 0.8 m and 3 m cables would not reach.
| Range of Product | Modicon M340 automation platform |
|---|---|
| Accessory / separate part category | Connection accessories |
| Accessory / separate part designation | Backplane extension cable |
| Product Compatibility | BMXXBE1004 |
| Accessory / separate part destination | To chain rack and transport local bus signal |
| Cable length | 39.4 ft (12 m) |
| Accessory / Separate Part Type | Cable |
| Electrical connection | 2 male connectors SUB-D 9 |
|---|
| Warranty (in months) | 18 |
|---|
| Part number | BMXXBC120K |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3595863992656 |
| Country of origin | TN |
|---|---|
| Shipping weight | 1.76 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for BMXXBC120K is 853890.
The EAN (GTIN) of BMXXBC120K is 3595863992656.
BMXXBC120K ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
