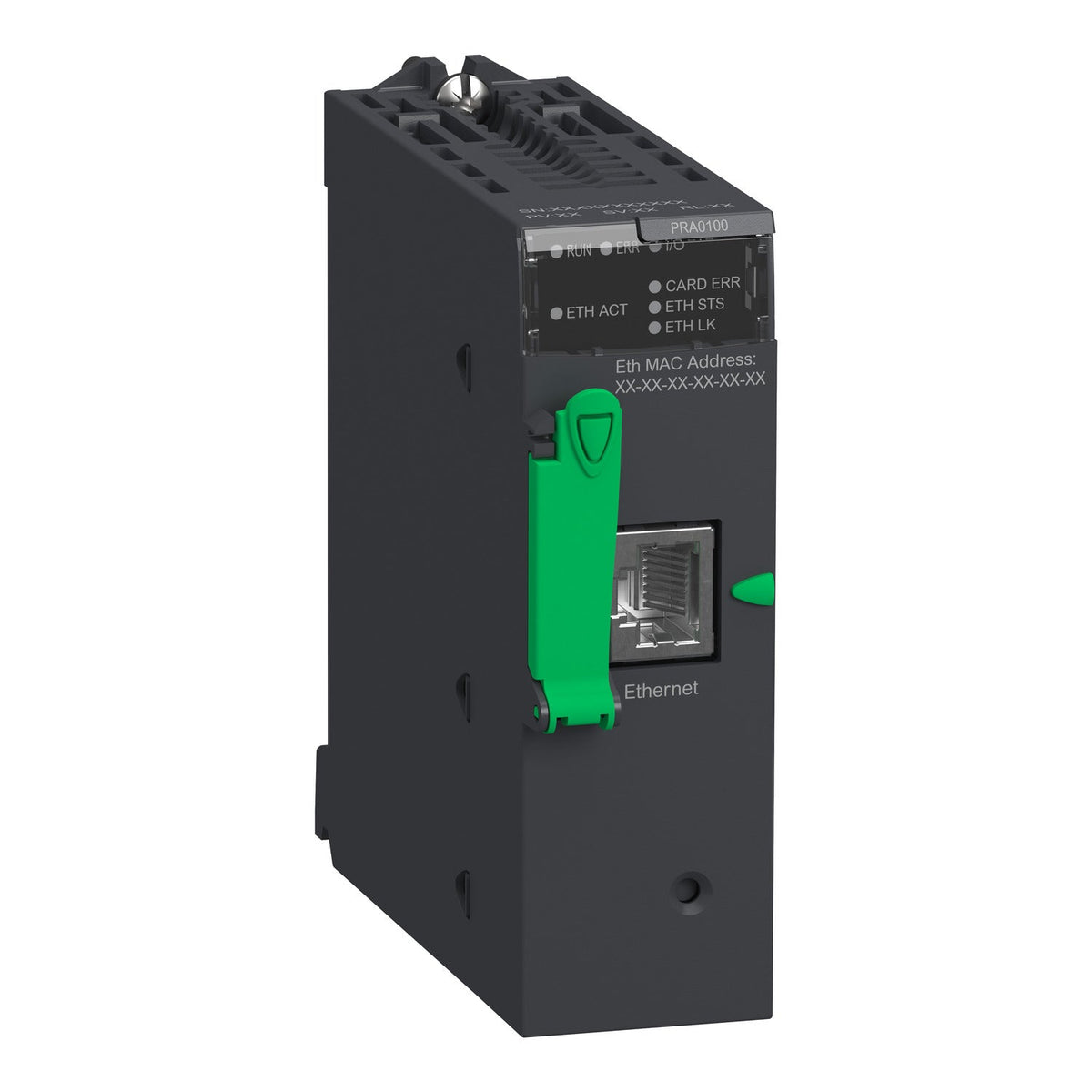

The Schneider Electric BMXPRA0100 is a Modicon X80 peripheral remote I/O adaptor that links up to 1024 discrete and 256 analog I/O points to a host controller over EtherNet/IP device network with Modbus TCP. It carries 448 kB internal plus 96 kB removable memory, an integrated real-time clock, and runs on 95 mA with 2.3 W dissipation for medium-to-large distributed I/O applications.
BMXPRA0100 is the EtherNet/IP gateway for extending Modicon X80 I/O beyond the local backplane, so it is selected whenever the application needs to place discrete or analog modules on a remote rack reached over EtherNet/IP rather than a CANopen or Modbus serial network. Its -25 degrees C to +70 degrees C extended temperature rating and ATEX Zone 2/22 / IECEx Zone 2/22 certification make it suitable for hazardous-area or outdoor cabinets that standard IP20 backplane modules are not rated for. The 1024 discrete / 256 analog I/O ceiling and 2-Ethernet-module capacity size the maximum remote I/O station that a single adaptor can support.
Used to extend Modicon X80 I/O racks over EtherNet/IP in medium to large process applications, including hazardous locations rated Class I Division 2 and ATEX Zone 2/22.
| Range of Product | Modicon X80 |
|---|---|
| Product or Component Type | Peripheral remote I/O adaptor |
| Number of port | 1 |
|---|---|
| Integrated connection type | Ethernet/IP device network |
| Communication Port Protocol | Modbus TCP |
| Realtime clock | With |
| Memory capacity | 448 kB internal, 96 kB removable |
| Application structure | 1 master task |
| Local signalling | 1 LED (green) for module active (RUN), 1 LED (red) for module error (ERR), 1 LED (red) for external fault (I/O), 1 LED (green) for activity on Ethernet network (ETH ACT), 1 LED (red) for memory card fault (CARD ERR), 1 LED (green) for Ethernet link diagnostics (STS), 1 LED (green) for Ethernet network status (link) |
| Product compatibility | 0…1024 discrete I/O module, 0…256 analog I/O module, 0…2 Ethernet module |
| Average consumption in mA | 95 mA |
| Power dissipation in W | 2.3 W |
| Marking | CE |
| Module format | Standard |
| Maximum altitude transport | 9842.5 ft (3000 m) |
| Relative Humidity | 95 % without condensation |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive |
|---|---|
| Product certifications | CE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22, IECEx zone 2/22 |
| Standards | IEC 61131-2, IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, IEC 61000-6-5, interface type 1 and type 2, IEC 61850-3, location G, IEC 60079-0 |
| Environmental characteristic | Hazardous location class I division 2 |
| IP Degree of Protection | IP20 |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Operating altitude | <= 6561.68 ft (2000 m) |
| Part number | BMXPRA0100 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Phase-out announced by the manufacturer |
| Last order date | 1 Dec 2027 · as announced for Türkiye, our sourcing market |
| EAN | 3595864063317 |
| Warranty (in months) | 18 |
|---|
| Country of origin | US |
|---|---|
| Shipping weight | 0.244 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
