Modicon M340 automation platform

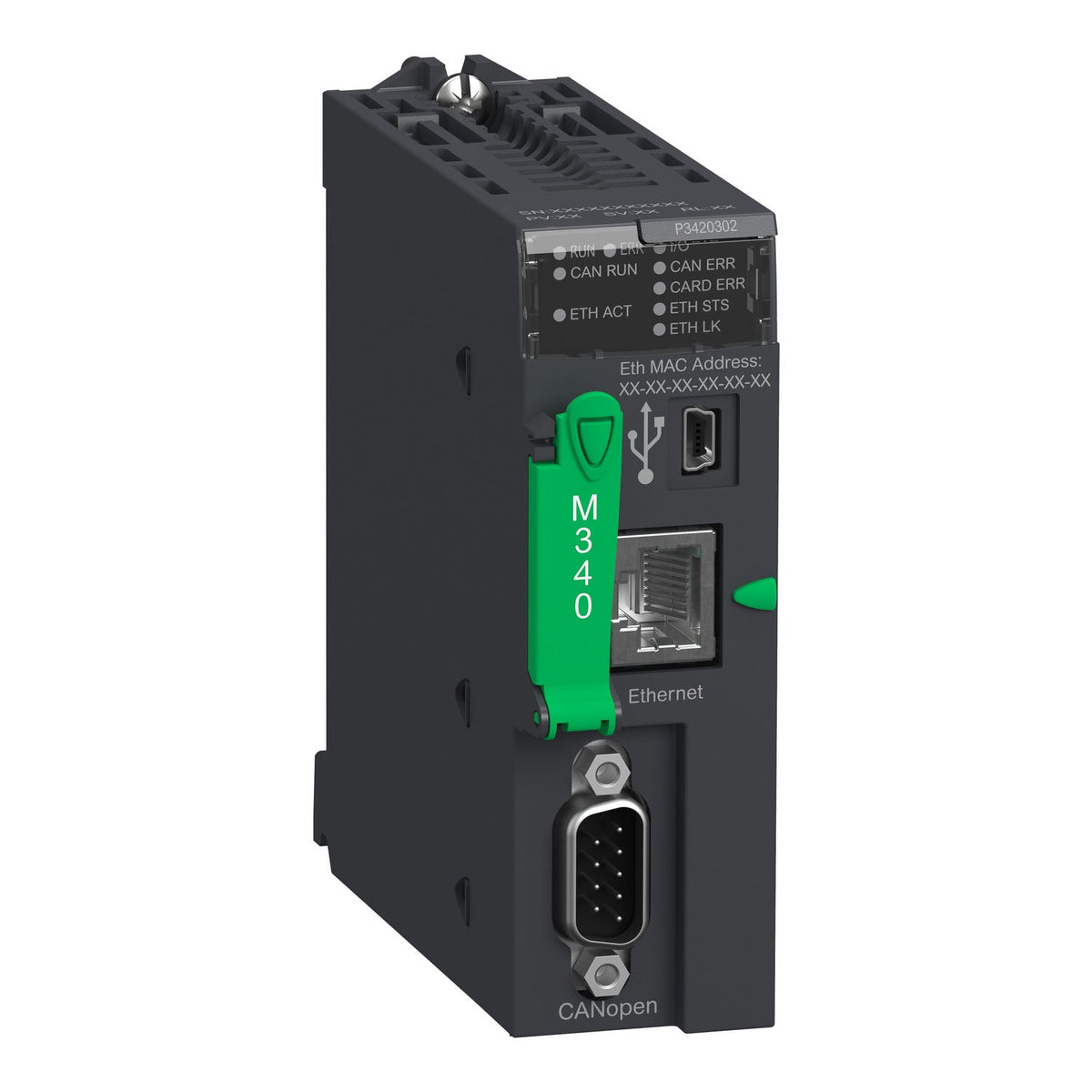

Schneider Electric BMXP3420302 Modicon M340 Processor 1024 I/O CANopen Ethernet Programmable Logic Controller

Modicon M340 processor module with CANopen master, up to 1024 discrete / 256 analog I/O, Ethernet TCP/IP.

Communication
CANopen, Ethernet TCP/IP, USB
EAN
3595864024455
Description

About the BMXP3420302

The Schneider Electric BMXP3420302 is a Modicon M340 processor module that adds a CANopen master bus supporting up to 63 slave devices and independent-axis motion control alongside Ethernet TCP/IP and USB programming. It handles up to 1024 discrete and 256 analog I/O across 4 racks, running at 6.4 to 8.1 Kinst/ms for process and machine automation with distributed CANopen devices.

Certifications & Standards

  • CE
  • UL
  • CSA
  • RCM
  • EAC
  • UKCA
  • IEC 61131-2
  • IEC 61010-2-201

Selection Notes

BMXP3420302 replaces the RS232/RS485 serial ports of the base processor variant with an integrated CANopen master, making it the choice when the application needs independent-axis motion control or distributed CANopen I/O instead of legacy serial Modbus devices. Its CANopen bus supports up to 63 slave devices at transmission rates from 20 kbit/s to 1 Mbit/s depending on cable length, so network size and distance should be checked against the same 1024/256 I/O and 4-rack ceiling shared with the rest of the M340 processor family.

Applications

Suited to machine automation needing CANopen axis synchronization alongside Ethernet-based supervisory connections, plus process, water, cement and infrastructure installations common to the M340 platform.

Specification

Full specification

49 values · Last verified 30 Oct 2026

Main 7

Range of Product Modicon M340 automation platform
Product or Component Type Processor module
Concept CANopen, Transparent Ready
Number of racks 4
Local I/O processor capacity (discrete) 1024 I/O
Analogue I/O processor capacity 256 I/O
Number of application specific channel 36

Complementary 22

Control channels Programmable loops
Motion control Independent axis CANopen
Integrated connection type USB port 12 Mbit/s, CANopen master bus SUB-D 9 2 twisted shielded pairs 20 kbit/s...1 Mbit/s, Ethernet TCP/IP RJ45 1 twisted pair 10/100 Mbit/s
Communication module processor capacity 2 Ethernet communication module, 4 AS-Interface module
embedded communication service Network management (NMT) CANopen, Process Data Object (PDO) CANopen, Service Data Object (SDO) CANopen, Special functions (SYNC, EMCY, TIME) CANopen, Bandwidth management, Ethernet TCP/IP, Data Editor, Ethernet TCP/IP, Modbus TCP messaging, Ethernet TCP/IP, Rack Viewer, Ethernet TCP/IP, SNMP network administrator, Ethernet TCP/IP
Port Ethernet 10BASE-T/100BASE-TX
Transmission rate 1 Mbit/s 0…65.6 ft (0…20 m) 0…2.0 ft (0…0.6 m), 125 kbit/s 0…1640.4 ft (0…500 m) 0…32.8 ft (0…10 m), 20 kbit/s 0…8202.10 ft (0…2500 m) 0…984.3 ft (0…300 m), 250 kbit/s 0…820.2 ft (0…250 m) 0…32.8 ft (0…10 m), 50 kbit/s 0…3280.8 ft (0…1000 m) 0…393.7 ft (0…120 m), 500 kbit/s 0…328.08 ft (0…100 m) 0…32.8 ft (0…10 m), 800 kbit/s 0…131.2 ft (0…40 m) 0…19.7 ft (0…6 m)
Bus type CANopen M20 DS 301 V4.02 devices linked by daisy-chaining or tap junctions CSMA/CA, CANopen M20 DS 303-2 devices linked by daisy-chaining or tap junctions CSMA/CA, CANopen M20 DS 405 devices linked by daisy-chaining or tap junctions CSMA/CA
Number of server device(s) 63 CANopen
Number of devices per segment 0…16 672.6 ft (205 m) CANopen), 0…32 607.0 ft (185 m) CANopen), 0…64 524.9 ft (160 m) CANopen)
Memory description Supplied memory card (BMXRMS008MP) backup of programs, constants, symbols and data, Internal RAM 4096 kB, Internal RAM 256 kB data, Internal RAM 3584 kB program constants and symbols, Supplied memory card (BMXRMS008MP) activation of standard web server, class B10
Maximum size of object areas 32634 %Mi located internal bits, 32464 %MWi internal words, 32760 %KWi constant words
Default size of object areas 1024 %MWi internal words located internal data, 256 %KWi constant words located internal data, 512 %Mi located internal bits
Application structure 1 cyclic/periodic master task, 1 periodic fast task, No auxiliary task, 64 event tasks
Execution time per instruction 0.12 µs Boolean, 0.17 µs double-length words, 0.25 µs single-length words, 1.16 µs floating points
Number of instructions per ms 6.4 Kinst/ms 65 % Boolean + 35 % fixed arithmetic, 8.1 Kinst/ms 100 % Boolean
System overhead 0.13 ms fast task, 0.7 ms master task
Current consumption 135 mA 24 V DC
Supply Internal power supply via rack
Marking CE, UL, CSA, RCM, EAC, UKCA, China RoHS, WEEE, IEC
Status LED 1 LED (Green) activity on Ethernet network (ETH ACT), 1 LED (Green) integrated machine/installation bus operational (CAN RUN), 1 LED (Green) processor running (RUN), 1 LED (Green) status of Ethernet network (ETH STS), 1 LED (Green) data rate (ETH 100), 1 LED (Red) I/O module fault (I/O), 1 LED (Red) integrated machine/installation bus fault (CAN ERR), 1 LED (Red) memory card fault (CARD ERR), 1 LED (Red) processor or system fault (ERR)
Net Weight 0.474 lb(US) (0.215 kg)

Environment 7

Ambient Air Temperature for Operation 32…140 °F (0…60 °C)
Relative Humidity 5…95 % without condensation
IP Degree of Protection IP20
Protective treatment TC
Directives 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2012/19/EU - WEEE directive
Product certifications CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy, CCSAus HazLoc Class I Division 2 Group A, CCSAus HazLoc Class I Division 2 Group B, CCSAus HazLoc Class I Division 2 Group C, CCSAus HazLoc Class I Division 2 Group D
Standards IEC 61131-2, IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, EN/IEC 61000-6-5, interface type 1 and type 2, EN/IEC 61850-3, location G
Show all 49 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number BMXP3420302
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3595864024455

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin FR
Shipping weight 0.215 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
