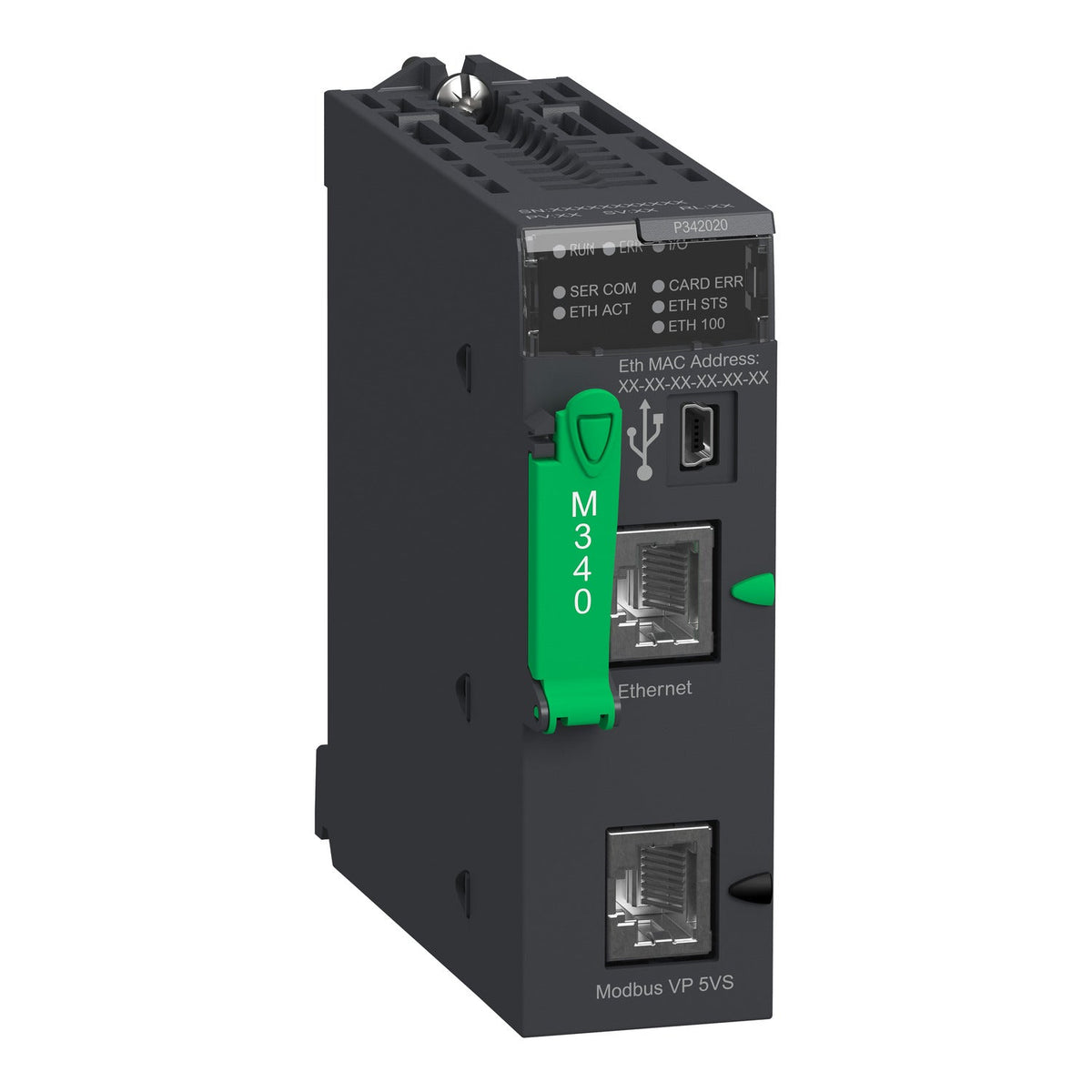

The Schneider Electric BMXP342020 is a Modicon M340 processor module supporting up to 1024 discrete and 256 analog I/O across 4 racks, with Modbus, Ethernet TCP/IP and a USB programming port. It executes at 6.4 to 8.1 Kinst/ms and stores programs on a removable SD memory card, serving as the central CPU of small-to-mid M340 process control and machine automation systems.
BMXP342020 offers RS232/RS485 serial plus Ethernet and USB connectivity without an integrated CANopen master, distinguishing it from the CANopen-equipped variant in the same processor family used for independent-axis motion control. Choose this model when the application needs Modbus RTU/ASCII legacy device integration over serial links rather than CANopen networking. Its 1024 discrete / 256 analog I/O capacity across 4 racks and 6.4 to 8.1 Kinst/ms execution speed suit small-to-medium process and machine control applications that do not require axis-level motion coordination.
Used in process industries, water and cement plants, renewable energy installations and machine or infrastructure automation where Modbus and Ethernet TCP/IP connectivity link the PAC to distributed I/O and third-party devices.
| Range of Product | Modicon M340 automation platform |
|---|---|
| Product or Component Type | Processor module |
| Concept | Transparent Ready, Modbus |
| Number of racks | 4 |
| Local I/O processor capacity (discrete) | 1024 I/O |
| Analogue I/O processor capacity | 256 I/O |
| Number of application specific channel | 36 |
| Monitoring | Diagnostic counters Modbus, Event counters Modbus |
| Control channels | Programmable loops |
|---|---|
| Integrated connection type | Non isolated serial link RJ45 character mode asynchronous in baseband, RS232C 2 twisted shielded pairs 0.3...19.2 kbit/s full duplex, Non isolated serial link RJ45 character mode asynchronous in baseband, RS485 1 twisted shielded pair 0.3...19.2 kbit/s half duplex, Non isolated serial link RJ45, master/slave Modbus, RTU/ASCII asynchronous in baseband, RS232C 1 twisted shielded pair 0.3...19.2 kbit/s half duplex, Non isolated serial link RJ45, master/slave Modbus, RTU/ASCII asynchronous in baseband, RS485 1 twisted shielded pair 0.3...19.2 kbit/s half duplex, USB port 12 Mbit/s, Ethernet TCP/IP RJ45 1 twisted pair 10/100 Mbit/s |
| Communication module processor capacity | 2 Ethernet communication module, 4 AS-Interface module |
| embedded communication service | Bandwidth management, Ethernet TCP/IP, Data Editor, Ethernet TCP/IP, Modbus TCP messaging, Ethernet TCP/IP, Rack Viewer, Ethernet TCP/IP, SNMP network administrator, Ethernet TCP/IP |
| Port Ethernet | 10BASE-T/100BASE-TX |
| Number of devices per segment | 0…32character mode), 0…32Modbus) |
| Number of devices | 2 point-to-point character mode, 2 point-to-point Modbus |
| Bus length | 0…32.8 ft (0…10 m) serial link non isolated character mode segment, 0…32.8 ft (0…10 m) serial link non isolated Modbus segment, 0…3280.8 ft (0…1000 m) serial link isolated character mode segment, 0…3280.8 ft (0…1000 m) serial link isolated Modbus segment, 0…49.2 ft (0…15 m) character mode point-to-point, 0…49.2 ft (0…15 m) Modbus point-to-point |
| Maximum tap links length | <49.2 ft (15 m) serial link non isolated character mode segment, <49.2 ft (15 m) serial link non isolated Modbus segment, <131.2 ft (40 m) serial link isolated character mode segment, <131.2 ft (40 m) serial link isolated Modbus segment |
| Number of addresses | 0…248 character mode, 0…248 Modbus |
| Requests | 1 K data bytes per request character mode, 252 data bytes per RTU request Modbus, 504 data bytes per ASCII request Modbus |
| Control parameter | One CRC on each frame (RTU) Modbus, One LRC on each frame (ASCII) character mode, One LRC on each frame (ASCII) Modbus |
| Memory description | Supplied memory card (BMXRMS008MP) backup of programs, constants, symbols and data, Internal RAM 4096 kB, Internal RAM 256 kB data, Internal RAM 3584 kB program constants and symbols, Supplied memory card (BMXRMS008MP) activation of standard web server, class B10 |
| Maximum size of object areas | 32634 %Mi located internal bits, 32464 %MWi internal words, 32760 %KWi constant words |
| Default size of object areas | 1024 %MWi internal words located internal data, 256 %KWi constant words located internal data, 512 %Mi located internal bits |
| Application structure | 1 cyclic/periodic master task, 1 periodic fast task, No auxiliary task, 64 event tasks |
| Execution time per instruction | 0.12 µs Boolean, 0.17 µs double-length words, 0.25 µs single-length words, 1.16 µs floating points |
| Number of instructions per ms | 6.4 Kinst/ms 65 % Boolean + 35 % fixed arithmetic, 8.1 Kinst/ms 100 % Boolean |
| System overhead | 0.13 ms fast task, 0.7 ms master task |
| Current consumption | 95 mA 24 V DC |
| Supply | Internal power supply via rack |
| Marking | CE, UL, CSA, RCM, EAC, UKCA, China RoHS, WEEE, IEC |
| Status LED | 1 LED (Green) activity on Ethernet network (ETH ACT), 1 LED (Green) processor running (RUN), 1 LED (Green) status of Ethernet network (ETH STS), 1 LED (Green) data rate (ETH 100), 1 LED (Red) I/O module fault (I/O), 1 LED (Red) memory card fault (CARD ERR), 1 LED (Red) processor or system fault (ERR), 1 LED (Yellow) activity on Modbus (SER COM) |
| Net Weight | 0.452 lb(US) (0.205 kg) |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
|---|---|
| Relative Humidity | 5…95 % without condensation |
| IP Degree of Protection | IP20 |
| Protective treatment | TC |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2012/19/EU - WEEE directive |
| Product certifications | CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy, CCSAus HazLoc Class I Division 2 Group A, CCSAus HazLoc Class I Division 2 Group B, CCSAus HazLoc Class I Division 2 Group C, CCSAus HazLoc Class I Division 2 Group D |
| Standards | IEC 61131-2, IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, EN/IEC 61000-6-5, interface type 1 and type 2, EN/IEC 61850-3, location G |
| Part number | BMXP342020 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3595863910711 |
| Warranty (in months) | 18 |
|---|
| Country of origin | FR |
|---|---|
| Shipping weight | 0.205 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for BMXP342020 is 853710.
The EAN (GTIN) of BMXP342020 is 3595863910711.
BMXP342020 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
