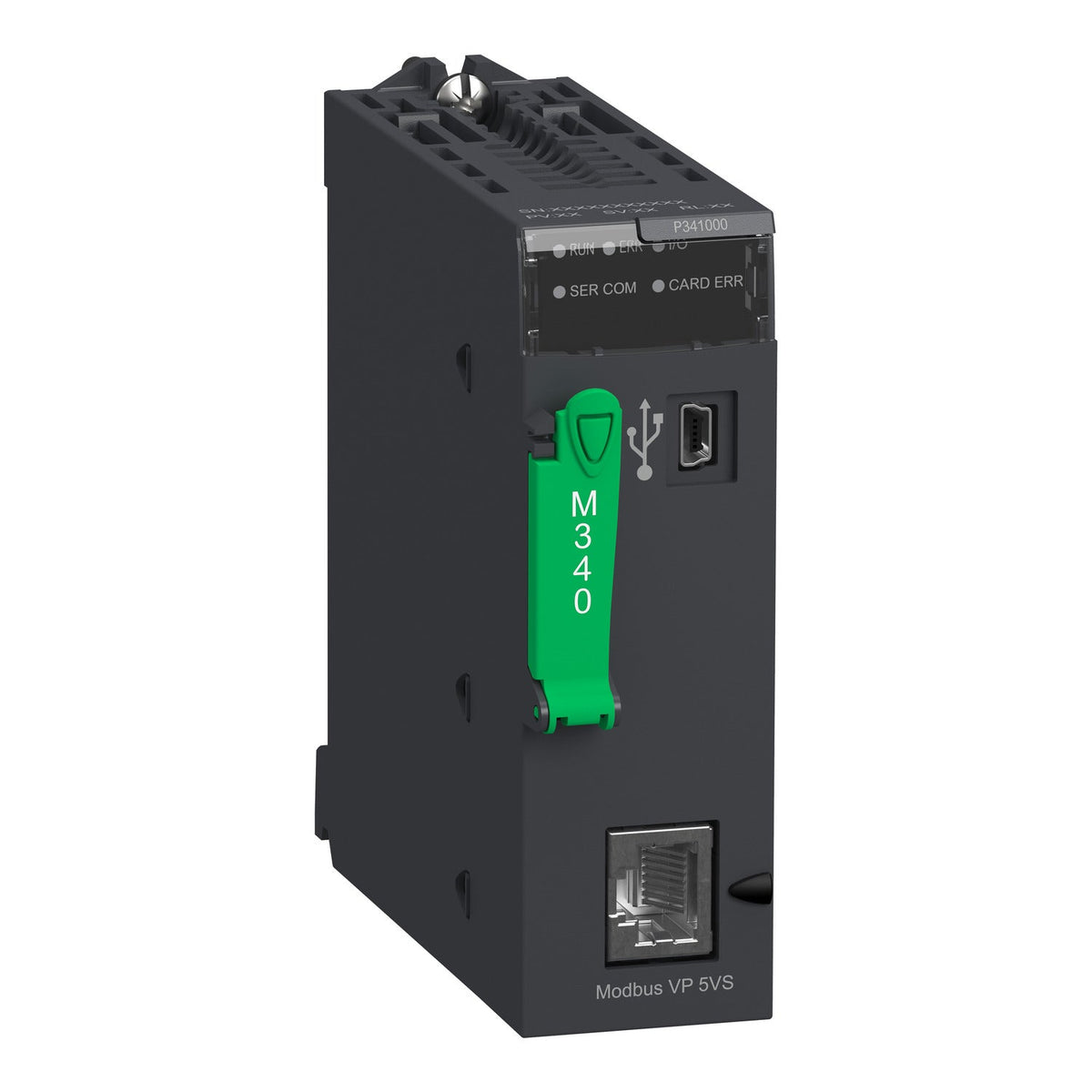

The Schneider Electric BMXP341000 is a Modicon M340 processor module supporting up to 512 discrete or 128 analog I/O points across a 2-rack configuration, with built-in Modbus RTU/ASCII serial ports and slots for 2 Ethernet and 2 AS-Interface communication modules. It draws 72 mA at 24 V DC and stores programs on a supplied memory card.
Specify the BMXP341000 when the application needs dual-rack expansion, up to 512 discrete or 128 analog I/O, plus onboard RS232/RS485 Modbus ports without adding a separate communication module; the 2 Ethernet and 2 AS-Interface module slots leave room to add networking later. For single-rack machines with a smaller I/O count, a lower-capacity M340 processor in the same platform is the better fit.
Central processor for Modicon M340 Programmable Automation Controller architectures in process industries, water/wastewater, cement, manufacturing, and infrastructure applications, including installations extending into Class I Division 2 hazardous locations.
| Range of Product | Modicon M340 automation platform |
|---|---|
| Product or Component Type | Processor module |
| Concept | Modbus |
| Number of racks | 2 |
| Local I/O processor capacity (discrete) | 512 I/O |
| Analogue I/O processor capacity | 128 I/O |
| Number of application specific channel | 20 |
| Monitoring | Diagnostic counters Modbus, Event counters Modbus |
| Control channels | Programmable loops |
|---|---|
| Integrated connection type | Non isolated serial link RJ45 character mode asynchronous in baseband, RS232C 2 twisted shielded pairs 0.3...19.2 kbit/s full duplex, Non isolated serial link RJ45 character mode asynchronous in baseband, RS485 1 twisted shielded pair 0.3...19.2 kbit/s half duplex, Non isolated serial link RJ45, master/slave Modbus, RTU/ASCII asynchronous in baseband, RS232C 1 twisted shielded pair 0.3...19.2 kbit/s half duplex, Non isolated serial link RJ45, master/slave Modbus, RTU/ASCII asynchronous in baseband, RS485 1 twisted shielded pair 0.3...19.2 kbit/s half duplex, USB port 12 Mbit/s |
| Communication module processor capacity | 2 Ethernet communication module, 2 AS-Interface module |
| Number of devices per segment | 0…32character mode), 0…32Modbus) |
| Number of devices | 2 point-to-point character mode, 2 point-to-point Modbus |
| Bus length | 0…32.8 ft (0…10 m) serial link non isolated character mode segment, 0…32.8 ft (0…10 m) serial link non isolated Modbus segment, 0…3280.8 ft (0…1000 m) serial link isolated character mode segment, 0…3280.8 ft (0…1000 m) serial link isolated Modbus segment, 0…49.2 ft (0…15 m) character mode point-to-point, 0…49.2 ft (0…15 m) Modbus point-to-point |
| Maximum tap links length | <49.2 ft (15 m) serial link non isolated character mode segment, <49.2 ft (15 m) serial link non isolated Modbus segment, <131.2 ft (40 m) serial link isolated character mode segment, <131.2 ft (40 m) serial link isolated Modbus segment |
| Number of addresses | 0…248 character mode, 0…248 Modbus |
| Requests | 1 K data bytes per request character mode, 252 data bytes per RTU request Modbus, 504 data bytes per ASCII request Modbus |
| Control parameter | One CRC on each frame (RTU) Modbus, One LRC on each frame (ASCII) character mode, One LRC on each frame (ASCII) Modbus |
| Memory description | Internal RAM 2048 kB, Internal RAM 128 kB data, Internal RAM 1792 kB program constants and symbols, Supplied memory card (BMXRMS008MP) backup of programs, constants, symbols and data |
| Maximum size of object areas | 16250 %Mi located internal bits, 32464 %MWi internal words located internal data, 32760 %KWi constant words located internal data |
| Default size of object areas | 128 %KWi constant words located internal data, 256 %Mi located internal bits, 512 %MWi internal words located internal data |
| Application structure | 1 periodic fast task, 32 event tasks, 1 cyclic/periodic master task, No auxiliary task |
| Execution time per instruction | 0.18 µs Boolean, 0.26 µs double-length words, 0.38 µs single-length words, 1.74 µs floating points |
| Number of instructions per ms | 4.2 Kinst/ms 65 % Boolean + 35 % fixed arithmetic, 5.4 Kinst/ms 100 % Boolean |
| System overhead | 0.2 ms fast task, 1.05 ms master task |
| Current consumption | 72 mA 24 V DC |
| Supply | Internal power supply via rack |
| Marking | CE, UL, CSA, RCM, EAC, UKCA, China RoHS, WEEE, IEC |
| Status LED | 1 LED (Green) processor running (RUN), 1 LED (Red) I/O module fault (I/O), 1 LED (Red) memory card fault (CARD ERR), 1 LED (Red) processor or system fault (ERR), 1 LED (Yellow) activity on Modbus (SER COM) |
| Net Weight | 0.4 lb(US) (0.2 kg) |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
|---|---|
| Relative Humidity | 5…95 % without condensation |
| IP Degree of Protection | IP20 |
| Protective treatment | TC |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2012/19/EU - WEEE directive |
| Product certifications | CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy, CCSAus HazLoc Class I Division 2 Group A, CCSAus HazLoc Class I Division 2 Group B, CCSAus HazLoc Class I Division 2 Group C, CCSAus HazLoc Class I Division 2 Group D |
| Standards | IEC 61131-2, IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, EN/IEC 61000-6-5, interface type 1 and type 2, EN/IEC 61850-3, location G |
| Part number | BMXP341000 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3595863910698 |
| Warranty (in months) | 18 |
|---|
| Country of origin | FR |
|---|---|
| Shipping weight | 0.2 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
