Part number
BMXMSP0200
$354.20 On request Dispatch — · From TürkiyeGet a Quote
Modicon X80

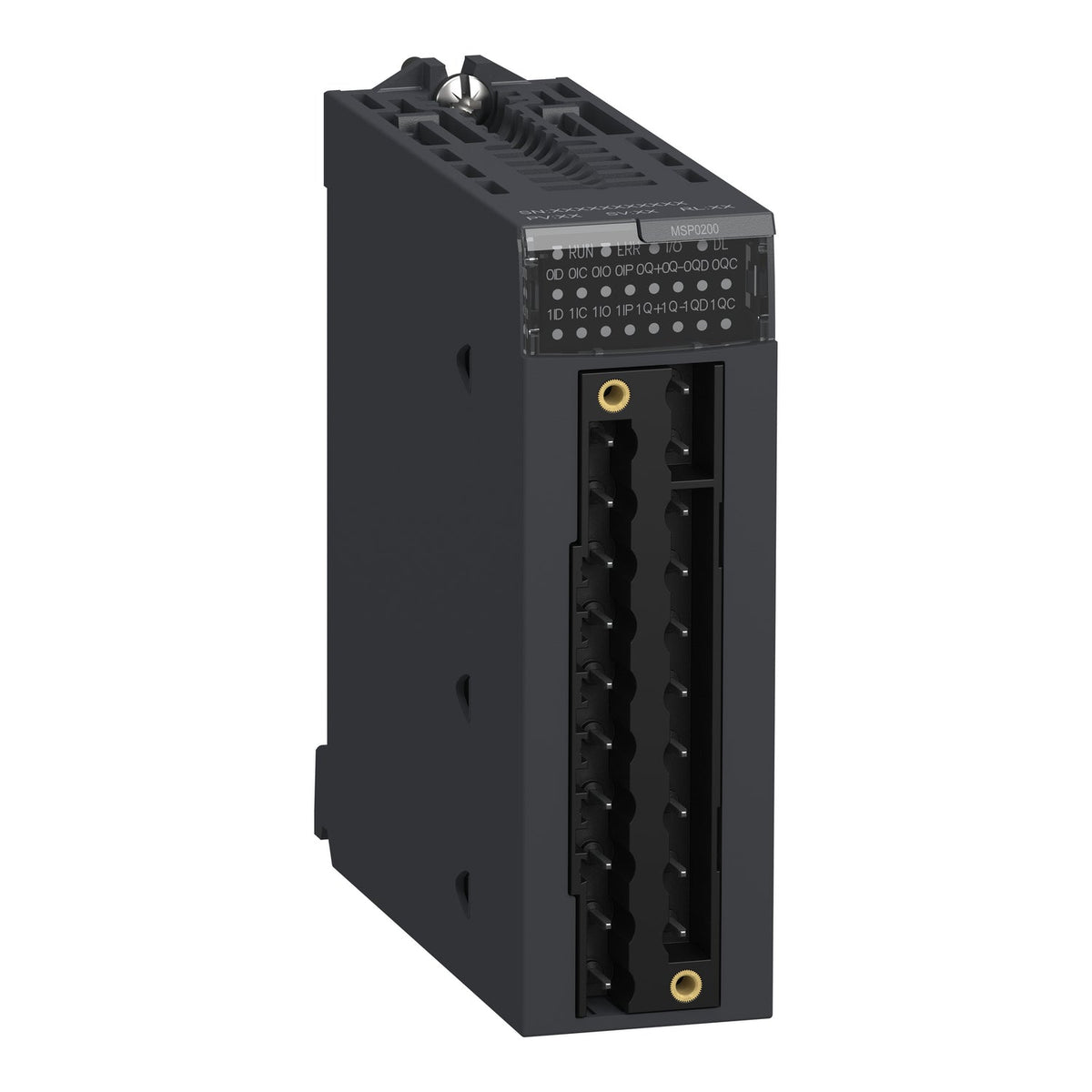

Schneider Electric BMXMSP0200 Modicon X80 2-Channel PTO Module 24V DC PLC I/O Module

Modicon X80 PTO module, 2 pulse channels, 4 discrete inputs, 24V DC, up to 200kHz.

Range of Product
Modicon X80
Product or Component Type
PTO module
Number of Channels
2
Number of inputs
4
Discrete input type
Current sink yes origin input IEC 61131-2 type 3, Current sink yes proximity input and limit switch input IEC 61131-2 type 3, Current sink or source counter in position input IEC 61131-2 type 3, Current sink or source drive ready, emergency input IEC 61131-2 type 3
Input compatibility
2-wire/3-wire proximity sensor 19.2…30 V IEC 947-5-2
EAN
3595863998634
Description

About the BMXMSP0200

The Schneider Electric BMXMSP0200 is a Modicon X80 PTO (pulse train output) module providing 2 pulse-output channels and 4 sink-type discrete inputs at 24 V DC. It connects through two 28-way connectors, draws up to 200 mA at 3.3 V DC, and outputs pulses at up to 200 kHz depending on the receiving circuit.

Certifications & Standards

  • CE
  • UL
  • CSA
  • RCM
  • EAC
  • Merchant Navy
  • ATEX Zone 2/22
  • IECEx Zone 2/22
  • IEC 61131-2
  • IEC 61010-2-201
  • UL 61010-2-201
  • CSA C22.2 No 61010-2-201
  • IACS E10
  • IEC 61000-6-5
  • IEC 61850-3
  • IEC 60079-0

Selection Notes

Specify the BMXMSP0200 when a Modicon M580 or M340 axis needs open-loop pulse-train positioning without a full servo drive; the pulse output reaches 200 kHz over short cable runs under 0.5 m with the USIC converter, dropping to 100 kHz for a standard 5 m source-input run. Because the two channels are not insulated from each other, keep both pulse channels on signals that share a common reference.

Applications

Open-loop pulse-train control of stepper or servo drive positioning inputs on Modicon M580 and M340 Programmable Automation Controllers, including installations that extend into Class I Division 2 hazardous locations.

Specification

Full specification

55 values · Last verified 30 Oct 2026

Main 8

Range of Product Modicon X80
Product or Component Type PTO module
Number of Channels 2
Number of inputs 4
Discrete input type Current sink yes origin input IEC 61131-2 type 3, Current sink yes proximity input and limit switch input IEC 61131-2 type 3, Current sink or source counter in position input IEC 61131-2 type 3, Current sink or source drive ready, emergency input IEC 61131-2 type 3
Input compatibility 2-wire/3-wire proximity sensor 19.2…30 V IEC 947-5-2
Output compatibility Signal converter (USIC), RS422, 7 mA input, Source input, 5 V to 24 V
Output frequency 200 kHz <1.6 ft (0.5 m) with USIC and VW3M8210R05, 100 kHz <16.4 ft (5 m) with the normal source input circuit, 200 kHz <32.8 ft (10 m) with the RS422 compatible circuits

Complementary 29

Operating threshold > 12 V no error supply voltage, > 8 V error supply voltage
Input voltage 24 V DC
Input Current 4.3 mA
Voltage state 1 guaranteed >= 11 V
Current consumption 35 mA 24 V DC preactuator, 150 mA 3.3 V DC typical, 200 mA 3.3 V DC maximum
Current state 1 guaranteed >= 2 mA
Voltage state 0 guaranteed 5 V
Current state 0 guaranteed <= 1.5 mA
Response time < 200 µs for position completed input and drive ready input, < 60 µs for origin input and proximity input
Number of outputs 1 pulse output, 2 auxiliary output
Preactuator voltage detection threshold < 8 V error preactuator voltage auxiliary output, < 8 V no error preactuator voltage auxiliary output, > 14 V error preactuator voltage pulse output, > 14 V no error preactuator voltage pulse output
Output voltage 24 V DC
Output voltage limits 19...30 V
Discrete output current 50 mA
Current per channel 0.4 A
Maximum leakage current 0.05 mA at state 0
[Ures] residual voltage 0.15 V at state 1
Response time on output 1.2...1.5 ms on appearance, 1.2...1.5 ms on disappearance
Load impedance ohmic 15000 Ohm
Output overload protection By current limiter and electronic circuit breaker
Output short-circuit protection By current limiter and electronic circuit breaker
Reverse polarity protection By reverse mounting diode on output, Integrated on input
Insulation between channels No insulated
Insul btwn prim and second 1500 Vrms
Insulation resistance > 10 MOhm
Local signalling 1 LED (green) for module operating (RUN), 1 LED (red) for external fault (I/O), 1 LED (red) for internal fault, module failure (ERR), 1 LED (green) for download (DL), 8 LEDs (green) for channel status (CH00), 8 LEDs (green) for channel status (CH01)
Electrical connection 2 connectors 28 pins
Module format Standard
Product certifications CE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22, IECEx zone 2/22

Environment 5

Ambient Air Temperature for Operation -13…158 °F (-25…70 °C)
Derating factor Without
Directives 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive
Standards IEC 61131-2, IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, IEC 61000-6-5, interface type 1 and type 2, IEC 61850-3, location G, IEC 60079-0
Environmental characteristic Hazardous location class I division 2
Show all 55 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number BMXMSP0200
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3595863998634

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin US
Shipping weight 0.147 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for BMXMSP0200

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • UL
  • CSA
  • CE
  • EAC
  • IEC 61131-2
  • IEC 61010-2-201
  • UL 61010-2-201
  • CSA C22.2 No 61010-2-201
  • IACS E10
  • IEC 61850-3
  • location G
  • IEC 60079-0
Quick answers

Questions about the BMXMSP0200

What is the HS code of BMXMSP0200 for customs?

The tariff (HS) code on file for BMXMSP0200 is 853710.

What is the EAN of BMXMSP0200?

The EAN (GTIN) of BMXMSP0200 is 3595863998634.

Where does BMXMSP0200 ship from, and how fast?

BMXMSP0200 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
