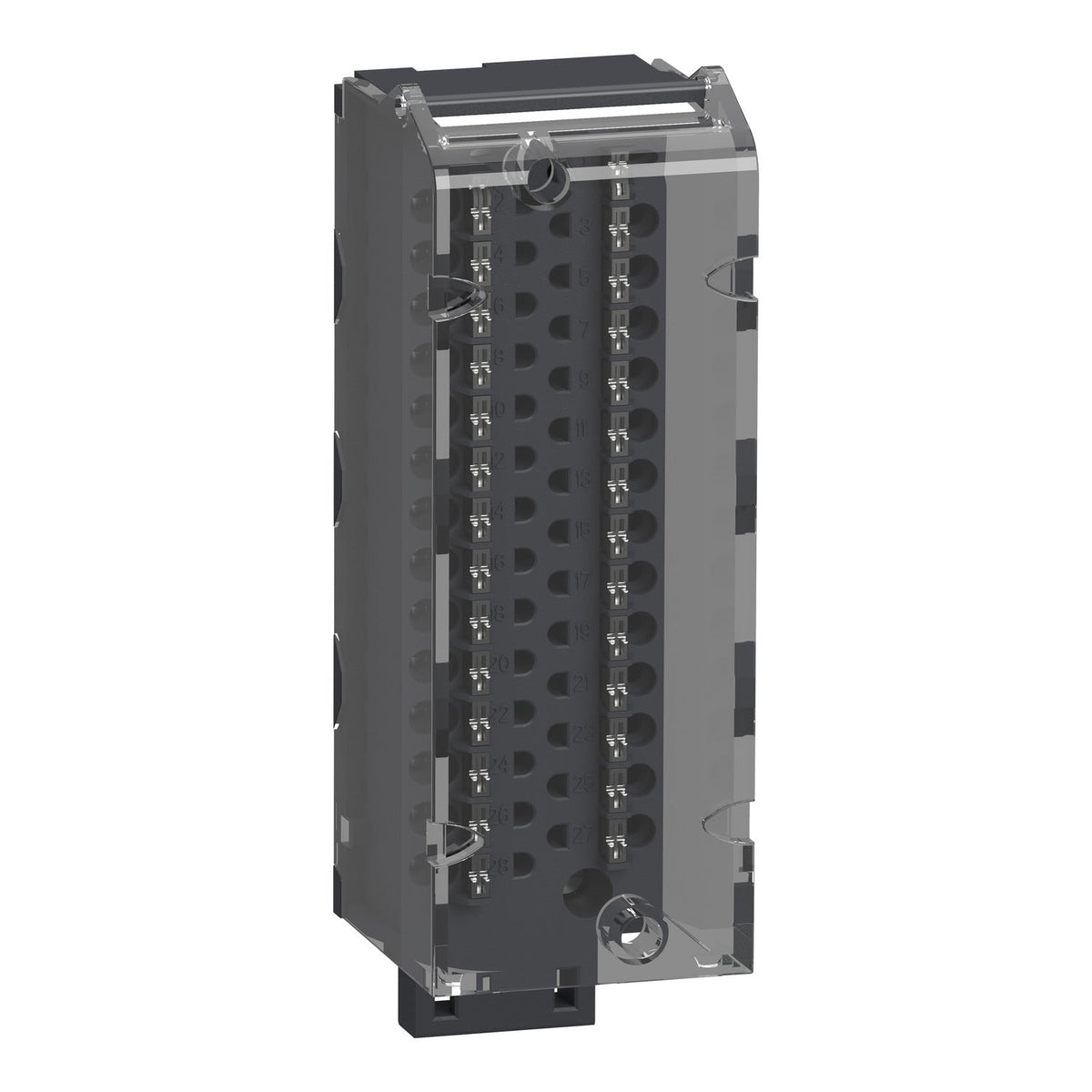

The Schneider Electric BMXFTB2820 is a Modicon X80 removable terminal block with 28 spring-clamp terminals, accepting wires from 0.34 to 1 mm2, for modules with a 28-pin removable terminal-block interface. It weighs 0.07 kg and lets technicians disconnect the field wiring harness from the module as a single unit, without rewiring each terminal individually.
Choose the BMXFTB2820 when the target module uses a 28-pin removable terminal-block interface rather than the more common 20-pin block, such as a pulse train output (PTO) I/O module; its spring-clamp terminals give push-in wiring on that higher pin-count module.
| Range of Product | Modicon X80 |
|---|---|
| Accessory / Separate Part Type | Removable connection block |
| Number of terminals | 28 removable spring terminal block |
| Accessory / separate part destination | For module with 28-pin removable terminal block |
| Net Weight | 0.15 lb(US) (0.07 kg) |
|---|
| Warranty (in months) | 18 |
|---|
| Part number | BMXFTB2820 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3595864012599 |
| Country of origin | TW |
|---|---|
| Shipping weight | 0.07 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for BMXFTB2820 is 853890.
The EAN (GTIN) of BMXFTB2820 is 3595864012599.
BMXFTB2820 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
