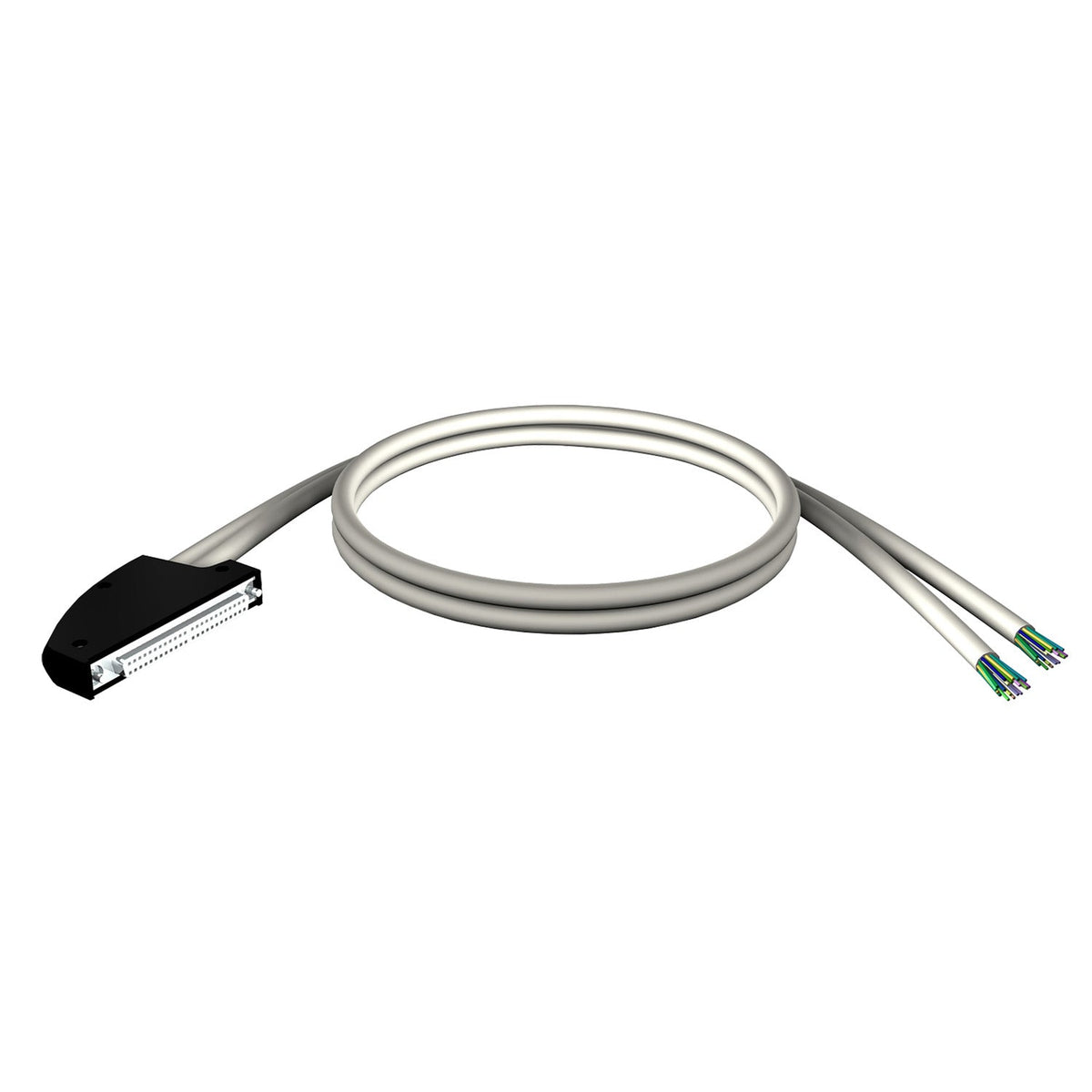

The Schneider Electric BMXFCW503 is a Modicon X80 preformed cord set with a 40-way connector on one end and color-coded flying leads conforming to DIN 47100 on both ends. It carries 40 individually numbered 22 AWG (0.324 mm2) wires over a 5 m length and weighs 1.49 kg, wiring a 40-way I/O module directly to its field terminals.
Choose the BMXFCW503 over a one-end flying-lead cordset when both ends of the run need pre-wired, color-coded terminations rather than a module-side connector at only one end; the 22 AWG / 0.324 mm2 wire gauge and 5 m length suit longer M340 discrete I/O runs. A shorter two-end flying-lead cordset in the same range covers tighter cabinets.
| Range of Product | Modicon X80 |
|---|---|
| Accessory / Separate Part Type | Preformed cordset |
| Accessory / separate part designation | Preformed cordset with one end with flying leads |
| Accessory / separate part destination | For I/O module with 40-way connectors |
| Number of cables | 2 |
| Electrical connection | 1 connector 40 ways, 2 ends with color-coded flying leads DIN 47100 |
| Cable length | 16.4 ft (5 m) |
| Total number of wires | 40 |
|---|---|
| Wire section | 0.0005 in² (0.324 mm²) |
| AWG Gauge | 22 AWG |
| Relative impedance | 10 MOhm <= 50 V, 100 MOhm 50...250 V |
| Net Weight | 3.28 lb(US) (1.49 kg) |
| Standards | CSA C22.2 No 142, EN/IEC 61131-2, UL 508 |
|---|
| Part number | BMXFCW503 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3595863920185 |
| Warranty (in months) | 18 |
|---|
| Country of origin | TN |
|---|---|
| Shipping weight | 1.49 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
