Part number
BMXFCW501S
$112.59 On request Dispatch — · From TürkiyeGet a Quote
Modicon X80

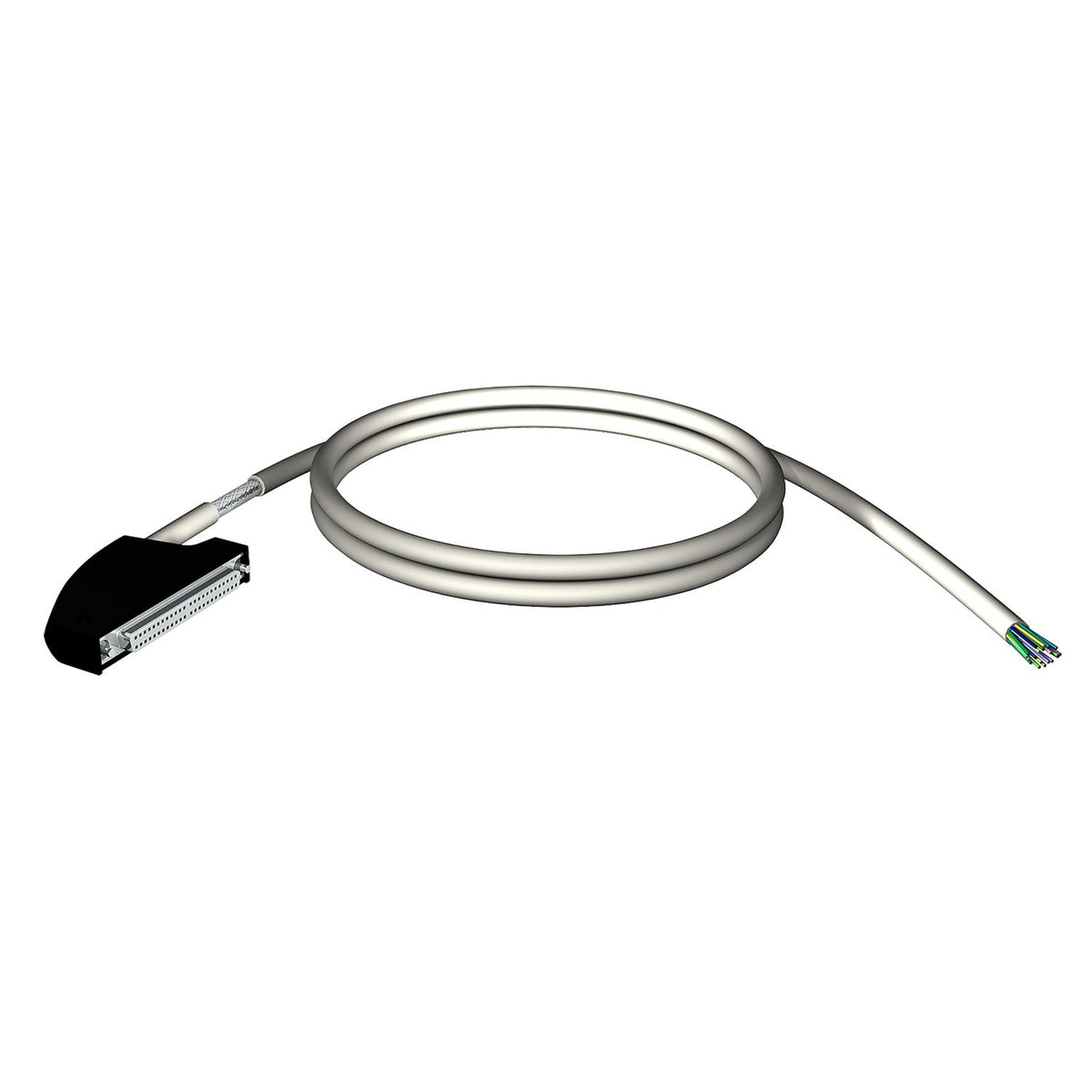

Schneider Electric BMXFCW501S Modicon X80 40-Way Shielded Cord Set One End Flying Leads 5m PLC Accessory

Modicon X80 shielded cord set, 40-way connector to flying leads, 5m, for BMXART0414/BMXART0814 analog I/O modules.

Range of Product
Modicon X80
Accessory / Separate Part Type
Preformed cordset
Product Compatibility
BMXART0414, BMXART0814
Electrical connection
1 connector 40 ways module side, 1 free end with color-coded flying leads terminal block analogue sensor
Cable length
16.4 ft (5 m)
EAN
3595863920161
Description

About the BMXFCW501S

The Schneider Electric BMXFCW501S is a Modicon X80 shielded cord set that wires an analog I/O module to its field terminals. It has a 40-way connector on the module side and a single free end with color-coded flying leads conforming to DIN 47100, compatible with the BMXART0414 and BMXART0814 analog input modules. The cable measures 5 m and weighs 0.71 kg.

Selection Notes

Choose the BMXFCW501S when the analog I/O module sits farther from the terminal strip and a single pre-wired, color-coded flying-lead end at 5 m reaches across the cabinet; it uses the same 40-way connector and DIN 47100 flying-lead termination as the shorter shielded cordset in this range.

Specification

Full specification

19 values · Last verified 30 Oct 2026

Main 5

Range of Product Modicon X80
Accessory / Separate Part Type Preformed cordset
Product Compatibility BMXART0414, BMXART0814
Electrical connection 1 connector 40 ways module side, 1 free end with color-coded flying leads terminal block analogue sensor
Cable length 16.4 ft (5 m)

Complementary 1

Net Weight 1.57 lb(US) (0.71 kg)

Contractual warranty 1

Warranty (in months) 18
Show all 19 specifications ↓ Show less ↑12 more values in Identification, Logistics.

Identification 7

Part number BMXFCW501S
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3595863920161

Logistics 5

Country of origin TN
Shipping weight 0.71 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for BMXFCW501S

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the BMXFCW501S

What is the HS code of BMXFCW501S for customs?

The tariff (HS) code on file for BMXFCW501S is 853890.

What is the EAN of BMXFCW501S?

The EAN (GTIN) of BMXFCW501S is 3595863920161.

Where does BMXFCW501S ship from, and how fast?

BMXFCW501S ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
