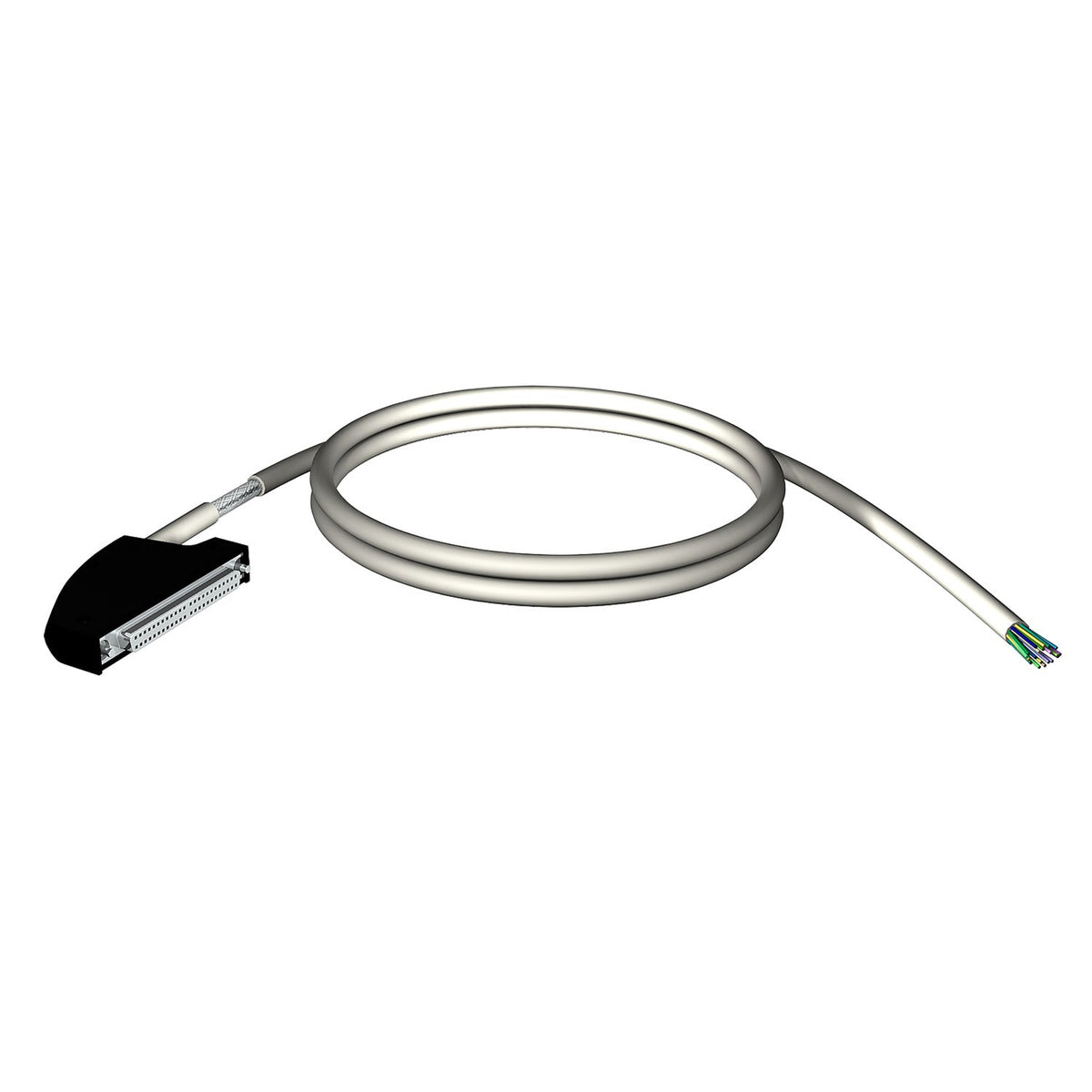

The Schneider Electric BMXFCW301S is a Modicon X80 shielded cord set that wires an analog I/O module to its field terminals. It has a 40-way connector on the module side and a single free end with color-coded flying leads conforming to DIN 47100, compatible with the BMXART0414 and BMXART0814 analog input modules. The cable measures 3 m and weighs 0.48 kg.
Choose the BMXFCW301S when the analog I/O module sits close to the terminal strip and only one end needs pre-wired, color-coded flying leads; the 3 m length suits panel-internal or short cabinet runs. A longer shielded cord set in the same range covers cabinets where the module and terminal strip sit farther apart.
| Range of Product | Modicon X80 |
|---|---|
| Accessory / Separate Part Type | Preformed cordset |
| Product Compatibility | BMXART0414, BMXART0814 |
| Electrical connection | 1 connector 40 ways module side, 1 free end with color-coded flying leads terminal block analogue sensor |
| Cable length | 9.8 ft (3 m) |
| Net Weight | 1.06 lb(US) (0.48 kg) |
|---|
| Warranty (in months) | 18 |
|---|
| Part number | BMXFCW301S |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3595863920154 |
| Country of origin | TN |
|---|---|
| Shipping weight | 0.48 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for BMXFCW301S is 853890.
The EAN (GTIN) of BMXFCW301S is 3595863920154.
BMXFCW301S ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
