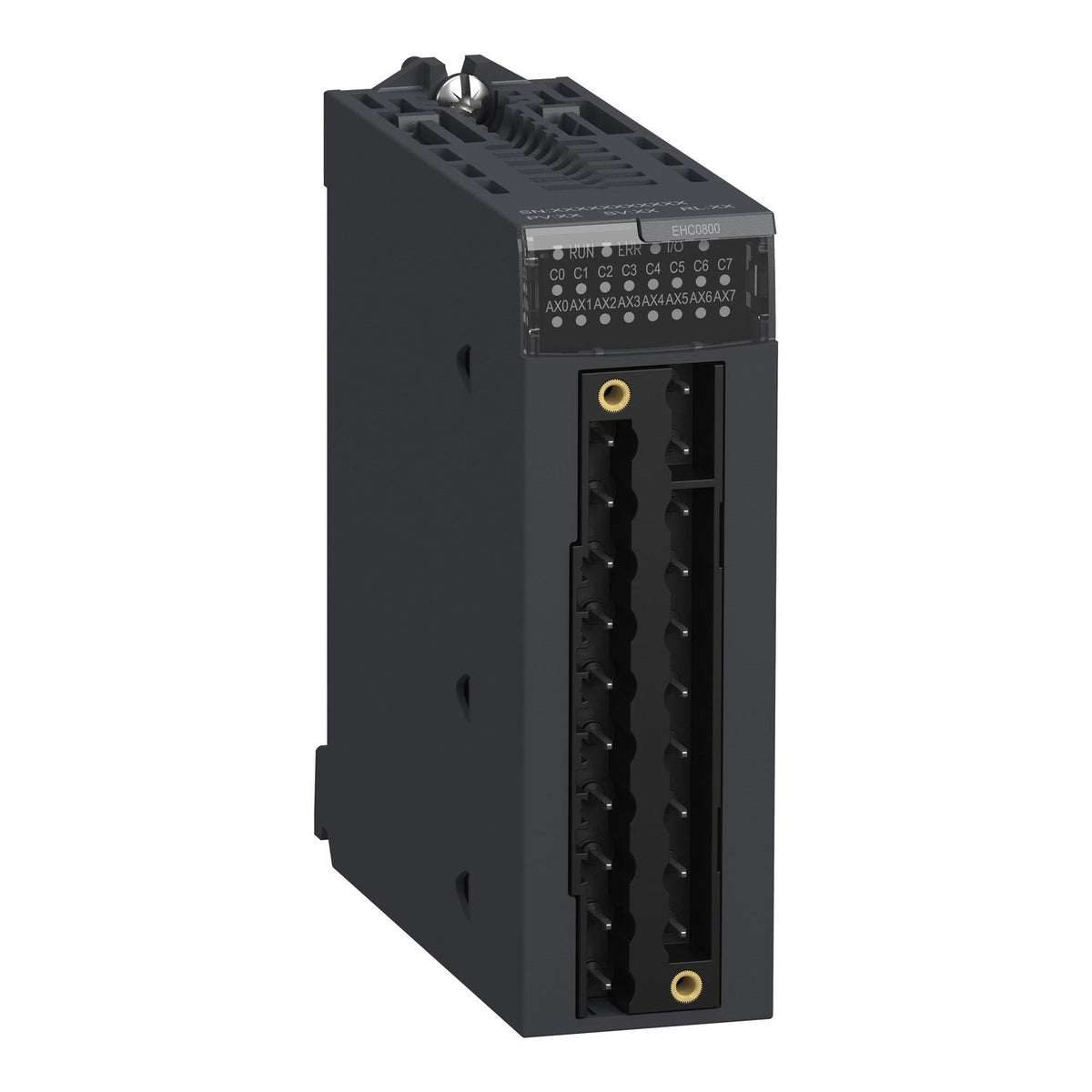

The Schneider Electric BMXEHC0800 is a Modicon M340 high-speed counter module with 8 counting channels — 2 single-mode and 3 special dual-phase-mode inputs per channel type — running at up to 10,000 Hz. It supports up/down counting, 32-bit counting, frequency-meter and loop (modulo) functions, and completes a counting cycle every 5 ms.
The BMXEHC0800 trades top counting speed for channel density, handling 8 independent counters at up to 10,000 Hz versus a 2-channel counter module's 60,000 Hz ceiling — the right choice when a machine needs many medium-speed counting points (part counters, low-speed encoders) rather than one or two very fast ones. A single 20-pin connector wires all 8 channels, simplifying panel wiring compared with the separate per-channel connectors on a 2-channel module. Pick the 2-channel module instead whenever an application needs to resolve pulses above 10,000 Hz.
| Range of Product | Modicon M340 automation platform |
|---|---|
| Product or Component Type | Counter module |
| Number of Channels | 8 |
| Maximum counting frequency | 10000 Hz |
| Number of inputs | 2 single mode), 3 special dual phase mode) |
| Input compatibility | 19.2…30 V 2-wire/3-wire proximity sensor, incremental encoder with push-pull outputs, 10...30 V totem pole |
| Input voltage | 24 V DC type 3 |
| Counter functions | Up/down counter, 32-bit counter counting, Frequency meter, Loop (modulo) counting, Count events, Down counting |
|---|---|
| Cycle time | 5 ms |
| Isolation voltage | 1500 V 60 s |
| Input type | High speed |
| Input voltage limits | 24 V DC |
| Input current | 4.5 mA |
| Voltage state 1 guaranteed | 11...30 V DC |
| Current state 1 guaranteed | > 2 mA (for U >= 11V) |
| Voltage state 0 guaranteed | < 5 V DC |
| Current state 0 guaranteed | < 1.5 mA |
| Electrical connection | 1 connector 20 pins |
| Current consumption | 200 mA 3.3 V DC bus, 80 mA 24 V DC sensor |
| Module format | Standard |
| Net Weight | 0.249 lb(US) (0.113 kg) |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
|---|---|
| Relative Humidity | 10…95 % without condensation |
| IP Degree of Protection | IP20 |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
| Protective treatment | Standard version |
| Part number | BMXEHC0800 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3595863910131 |
| Warranty (in months) | 18 |
|---|
| Country of origin | US |
|---|---|
| Shipping weight | 0.113 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
