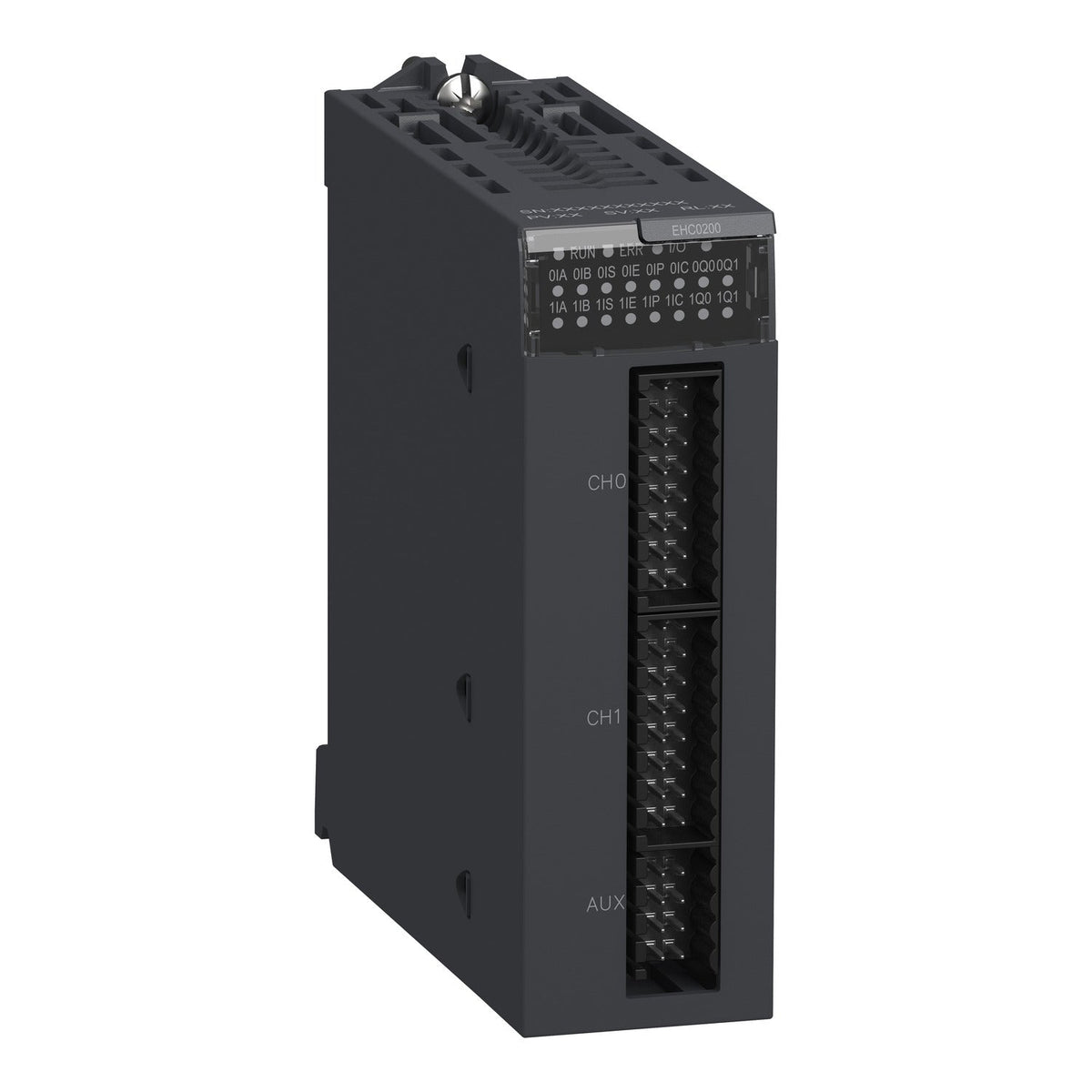

The Schneider Electric BMXEHC0200 is a Modicon M340 high-speed counter module with 2 counting channels, each accepting 6 inputs and driving 2 outputs at 24 V DC. It counts up to 60,000 Hz per channel, supports loop (modulo), up/down, width-modulation, and frequency-meter functions, and completes a counting cycle every 1 ms.
The BMXEHC0200 handles 2 independent high-speed counting channels up to 60,000 Hz, suited to quadrature encoder feedback or fast pulse counting that a standard discrete input module's response time cannot resolve. Each channel's 2 auxiliary outputs (0.5 A, 2 A per module) let the counter drive a preset or compare output directly, without routing the count value back through the CPU's scan cycle. Choose the 8-channel counter module in the range instead when the application needs more counting channels than 2, at the cost of a lower 10,000 Hz per-channel ceiling.
| Range of Product | Modicon M340 automation platform |
|---|---|
| Product or Component Type | Counter module |
| Number of Channels | 2 |
| Maximum counting frequency | 60000 Hz |
| Number of inputs | 6 |
| Input compatibility | 19.2…30 V 2-wire/3-wire proximity sensor, incremental encoder with push-pull outputs, 10...30 V totem pole |
| Input voltage | 24 V DC type 3 |
| Number of outputs | 2 |
| Output voltage | 24 V DC |
| Counter functions | Loop (modulo) counting, Width modulation, Down counting, Measure time periods, Ratio count, Count events, 32-bit counter counting, Frequency meter |
|---|---|
| Cycle time | 1 ms |
| Isolation voltage | 1500 V 60 s |
| Input type | 3 auxiliary input, 3 high speed |
| Input voltage limits | 24 V DC |
| Input current | 2 mA at 11 V |
| Voltage state 1 guaranteed | 10...30 V DC |
| Current state 1 guaranteed | > 2 mA (for U >= 11V) |
| Voltage state 0 guaranteed | < 5 V DC |
| Current state 0 guaranteed | < 1.5 mA |
| Discrete output logic | Positive or negative configurable |
| Maximum output current | 2 A per module, 0.5 A per output |
| Output voltage limits | 19.2...30 V |
| Maximum load current | 1 A per module, 0.5 A per output |
| Maximum leakage current | 0.1 mA at state 0 |
| Maximum voltage drop | <3 V at state 1 |
| Output overload protection | Integrated |
| Output short-circuit protection | 1.5 A integrated |
| Overlap time | 0.2 ms |
| Electrical connection | 1 connector 10 pins for wiring auxiliary input and sensor power supply, 1 connector 16 pins for wiring the sensors of counter 0, 1 connector 16 pins for wiring the sensors of counter 1 |
| Current consumption | 200 mA 3.3 V DC bus, 40 mA 24 V DC rack, 80 mA 24 V DC sensor |
| Module format | Standard |
| Net Weight | 0.247 lb(US) (0.112 kg) |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
|---|---|
| Relative Humidity | 10…95 % without condensation |
| IP Degree of Protection | IP20 |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
| Protective treatment | Standard version |
| Part number | BMXEHC0200 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3595863910148 |
| Warranty (in months) | 18 |
|---|
| Country of origin | US |
|---|---|
| Shipping weight | 0.112 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
