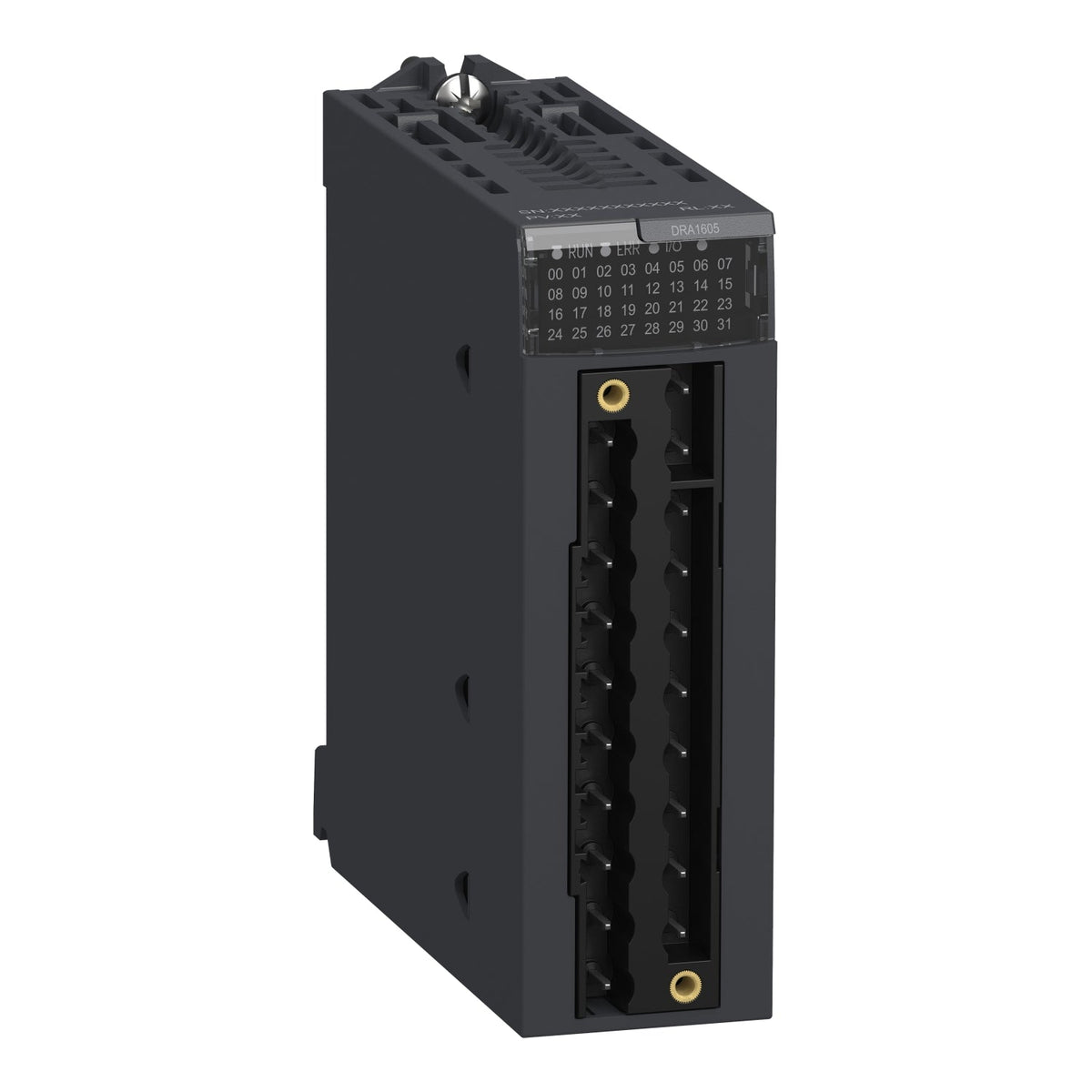

The Schneider Electric BMXDRA1605 is a Modicon X80 discrete output module with 16 normally-open relay outputs rated 24-240 V AC and 24-48 V DC, switching in positive logic. Each output responds within 8 ms on activation and 10 ms on deactivation, with a minimum switching current of 1 mA at 5 V DC and an MTBF of 2,100,000 hours.
The BMXDRA1605 switches 16 independent normally-open relay contacts rated across 24-240 V AC or 24-48 V DC, so the same module wires to AC pilot devices, DC solenoids, or small motor contactor coils without a separate driver stage. Its 8 ms activation / 10 ms deactivation response is typical relay speed — slower than a triac output module but able to switch DC loads, which triac outputs cannot. The 2,100,000 hour MTBF reflects the electronic driving circuit only; relay contact life still depends on the switched load current and duty cycle in the application.
| Range of Product | Modicon X80 |
|---|---|
| Product or Component Type | Discrete output module |
| Discrete output logic | Positive |
| Minimum switching current | 1 mA 5 V DC |
|---|---|
| Response time on output | < 8 ms activation, < 10 ms deactivation |
| Insulation resistance | > 10 MOhm 500 V DC |
| MTBF reliability | 2100000 H |
| Net Weight | 0.33 lb(US) (0.15 kg) |
| IP Degree of Protection | IP20 |
|---|---|
| Protective treatment | Standard version |
| Dielectric strength | 2000 V AC 50/60 Hz 1 min |
| Relative humidity | 5…95 % 131 °F (55 °C) without condensation |
| Part number | BMXDRA1605 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3595863909234 |
| Warranty (in months) | 18 |
|---|
| Country of origin | US |
|---|---|
| Shipping weight | 0.15 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
