Modicon X80

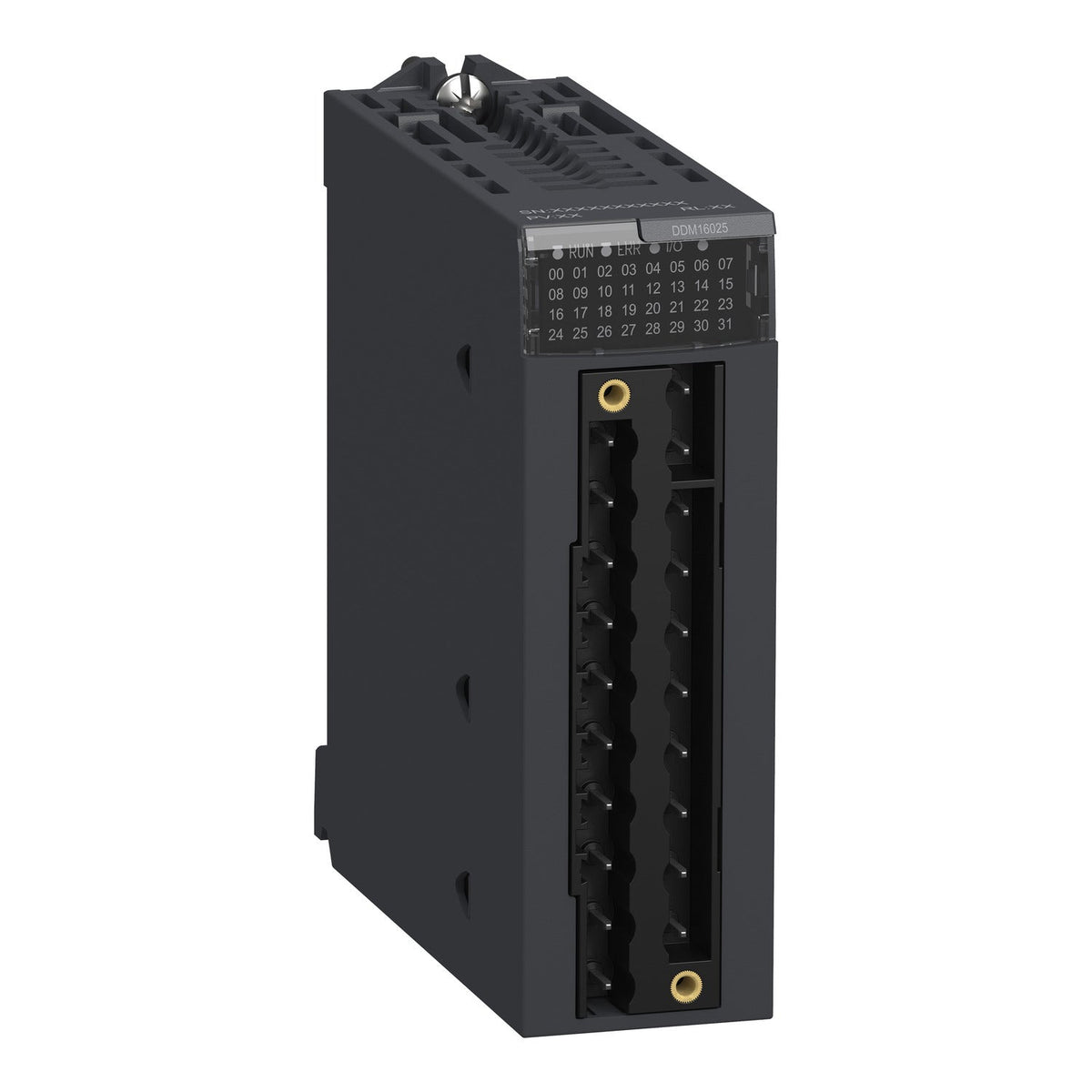

Schneider Electric BMXDDM16025 Modicon X80 8 Inputs 8 Relay Outputs 24V DC Mixed I/O PLC I/O Module

Schneider Electric BMXDDM16025 Modicon X80 mixed I/O module, 8 x 24 V DC inputs, 8 relay outputs, IP20.

Rated operational voltage
24–240 V AC
EAN
3595863910612
Description

About the BMXDDM16025

The Schneider Electric BMXDDM16025 is a Modicon X80 mixed discrete I/O module combining 8 isolated 24 V DC inputs with 8 relay outputs rated up to 264 V AC / 125 V DC at 2 A per channel. Output response time is under 10 ms on activation and 8 ms on deactivation, with a maximum power dissipation of 3.1 W.

Certifications & Standards

  • RCM
  • CSA
  • EAC
  • CE
  • UL
  • EN 61131-2
  • EN 61000-6-4
  • EN 61000-6-2
  • EN 61010-2-201

Selection Notes

The BMXDDM16025 combines 8 24 V DC inputs with 8 relay outputs on one module, useful where a rack has only one free slot left for both sensing and switching on a small machine section. Its relay outputs switch up to 264 V AC or 125 V DC at 2 A per channel — a wider voltage range than a solid-state triac or transistor output module, at the cost of a slower ~10 ms switching time and finite relay contact life at 1 Hz duty. Use a dedicated 16-channel input or output module instead when the application needs more than 8 points of either type, since this module's count is fixed at 8 and 8.

Specification

Full specification

34 values · Last verified 30 Oct 2026

Main 3

Range of Product Modicon X80
Product or Component Type Discrete I/O module
Discrete input number 8

Complementary 13

Input impedance 6800 Ohm
Paralleling of inputs No
Minimum switching current 1 mA 5 V DC
Response time on output <= 8 ms deactivation, <= 10 ms activation
Insulation resistance > 10 MOhm 500 V DC
DC typical response time 4 ms
DC maximum response time 7 ms
Switching frequency 1 Hz
Maximum switching voltage 125 V DC, 264 V AC
MTBF reliability 940000 H
Protection type 1 external fuse per group of input channel 0.5 A fast blow, reverse polarity protection on input, 1 external fuse per output channel or group of output channel fast blow
Voltage detection threshold < 14 V DC sensor fault, > 18 V DC sensor OK
Net Weight 0.298 lb(US) (0.135 kg)

Environment 5

IP Degree of Protection IP20
Protective treatment Standard version
Directives 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Dielectric strength 1500 V AC 50/60 Hz 1 minute, primary/secondary, 2830 V AC 50/60 Hz 1 minute, output relay, 500 V DC 1 minute, between group of I/O
Relative humidity 5…95 % 131 °F (55 °C) without condensation
Show all 34 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number BMXDDM16025
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3595863910612

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin US
Shipping weight 0.135 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for BMXDDM16025

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • CSA
  • UL
  • EAC
Quick answers

Questions about the BMXDDM16025

Which supply voltage is BMXDDM16025 rated for?

The rated operational voltage of BMXDDM16025 is 24–240 V AC.

What is the HS code of BMXDDM16025 for customs?

The tariff (HS) code on file for BMXDDM16025 is 853710.

What is the EAN of BMXDDM16025?

The EAN (GTIN) of BMXDDM16025 is 3595863910612.

Where does BMXDDM16025 ship from, and how fast?

BMXDDM16025 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
