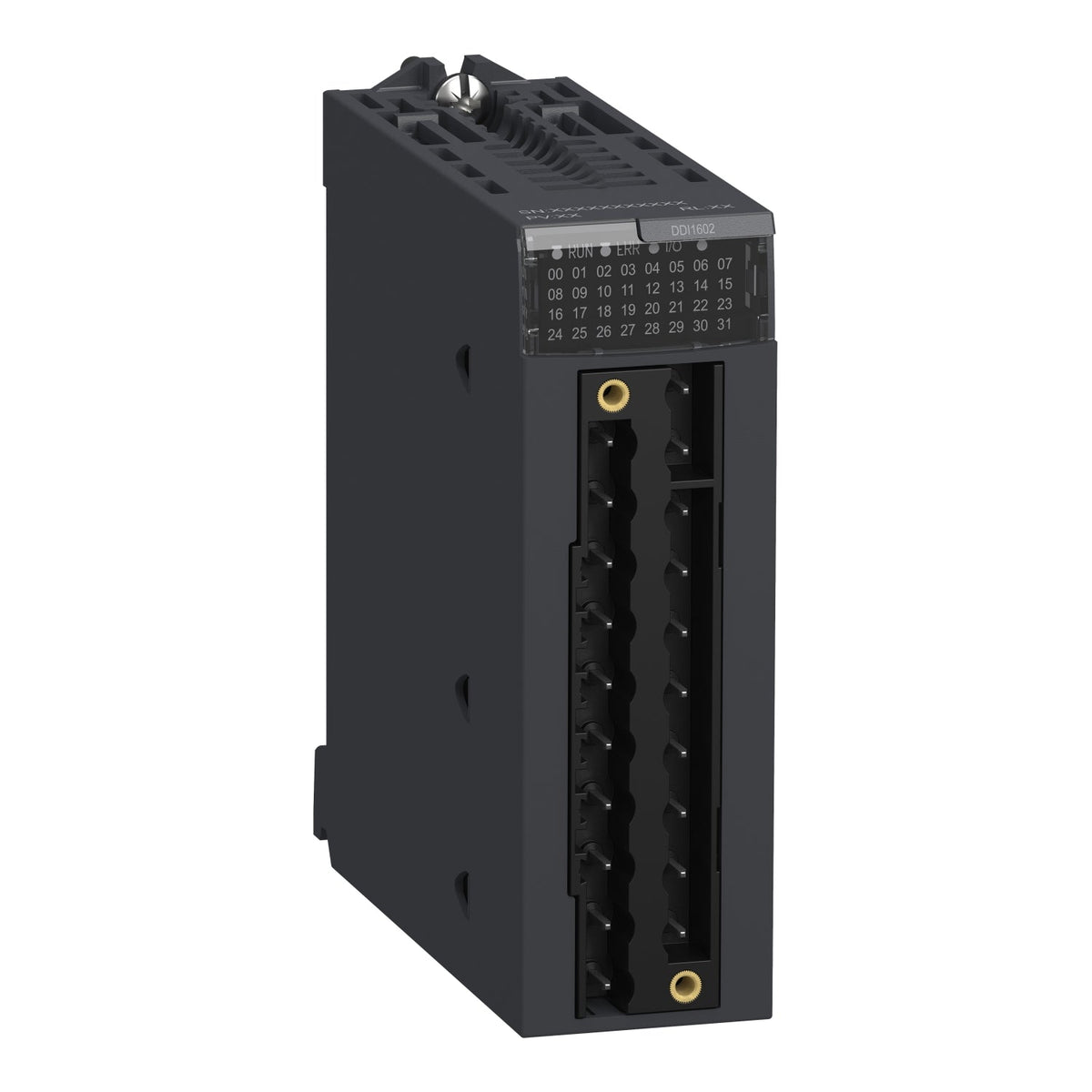

Schneider Electric BMXDDI1602 Modicon X80 16 Discrete Inputs 24V DC PLC I/O Module

Schneider Electric BMXDDI1602 Modicon X80 discrete input module, 16 isolated 24 V DC sink inputs, IP20.

Range of Product
Modicon X80
Product or Component Type
Discrete input module
Device Application
Industrial Application
Discrete input number
16
Discrete input voltage
24 V DCisolated
Discrete input logic
Positive logic (sink)
EAN
3595863910001
Description

About the BMXDDI1602

The Schneider Electric BMXDDI1602 is a Modicon X80 discrete input module with 16 isolated 24 V DC inputs in positive (sink) logic, conforming to IEC 60947-5-2. Each input draws 3.5 mA at 24 V DC, responds within 4 ms typical / 7 ms maximum, and supports hot swapping so a channel can be replaced without stopping the process.

Certifications & Standards

  • CE
  • IEC 61131-2

Selection Notes

The BMXDDI1602 reads 16 isolated 24 V DC sink-logic inputs with reverse-polarity protection on each channel, so a miswired field connection does not damage the module. Hot-swap fallback support lets the module be pulled and replaced without dropping the rest of the rack's I/O, a detail that matters on a running process line. Its 4 ms typical response time suits standard sensor and pushbutton wiring; choose a dedicated high-speed counter module instead for pulse trains above a few hundred Hz.

Specification

Full specification

59 values · Last verified 30 Oct 2026

Main 6

Range of Product Modicon X80
Product or Component Type Discrete input module
Device Application Industrial Application
Discrete input number 16
Discrete input voltage 24 V DCisolated
Discrete input logic Positive logic (sink)

Complementary 26

Discrete input number 16 isolated conforming to IEC 60947-5-2 at 24 V DC
Input wiring mode 2 or 3 wires
Discrete input current 3.5 mA at 24 V DC
Voltage state 1 guaranteed >= 11 V
Voltage state 0 guaranteed < 5 V
Current state 1 guaranteed >= 2 mA
Current state 0 guaranteed <= 1.5 mA
Input impedance 6800 Ohm
Paralleling of inputs Yes
Input protection type Reverse polarity protection
Insulation resistance > 10 MOhm 500 V DC
DC typical response time 4 ms
DC maximum response time 7 ms
Sensor power supply 19…30 V
Typical current consumption 76 mA DC
Current consumption <= 107 mA 3.3 V DC
Power dissipation in W 2.5 W
Isolation between channels and bus 1500 V for 1 minute
Hot swapping fallback Yes
MTBF reliability 775000 H
Voltage detection threshold < 14 V DC sensor fault, > 18 V DC sensor OK
Local signalling 1 LED (green) for module operating (RUN), 1 LED per channel (green) for channel diagnostic, 1 LED (red) for module error (ERR), 1 LED (red) for module I/O
Height 4.08 in (103.7 mm)
Width 1.3 in (32 mm)
Depth 3.4 in (86 mm)
Net Weight 0.254 lb(US) (0.115 kg)

Environment 14

IP Degree of Protection IP20
Protective treatment Standard version
Marking CE, UKCA, CULus, EAC, RCM
Standards IEC 61131-2
Directives 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Dielectric strength 1500 V AC 50/60 Hz 1 minute, primary/secondary
Ambient air temperature for operation 32…140 °F (0…60 °C)
Ambient air temperature for storage -40…185 °F (-40…85 °C)
Relative humidity 5…95 % 131 °F (55 °C) without condensation
Operating altitude 0...6561.68 ft (0...2000 m), 2000...5000 m with derating
Pollution degree 2
Environmental characteristic Fungal spore resistant class 3B2
Vibration resistance 3 gn
Shock resistance 30 gn
Show all 59 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number BMXDDI1602
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3595863910001

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin US
Shipping weight 0.115 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
