Part number
BMXDAI1604
$258.06 On request Dispatch — · From TürkiyeGet a Quote
Modicon X80

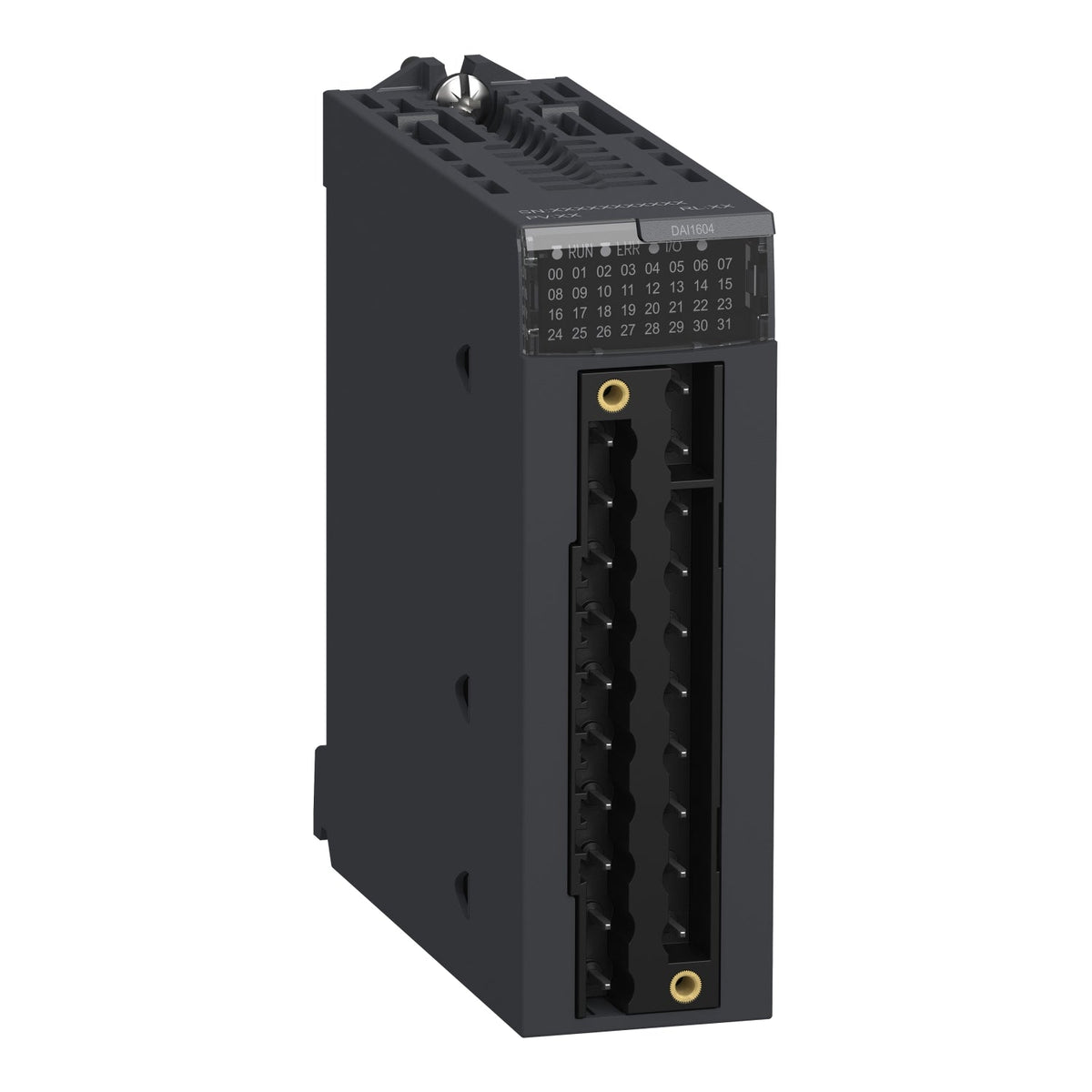

Schneider Electric BMXDAI1604 Modicon X80 16 Discrete Inputs 100-120V AC PLC I/O Module

Schneider Electric BMXDAI1604 Modicon X80 discrete input module, 16 isolated 100-120 V AC inputs, IP20.

Rated operational voltage
100–120 V AC
EAN
3595863909999
Description

About the BMXDAI1604

The Schneider Electric BMXDAI1604 is a Modicon X80 discrete input module with 16 isolated inputs rated 100-120 V AC, conforming to IEC 60947-5-2 and IEC 61131-2 Type 3. Each input draws 5 mA at 100-120 V AC, switches state within 10 ms on activation and 20 ms on deactivation, and dissipates 3.8 W across the module.

Certifications & Standards

  • EAC
  • RCM
  • UL
  • CSA
  • Merchant Navy
  • CE
  • IEC 61131-2
  • CSA C22.2 No 142
  • CSA C22.2 No 213
  • UL 508

Selection Notes

The BMXDAI1604 reads 16 isolated 100-120 V AC inputs, twice the density of the 8-input 200-240 V AC variant, for panels wired on the lower US/Japan line-voltage band instead of 200-240 V. Its 0.5 A fast-blow external fuse per channel group protects the module from a shorted field wire without taking the whole input bank down. Pick the 200-240 V AC variant instead when the field devices are wired to the higher voltage band — the two are not interchangeable on the same input circuit.

Specification

Full specification

56 values · Last verified 30 Oct 2026

Main 6

Range of Product Modicon X80
Product or Component Type Discrete input module
Device Application Industrial Application
Discrete input number 16
Discrete input voltage 100...120 V ACisolated
Discrete input logic Positive logic (sink)

Complementary 24

Discrete input number 16 isolated conforming to IEC 60947-5-2 at 100...120 V AC, 16 isolated conforming to IEC 61131-2 type 3 at 100...120 V AC
Input wiring mode 2 or 3 wires
Discrete input current 5 mA at 100...120 V AC
Voltage state 1 guaranteed >= 74 V
Voltage state 0 guaranteed <= 20 V
Current state 1 guaranteed >= 2.5 mA
Current state 0 guaranteed <= 1 mA
Discrete input frequency 50 Hz (47…63 Hz), 60 Hz (47…63 Hz)
Input impedance 13000 Ohm
Insulation resistance > 10 MOhm 500 V DC
AC activation response time 10 ms
AC deactivation response time 20 ms
Sensor power supply 85…132 V
Typical current consumption 76 mA DC
Current consumption <= 107 mA 3.3 V DC
Power dissipation in W 3.8 W
Isolation between channels and bus 1500 V for 1 minute
MTBF reliability 1120000 H
Voltage detection threshold < 40 V AC sensor fault, > 82 V AC sensor OK
Local signalling 1 LED (green) for module operating (RUN), 1 LED per channel (green) for channel diagnostic, 1 LED (red) for module error (ERR), 1 LED (red) for module I/O
Height 4.08 in (103.7 mm)
Width 1.3 in (32 mm)
Depth 3.4 in (86 mm)
Net Weight 0.254 lb(US) (0.115 kg)

Environment 13

IP Degree of Protection IP20
Protective treatment Standard version
Marking CE, UKCA, CULus, EAC, RCM
Standards IEC 61131-2
Directives 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Dielectric strength 1500 V AC 50/60 Hz 1 min
Ambient air temperature for operation 32…140 °F (0…60 °C)
Ambient air temperature for storage -40…185 °F (-40…85 °C)
Relative humidity 5…95 % 131 °F (55 °C) without condensation
Operating altitude 0...6561.68 ft (0...2000 m), 2000...5000 m with derating
Pollution degree 2
Vibration resistance 3 gn
Shock resistance 30 gn
Show all 56 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number BMXDAI1604
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3595863909999

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin US
Shipping weight 0.115 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for BMXDAI1604

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • IEC 61131-2
Quick answers

Questions about the BMXDAI1604

Which supply voltage is BMXDAI1604 rated for?

The rated operational voltage of BMXDAI1604 is 100–120 V AC.

What is the HS code of BMXDAI1604 for customs?

The tariff (HS) code on file for BMXDAI1604 is 853710.

What is the EAN of BMXDAI1604?

The EAN (GTIN) of BMXDAI1604 is 3595863909999.

Where does BMXDAI1604 ship from, and how fast?

BMXDAI1604 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
