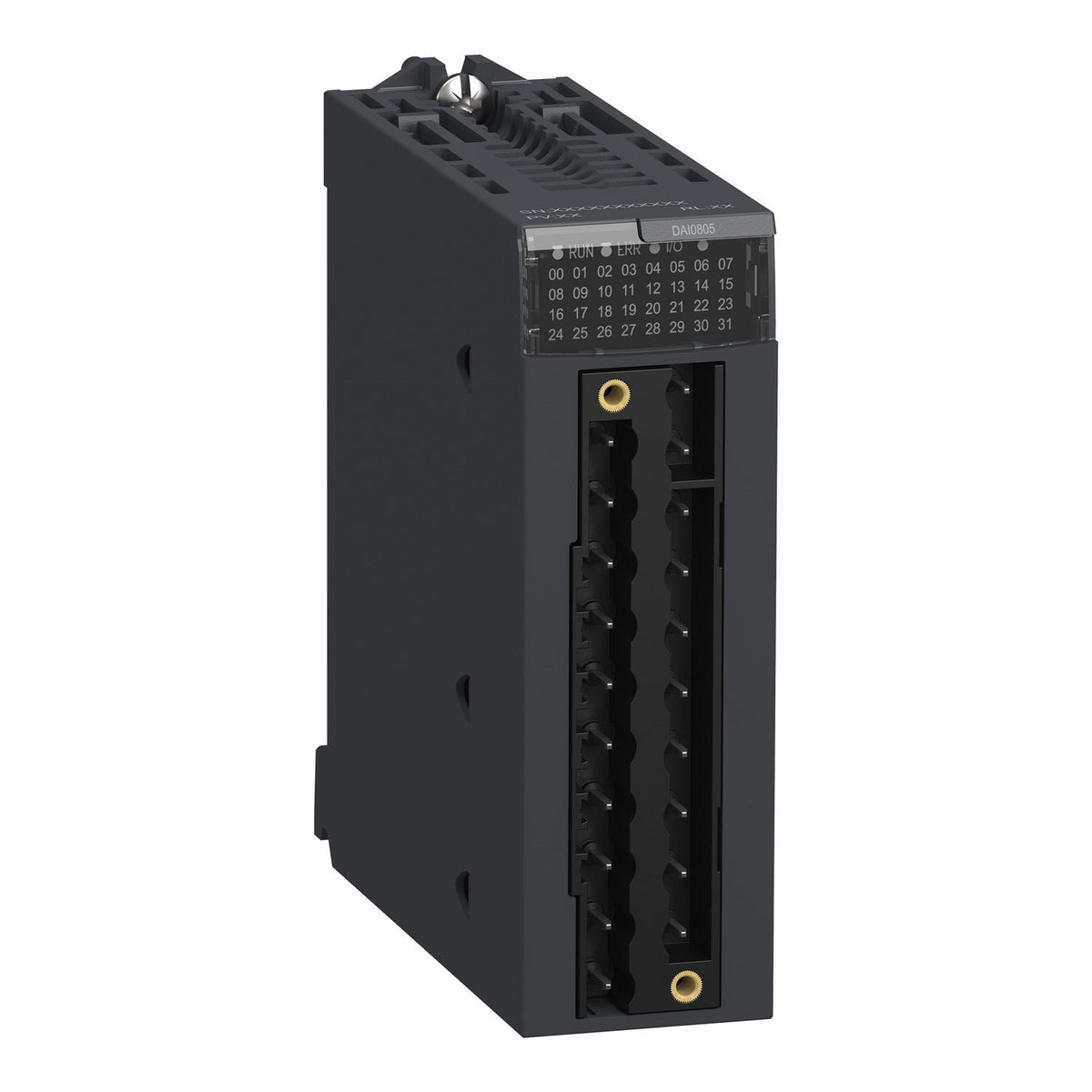

The Schneider Electric BMXDAI0805 is a Modicon X80 discrete input module with 8 isolated inputs rated 200-240 V AC, conforming to IEC 60947-5-2 and IEC 61131-2 Type 2. Each input draws 10.4 mA at 200-240 V AC, switches state within 10 ms on activation and 20 ms on deactivation, and is isolated from the bus and between channels at 1500 V.
The BMXDAI0805 reads 8 isolated 200-240 V AC field inputs with 1500 V channel-to-channel isolation, so a fault on one sensing circuit does not propagate to adjacent channels or the backplane. Its 10 ms activation / 20 ms deactivation response time suits standard discrete sensing — limit switches, float switches, selector contacts — rather than high-speed pulse counting, which belongs on a dedicated counter module. Use the higher-density 16-input AC variant in the range instead when the panel needs more 200-240 V AC points per slot.
| Range of Product | Modicon X80 |
|---|---|
| Product or Component Type | Discrete input module |
| Device Application | Industrial Application |
| Discrete input number | 8 |
| Discrete input voltage | 200...240 V DCisolated |
| Discrete input number | 8 isolated conforming to IEC 60947-5-2 at 200...240 V AC, 8 isolated conforming to IEC 61131-2 Type 2 at 200...240 V AC |
|---|---|
| Input wiring mode | 2 or 3 wires |
| Discrete input current | 10.4 mA at 200...240 V AC |
| Voltage state 1 guaranteed | >= 159 V |
| Voltage state 0 guaranteed | <= 40 V |
| Current state 1 guaranteed | >= 4 mA |
| Discrete input frequency | 50 Hz (47…63 Hz), 60 Hz (47…63 Hz) |
| Input impedance | 21000 Ohm |
| Insulation resistance | > 10 MOhm 500 V DC |
| AC activation response time | 10 ms |
| AC deactivation response time | 20 ms |
| Sensor power supply | 170…264 V |
| Typical current consumption | 76 mA, 93.6 mA |
| Current consumption | <= 126 mA 3.3 V DC, <= 154.8 mA 24 V DC |
| Power dissipation in W | 4.73 W |
| Isolation between channels and bus | 1500 V for 1 minute |
| MTBF reliability | 1700000 H |
| Voltage detection threshold | > 164 V AC sensor OK, < 80 V AC sensor fault |
| Local signalling | 1 LED (green) for module operating (RUN), 1 LED per channel (green) for channel diagnostic, 1 LED (red) for module error (ERR), 1 LED (red) for module I/O |
| Height | 4.08 in (103.7 mm) |
| Width | 1.3 in (32 mm) |
| Depth | 3.4 in (86 mm) |
| Net Weight | 0.26 lb(US) (0.12 kg) |
| IP Degree of Protection | IP20 |
|---|---|
| Protective treatment | Standard version |
| Marking | CE, UKCA, CULus, RCM, EAC |
| Standards | IEC 61131-2 |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
| Dielectric strength | 1500 V AC 50/60 Hz 1 min |
| Ambient air temperature for operation | 32…140 °F (0…60 °C) |
| Ambient air temperature for storage | -40…185 °F (-40…85 °C) |
| Relative humidity | 5…95 % 131 °F (55 °C) without condensation |
| Operating altitude | 0...6561.68 ft (0...2000 m), 2000...5000 m with derating |
| Pollution degree | 2 |
| Vibration resistance | 3 gn |
| Shock resistance | 30 gn |
| Part number | BMXDAI0805 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3595864081595 |
| Warranty (in months) | 18 |
|---|
| Country of origin | US |
|---|---|
| Shipping weight | 0.12 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
