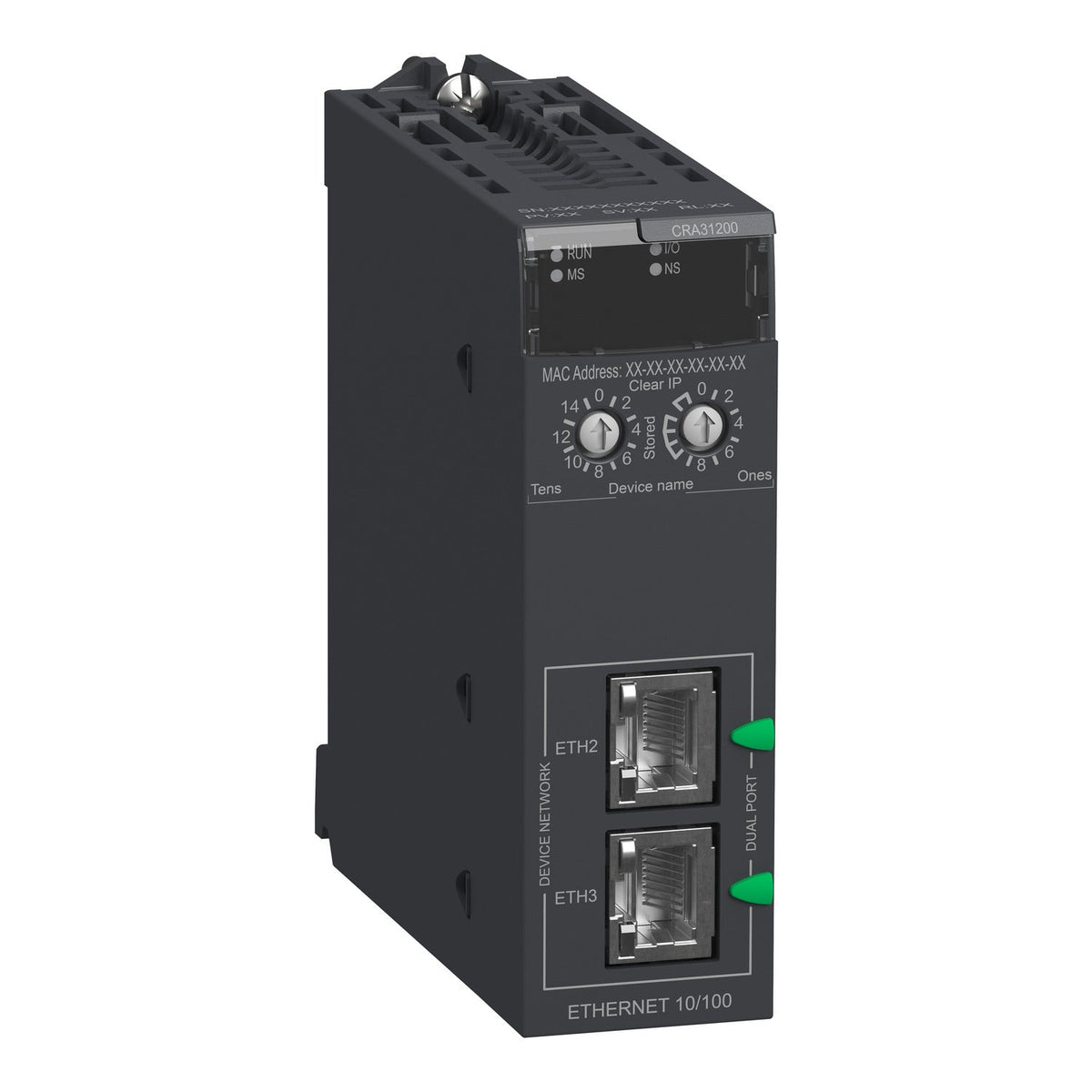

The Schneider Electric BMXCRA31200 is a Modicon X80 Ethernet remote I/O (RIO) drop adapter that links a standard-format I/O rack to a Modicon M580 or Quantum RIO network over 2 EtherNet/IP ports. It supports up to 128 discrete and 16 analog channels per drop, runs a ring topology with RSTP, and reports diagnostics for every remote I/O device on the drop.
The BMXCRA31200 extends a Modicon X80 rack over EtherNet/IP as a standard-format remote I/O drop, collecting up to 128 discrete and 16 analog channels and publishing them to the remote I/O head adapter on a Modicon M580 or Quantum controller. Its ring topology with RSTP keeps the drop on the network if one Ethernet segment fails, and Configuration Change On The Fly (CCOTF) lets I/O modules in the drop be added or swapped without stopping the process. Choose this adapter, not a point-to-point Modbus TCP link, whenever the RIO network itself must run in a redundant ring.
| Range of Product | Modicon X80 |
|---|---|
| Range Compatibility | Modicon M580, Modicon Quantum |
| Product or Component Type | I/O expansion module |
| Device Application | X80 Ethernet RIO drop adaptor |
| Product Specific Application | For remote I/O modules |
| Bus type | Bus X across the remote backplane |
|---|---|
| Number of port | 2 |
| Integrated connection type | 2 port Ethernet RIO Network (RSTP) |
| Communication Network Type | IPv4 (internet protocol) |
| Communication Port Protocol | EtherNet/IP |
| Communication Service | Ethernet/IP adapter, RSTP (Ring topology support), Ethernet RIO network, Quality of Service (QoS), CIP Explicit messaging (server), Modbus TCP server for module diagnostics, DHCP client, TFTP client, FTP client, FDR client, SNTP client, SNMP agent |
| Cybersecurity | Syslog protocol support |
| Connector Type | 2 RJ45 |
| Exchange mode | Half duplex, full duplex, autonegotiation, auto MDIX |
| Transmission Rate | 10/100 Mbit/s |
| Port Ethernet | 10/100BASE-TX |
| Function Available | CCOTF (configuration change on the fly), Input data is collected and published to the remote I/O head adaptor, Output modules are updated with the data received from remote I/O head adaptor, Diagnostics for remote I/O devices (Device DDT), I/O extension rack |
| Data recording | 10 ms time stamps |
| Topology | Ring |
| Local signalling | 1 LED (green) for module active (RUN), 1 LED (red) for module error (ERR), 1 LED (green/red) for module status (Mod Status), 1 LED (green/red) for network communication status (Net Status), 1 LED (green) for Ethernet link diagnostics (STS) |
| Current Consumption | 1200 mA |
| Input voltage | 3.3 V DC |
| Product compatibility | 0…128 discrete channel, 0…16 analog channel |
| Module format | Standard |
| Net Weight | 0.496 lb(US) (0.225 kg) |
| Maximum altitude transport | 9842.5 ft (3000 m) |
| Relative Humidity | 95 % without condensation |
| Fixing Mode | By screws |
| Mounting Mode | Rack-mounted |
| Width | 1.3 in (32 mm) |
| Height | 3.9 in (100 mm) |
| Depth | 3.4 in (87.5 mm) |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
|---|---|
| Product certifications | CE, UL, CSA, RCM, EAC, Merchant Navy |
| Standards | IEC 61131-2, IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, IEC 61000-6-5, interface type 1 and type 2, IEC 61850-3, location G |
| Environmental characteristic | Standard environment |
| IP Degree of Protection | IP20 |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Operating altitude | <= 6561.68 ft (2000 m) |
| Part number | BMXCRA31200 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Phase-out announced by the manufacturer |
| Last order date | 1 Dec 2027 · as announced for Türkiye, our sourcing market |
| EAN | 3595864132457 |
| Warranty (in months) | 18 |
|---|
| Country of origin | US |
|---|---|
| Shipping weight | 0.225 kg |
| Ships from | Türkiye |
