Part number
BMXCPS3020
$622.38 On request Dispatch — · From TürkiyeGet a Quote
Modicon X80

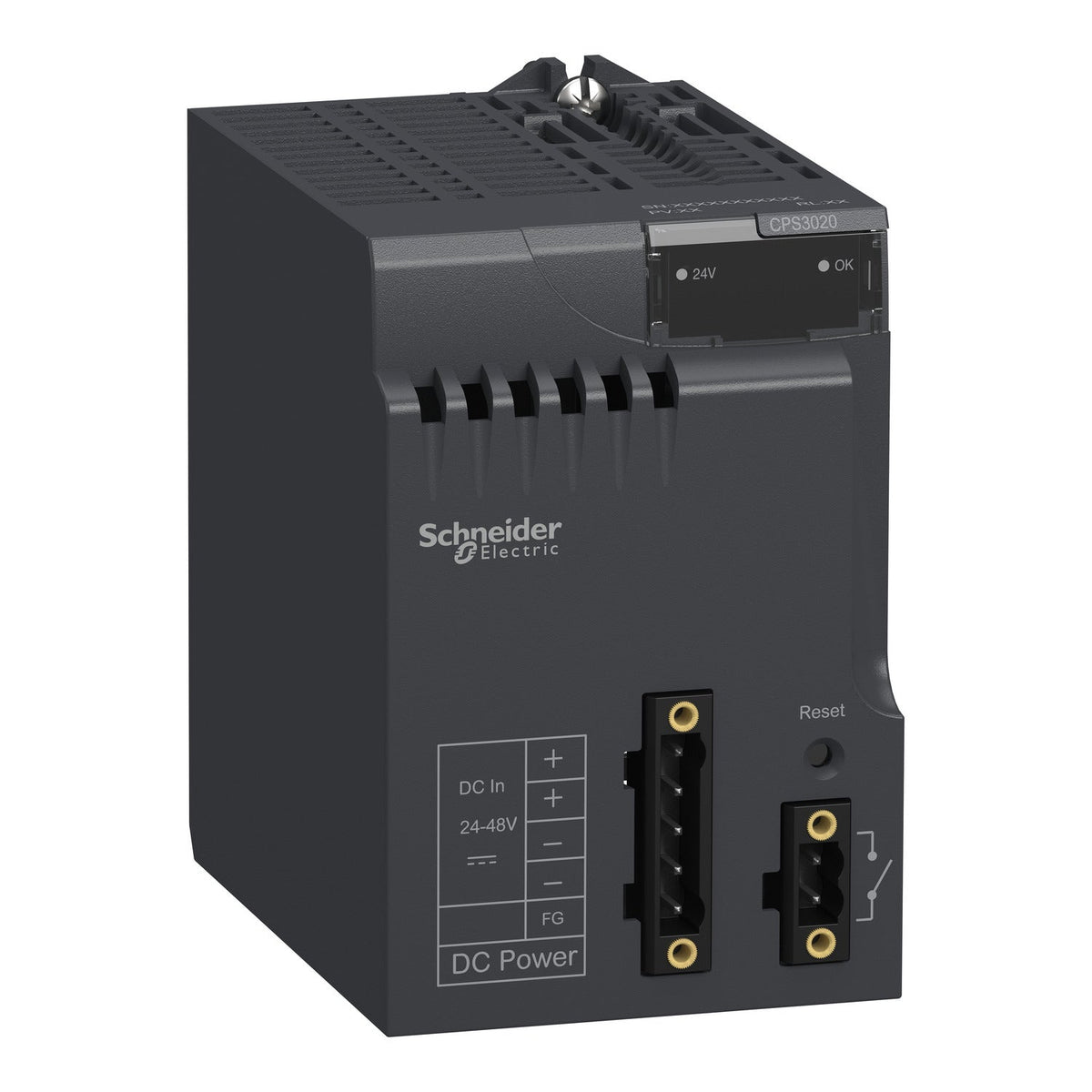

Schneider Electric BMXCPS3020 Modicon X80 24-48V DC 31.2W Power Supply Module PLC Power Supply

Schneider Electric BMXCPS3020 Modicon X80 power supply, isolated 24-48 V DC input, 31.2 W, IP20.

Range of Product
Modicon X80
Product or Component Type
Power supply module
backplane compatibility
Not compatible with BMEXBP..02
Primary Voltage
24...48 V isolated
Supply circuit type
DC
Secondary power
15 W 3.3 V DC I/O module logic power supply, 31.2 W 24 V DC I/O module power supply and processor
EAN
3595863908985
Description

About the BMXCPS3020

The Schneider Electric BMXCPS3020 is a Modicon X80 power supply module that converts an isolated 24-48 V DC primary supply into the secondary rails a Modicon M340 or M580 rack needs to run. It delivers 31.2 W on the 24 V DC I/O-and-processor rail and 15 W on the 3.3 V DC I/O logic rail, with a maximum power dissipation of 8.5 W.

Selection Notes

The BMXCPS3020 accepts a wider 24-48 V DC isolated input than the fixed-24 V DC variant in the range, so it fits control supplies that run at 48 V DC or sag across that band; its 31.2 W I/O-and-processor rail is roughly double the fixed-24 V variant's rating, covering larger discrete and analog I/O counts on the same rack. At 48 V the inrush current doubles to 60 A versus 30 A at 24 V, a detail worth checking against the upstream DC supply's current-limiting setting. Keep the power supply cable run within 10 m at 1.5 mm² (or 15 m at 2.5 mm²) — shorter than the fixed-24 V variant's allowance because of the higher secondary current.

Specification

Full specification

45 values · Last verified 30 Oct 2026

Main 6

Range of Product Modicon X80
Product or Component Type Power supply module
backplane compatibility Not compatible with BMEXBP..02
Primary Voltage 24...48 V isolated
Supply circuit type DC
Secondary power 15 W 3.3 V DC I/O module logic power supply, 31.2 W 24 V DC I/O module power supply and processor

Complementary 15

Primary voltage limit 18...62.4 V
Input current 0.83 A 48 V, 1.65 A 24 V
Inrush current 30 A 24 V, 60 A 48 V
I²t on activation 1 A².s 24 V, 3 A².s 48 V
It on activation 0.2 A.s 24 V, 0.3 A.s 48 V
MTBF reliability 4600000 H
Protection type Internal fuse not accessible primary circuit, Overload protection secondary circuit, 24 V sensor power supply, Overvoltage protection secondary circuit, 24 V sensor power supply, Short-circuit protection secondary circuit, 24 V sensor power supply
Current at secondary voltage 1.3 A 24 V DC I/O module power supply and processor, 4.5 A 3.3 V DC I/O module logic power supply
Maximum power dissipation in W 8.5 W
Status LED 1 LED (Green) rack voltage OK
Control Type RESET push-button cold restart
Electrical connection 1 connector 2 alarm relay, 1 connector 5 line supply, protective earth
Maximum cable distance between devices 32.8 ft (10 m) power supply cable copper 0.002 in² (1.5 mm²), 49.2 ft (15 m) power supply cable copper 0.004 in² (2.5 mm²)
Insulation resistance >= 10 MOhm primary/ground, >= 10 MOhm primary/secondary
Net Weight 0.75 lb(US) (0.34 kg)

Environment 11

Immunity to microbreaks 1 ms
Dielectric strength 1500 V primary/ground, 1500 V primary/secondary
Vibration resistance 3 gn
Shock resistance 30 gn
IP Degree of Protection IP20
Directives 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Ambient Air Temperature for Storage -40…185 °F (-40…85 °C)
Ambient Air Temperature for Operation 32…140 °F (0…60 °C)
Relative humidity 5…95 % 131 °F (55 °C) without condensation
Protective treatment TC
Operating altitude 0...6561.68 ft (0...2000 m), 2000...5000 m with derating factor
Show all 45 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number BMXCPS3020
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3595863908985

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin US
Shipping weight 0.34 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
