Modicon X80

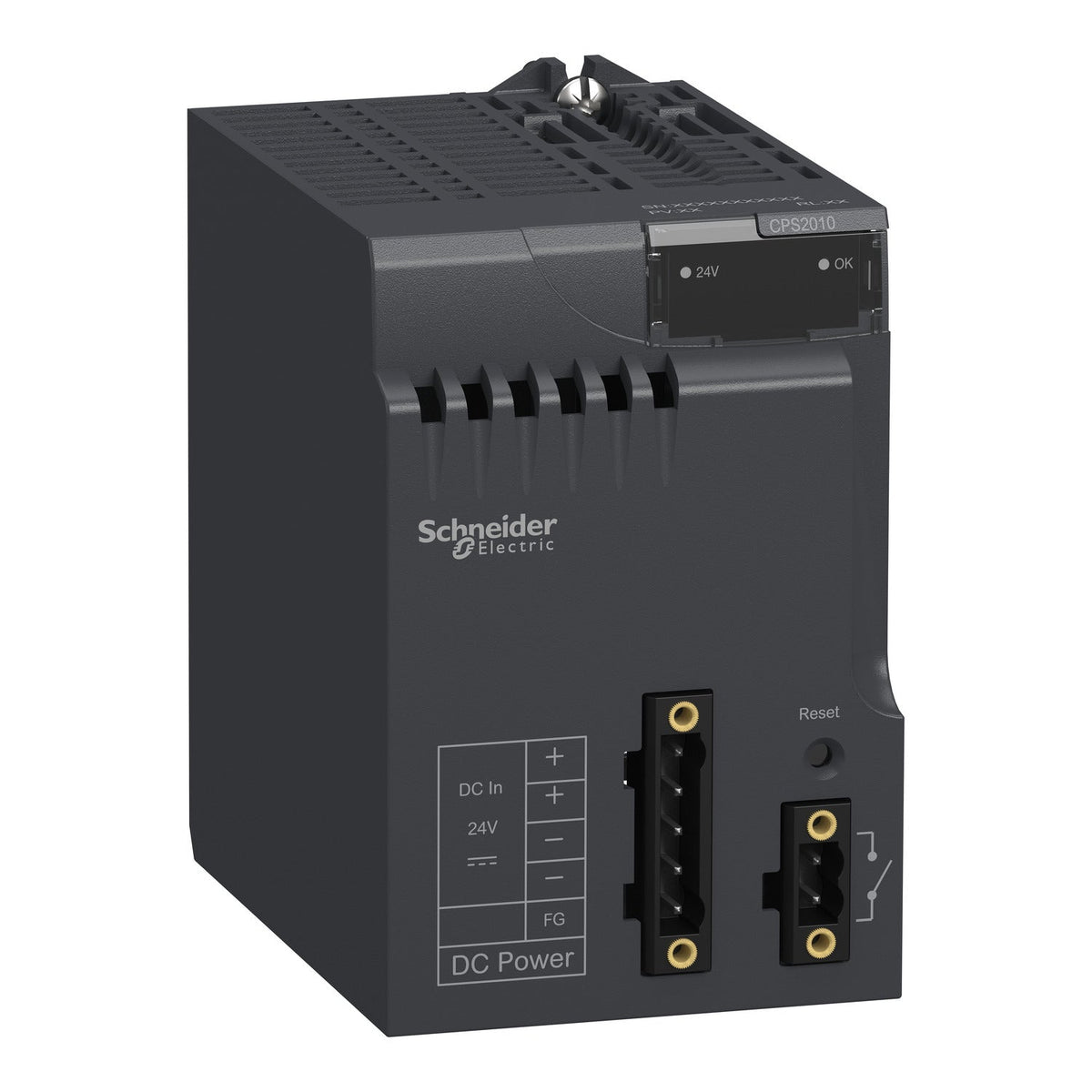

Schneider Electric BMXCPS2010 Modicon X80 24V DC 16.8W Power Supply Module PLC Power Supply

Schneider Electric BMXCPS2010 Modicon X80 power supply, isolated 24 V DC input, 16.8 W, IP20.

Range of Product
Modicon X80
Product or Component Type
Power supply module
backplane compatibility
Not compatible with BMEXBP..02
Primary Voltage
24 V isolated
Supply circuit type
DC
Secondary power
16.8 W 24 V DC I/O module power supply and processor, 8.3 W 3.3 V DC I/O module logic power supply
EAN
3595863909005
Description

About the BMXCPS2010

The Schneider Electric BMXCPS2010 is a Modicon X80 power supply module that converts an isolated 24 V DC primary supply into the secondary rails a Modicon M340 or M580 rack needs to run. It delivers 16.8 W on the 24 V DC I/O-and-processor rail and 8.3 W on the 3.3 V DC I/O logic rail, with a maximum power dissipation of 8.5 W.

Certifications & Standards

  • CE
  • RCM
  • CSA
  • EAC
  • UL
  • EN 61131-2
  • EN 61000-6-4
  • EN 61000-6-2
  • EN 61010-2-201

Selection Notes

The BMXCPS2010 powers a rack from an isolated 24 V DC control supply rather than an AC line, delivering 16.8 W on the 24 V DC I/O-and-processor rail — matching the AC-input variant's rating but without a mains transformer stage. Choose it over the wider-range DC variant in the range when the control supply is fixed at 24 V; that variant is needed only if the supply can sag toward 48 V, beyond this module's 18-31.2 V input window. Keep the 24 V DC power supply cable run within 20 m at 1.5 mm² (or 30 m at 2.5 mm²) to stay inside the module's voltage-drop tolerance.

Specification

Full specification

45 values · Last verified 30 Oct 2026

Main 6

Range of Product Modicon X80
Product or Component Type Power supply module
backplane compatibility Not compatible with BMEXBP..02
Primary Voltage 24 V isolated
Supply circuit type DC
Secondary power 16.8 W 24 V DC I/O module power supply and processor, 8.3 W 3.3 V DC I/O module logic power supply

Complementary 15

Primary voltage limit 18...31.2 V
Input current 1 A 24 V
Inrush current 30 A 24 V
I²t on activation 0.6 A².s 24 V
It on activation 0.15 A.s 24 V
MTBF reliability 4886000 H
Protection type Internal fuse not accessible primary circuit, Overload protection secondary circuit, 24 V sensor power supply, Overvoltage protection secondary circuit, 24 V sensor power supply, Short-circuit protection secondary circuit, 24 V sensor power supply
Current at secondary voltage 0.7 A 24 V DC I/O module power supply and processor, 2.5 A 3.3 V DC I/O module logic power supply
Maximum power dissipation in W 8.5 W
Status LED 1 LED (Green) rack voltage OK
Control Type RESET push-button cold restart
Electrical connection 1 connector 2 alarm relay, 1 connector 5 line supply, protective earth, 24 V DC input sensor
Maximum cable distance between devices 65.6 ft (20 m) power supply cable copper 0.002 in² (1.5 mm²), 98.4 ft (30 m) power supply cable copper 0.004 in² (2.5 mm²)
Insulation resistance >= 10 MOhm primary/ground, >= 10 MOhm primary/secondary
Net Weight 0.64 lb(US) (0.29 kg)

Environment 11

Immunity to microbreaks 1 ms
Dielectric strength 1500 V primary/ground, 1500 V primary/secondary
Vibration resistance 3 gn
Shock resistance 30 gn
IP Degree of Protection IP20
Directives 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Ambient Air Temperature for Storage -40…185 °F (-40…85 °C)
Ambient Air Temperature for Operation 32…140 °F (0…60 °C)
Relative humidity 5…95 % 131 °F (55 °C) without condensation
Protective treatment TC
Operating altitude 0...6561.68 ft (0...2000 m), 2000...5000 m with derating factor
Show all 45 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number BMXCPS2010
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3595863909005

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin US
Shipping weight 0.29 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
