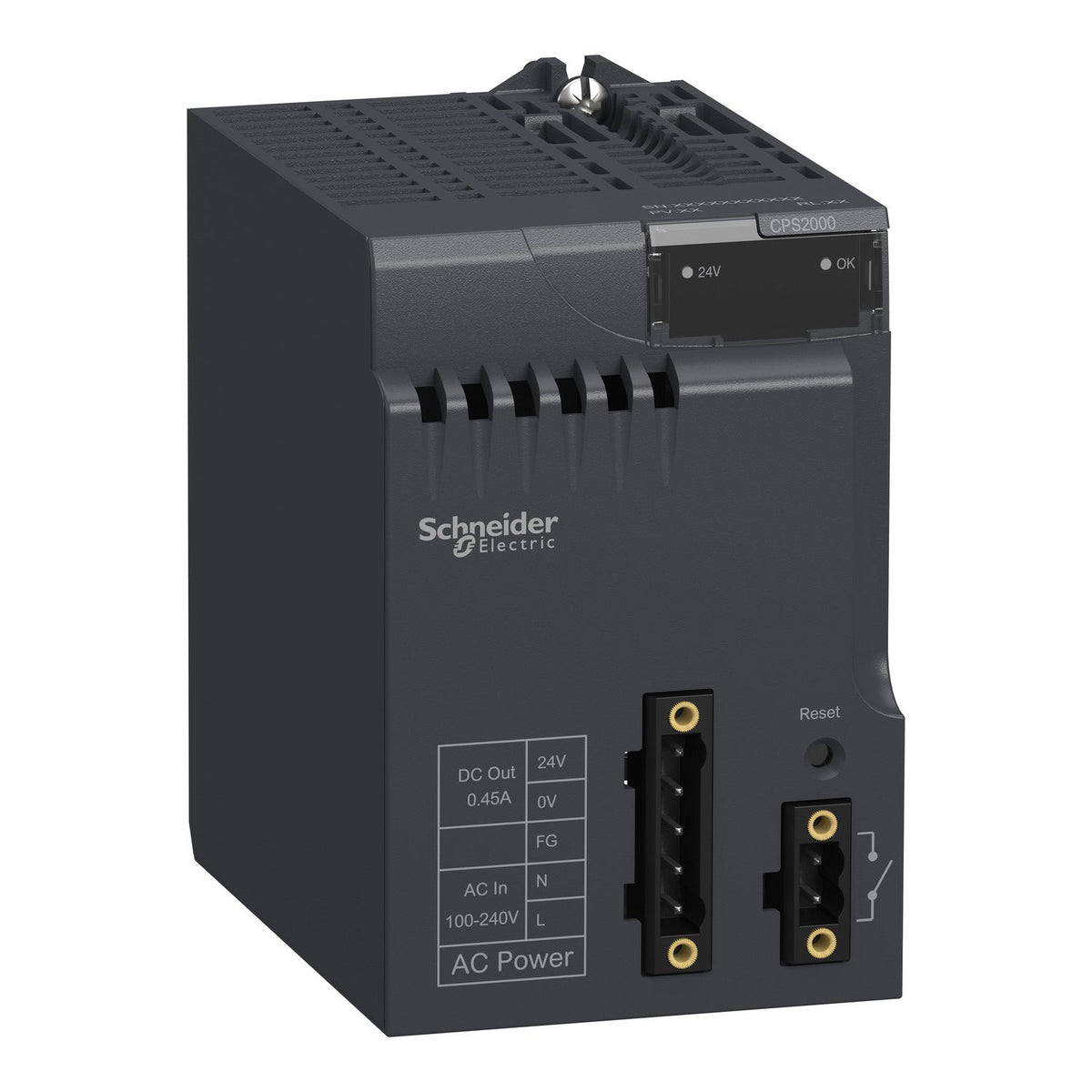

The Schneider Electric BMXCPS2000 is a Modicon X80 power supply module that converts a 100-240 V AC single-phase primary supply into the 24 V DC and 3.3 V DC secondary rails a Modicon M340 or M580 rack needs to run. It is rated 20 W nominal secondary power, with 16.8 W available on the 24 V DC I/O-and-processor rail and a maximum power dissipation of 8.5 W.
The BMXCPS2000 fits racks powered from a 100-240 V AC single-phase line where 16.8 W on the 24 V DC I/O-and-processor rail covers the connected module load; a higher-power AC-input variant in the same range exists for racks that need more on that rail. Racks fed from a 24 V DC or 24-48 V DC control supply instead use the DC-input variants in the range, not this AC-input module. The separate 2.5 A 3.3 V DC logic rail and 0.45 A 24 V DC sensor rail are isolated from the I/O/processor rail, so a fault on a field sensor supply does not collapse backplane logic power.
| Range of Product | Modicon X80 |
|---|---|
| Product or Component Type | Power supply module |
| backplane compatibility | Not compatible with BMEXBP..02 |
| Primary Voltage | 100...240 V |
| Supply circuit type | AC |
| Secondary power | 10.8 W 24 V DC sensor power supply, 16.8 W 24 V DC I/O module power supply and processor, 8.3 W 3.3 V DC I/O module logic power supply |
| Primary voltage limit | 85...264 V |
|---|---|
| Network Frequency | 50/60 Hz |
| Network frequency limits | 47…63 Hz |
| Apparent power | 0.07 kVA |
| Input current | 0.31 A 240 V, 0.61 A 115 V |
| Inrush current | 30 A 120 V, 60 A 240 V |
| I²t on activation | 12 A².s 240 V |
| It on activation | 0.06 A.s 240 V, 0.03 A.s 120 V |
| MTBF reliability | 4638000 H |
| Protection type | Internal fuse not accessible primary circuit, Overload protection secondary circuit, Overvoltage protection secondary circuit, Short-circuit protection secondary circuit |
| Current at secondary voltage | 0.45 A 24 V DC sensor power supply, 0.7 A 24 V DC I/O module power supply and processor, 2.5 A 3.3 V DC I/O module logic power supply |
| Maximum power dissipation in W | 8.5 W |
| Status LED | 1 LED (Green) rack voltage OK, 1 LED (Green) sensor voltage |
| Control Type | RESET push-button cold restart |
| Electrical connection | 1 connector 2 alarm relay, 1 connector 5 line supply, protective earth, 24 V DC input sensor |
| Insulation resistance | >= 100 MOhm primary/ground, >= 100 MOhm primary/secondary |
| Net Weight | 0.7 lb(US) (0.3 kg) |
| Immunity to microbreaks | 1 ms |
|---|---|
| Dielectric strength | 1500 V primary/secondary I/O module logic power supply, 1500 V primary/secondary I/O module power supply and processor, 2300 V primary/secondary sensor power supply, 1500 V primary/ground, 500 V 24 V sensor output/ground |
| Vibration resistance | 3 gn |
| Shock resistance | 30 gn |
| IP Degree of Protection | IP20 |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Relative humidity | 5…95 % 131 °F (55 °C) without condensation |
| Protective treatment | TC |
| Operating altitude | 0...6561.68 ft (0...2000 m), 2000...5000 m with derating factor |
| Part number | BMXCPS2000 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3595863908954 |
| Warranty (in months) | 18 |
|---|
| Country of origin | US |
|---|---|
| Shipping weight | 0.3 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe rated operational voltage of BMXCPS2000 is 100–240 V AC.
The tariff (HS) code on file for BMXCPS2000 is 850440.
The EAN (GTIN) of BMXCPS2000 is 3595863908954.
BMXCPS2000 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
